Power Steering Pressure Sensor
WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
- Reconnect all harness connectors disconnected.
- Start engine and let it idle.

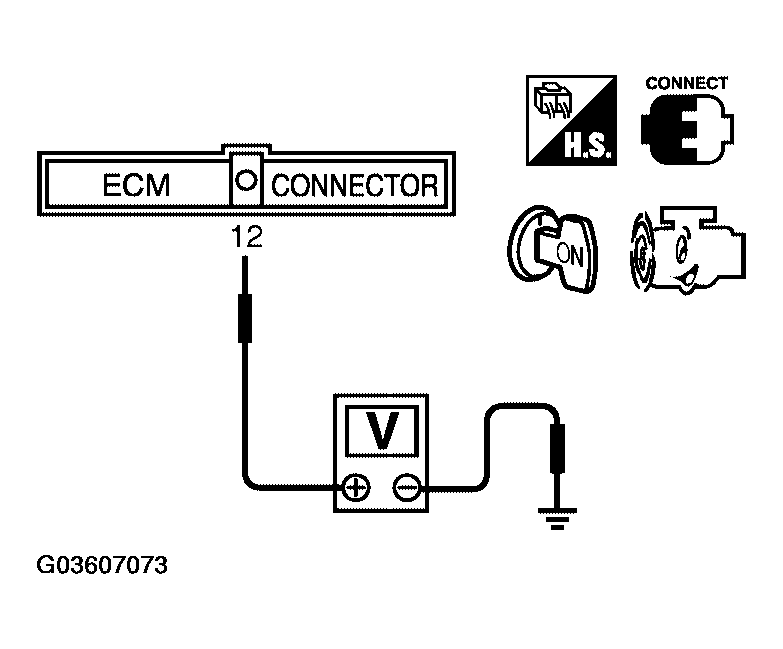

- Check voltage between ECM terminal 12 and ground under the following conditions.
VOLTAGE SPECIFICATIONS
| Condition |
Voltage |
| Steering wheel: Being turned. |
0.5 - 4.5V |
| Steering wheel: Not being turned. |
0.4 - 0.8V |
Courtesy of NISSAN MOTOR CO., U.S.A.
