Throttle Position Sensor

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Reconnect all harness connectors disconnected.
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Turn ignition switch ON
Set selector lever to D position.

Check voltage between ECM terminals 50 (TP sensor 1 signal), 69 (TP sensor 2 signal) and ground under the following conditions.

SERVICE DATA AND SPECIFICATIONS

Terminal	Accelerator pedal	Voltage
50 (Throttle position sensor 1)	Fully released	More than 0.36V
50 (Throttle position sensor 1)	Fully depressed	Less than 4.75V
69 (Throttle position sensor 2)	Fully released	Less than 4.75V
69 (Throttle position sensor 2)	Fully depressed	More than 0.36V

If NG, replace electric throttle control actuator and go to the next step.
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Perform "IDLE AIR VOLUME LEARNING ".

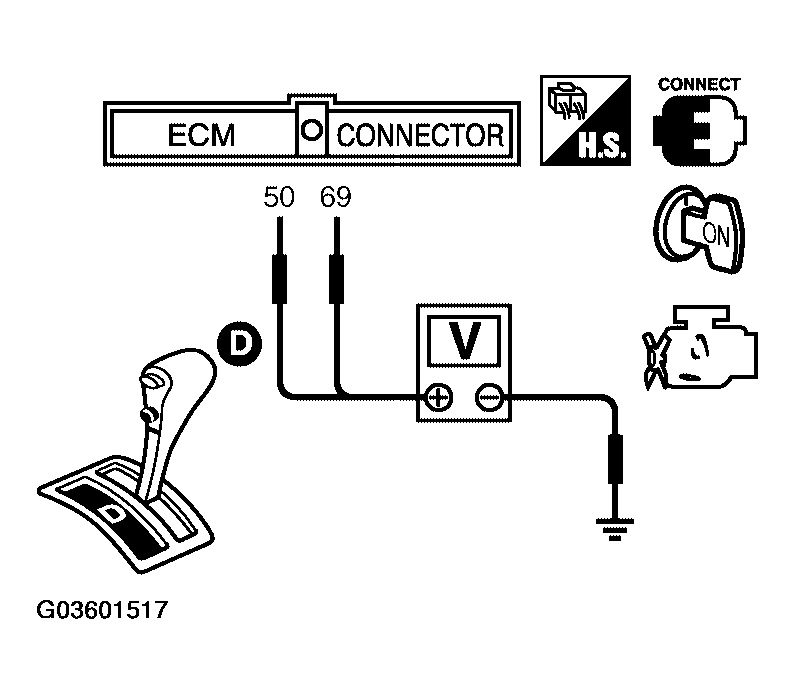

Fig 1: Checking Voltage Between ECM Terminals 50, 69 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
