With Consult-II

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Start engine and let it idle for at least 70 seconds.
  4. Select "PURG FLOW P0441" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II.
  5. Touch "START".

    If "COMPLETED" is displayed, go to step 7.

  6. When the following conditions are met, "TESTING" will be displayed on the CONSULT-II screen. Maintain the conditions continuously until "TESTING" changes to "COMPLETED". (It will take at least 35 seconds.)
    SELECTOR LEVER REFERENCE

    Selector lever Suitable position
    VHCL SPEED SE 32 - 120 km/h (20 - 75 MPH)
    ENG SPEED 500 - 3, 000 RPM
    B/FUEL SCHDL 1.3 - 9.0 msec
    COOLAN TEMP/S 70 - 100°C(158-212°F)

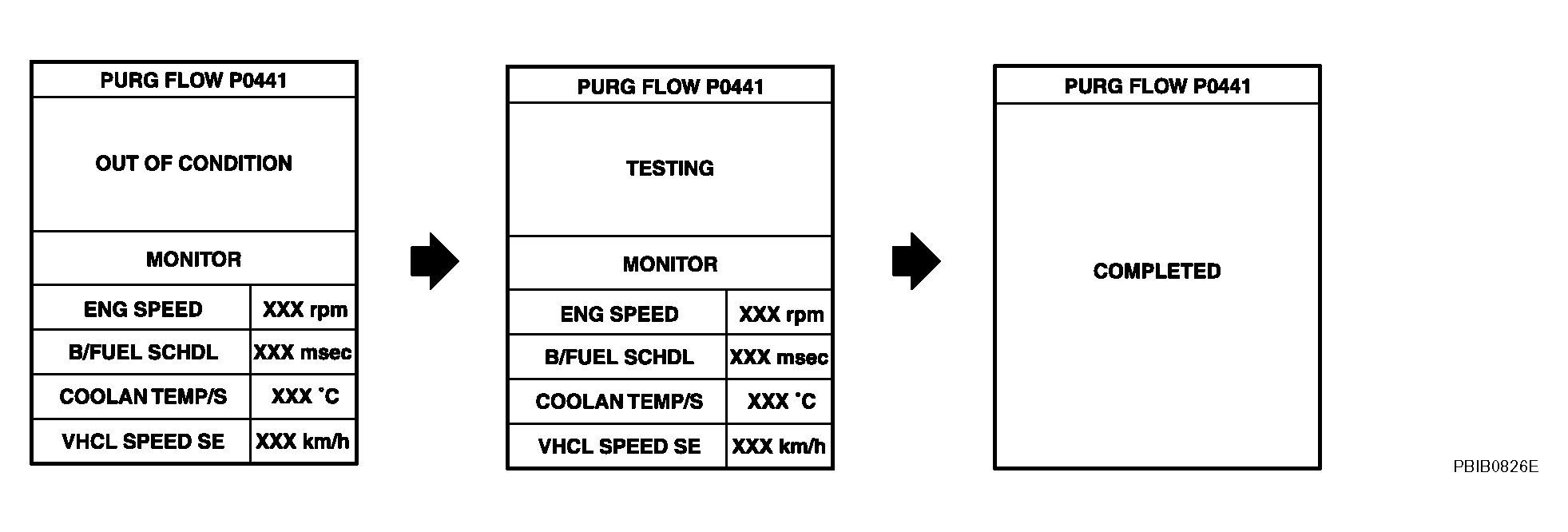

    Fig 1: CONSULT-II Display - DTC WORK SUPPORT
    G04202948Courtesy of NISSAN MOTOR CO., U.S.A.

    If "TESTING" is not changed for a long time, retry from step 2  .

  7. Make sure that "OK" is displayed after touching "SELF-DIAG RESULTS". If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE ".
