CHECK COOLING FAN (CRANKSHAFT DRIVEN) OPERATION
1. Start engine and let it idle.
2. Make sure that cooling fan (crankshaft driven) operates normally.
OK or NG

OK (With CONSULT-II) : GO TO 2.

OK (Without CONSULT-II) : GO TO 3.

NG : Check cooling fan (crankshaft driven). Refer to "REMOVAL AND INSTALLATION (CRANKSHAFT DRIVEN TYPE) ".
CHECK COOLING FAN OPERATION
WITH CONSULT-II
1. Start engine and let it idle.
2. Select "COOLING FAN" in "ACTIVE TEST" mode with CONSULT-II.
3. Make sure that cooling fan operates at each speed (LOW/HI).
OK or NG

OK : GO TO 4.

NG : Check cooling fan control circuit. (Go to "PROCEDURE A ".)

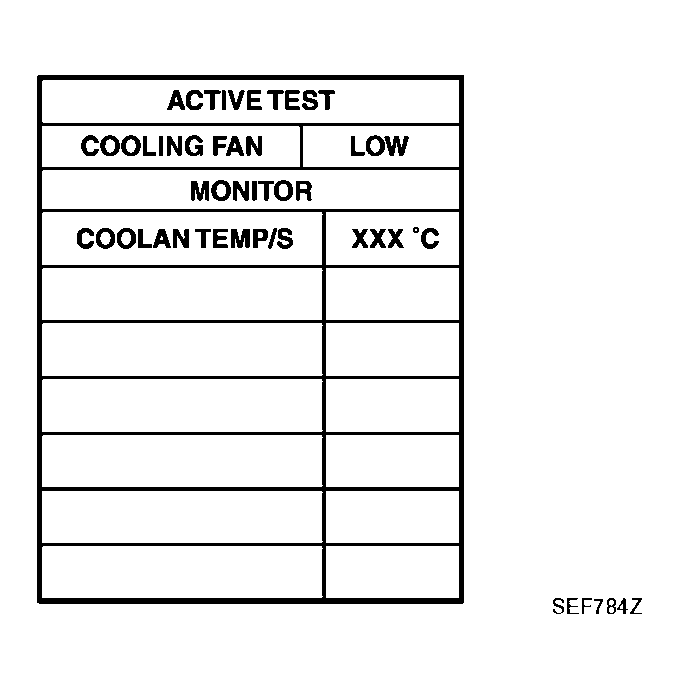

Fig 1: CONSULT-II Display - ACTIVE TEST
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK COOLING FAN OPERATION
Without CONSULT-II
1. Perform IPDM E/R auto active test and check cooling fan motors operation, refer to "AUTO ACTIVE TEST ".
2. Make sure that cooling fan operates at each speed (Low/High).
OK or NG

OK : GO TO 4.

NG : Check cooling fan control circuit. (Go to "PROCEDURE A ".)
CHECK COOLING SYSTEM FOR LEAK
Refer to "CHECKING COOLING SYSTEM FOR LEAKS ".

OK or NG

OK : GO TO 5.

NG : Check the following for leak. Refer to "CHECKING COOLING SYSTEM FOR LEAKS ".
- Hose
- Radiator
- Radiator cap
- Reservoir tank
- Water pump
CHECK RESERVOIR TANK CAP
Refer to "CHECKING RESERVOIR CAP ".

OK or NG

OK : GO TO 6.

NG : Replace reservoir tank cap.
CHECK COMPONENT PARTS
Check the following.
- Thermostat. Refer to "WATER INLET AND THERMOSTAT ASSEMBLY ".
- Engine coolant temperature sensor. Refer to "COMPONENT INSPECTION ".
OK or NG

OK : GO TO 7.

NG : Replace malfunctioning component.
CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to "MAIN 12 CAUSES ARE OVERHEATING ".

: INSPECTION END
