ASCD Steering Switch

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 17 and 18 with pushing each switch.
    RESISTANCE REFERENCE

    Switch Condition Resistance [Ω]
    MAIN switch Pressed Approx. 0
    Released Approx. 4, 000
    CANCEL switch Pressed Approx. 250
    Released Approx. 4, 000
    RESUME/ACCELERATE switch Pressed Approx. 1, 480
    Released Approx. 4, 000
    SET/COAST switch Pressed Approx. 660
    Released Approx. 4, 000

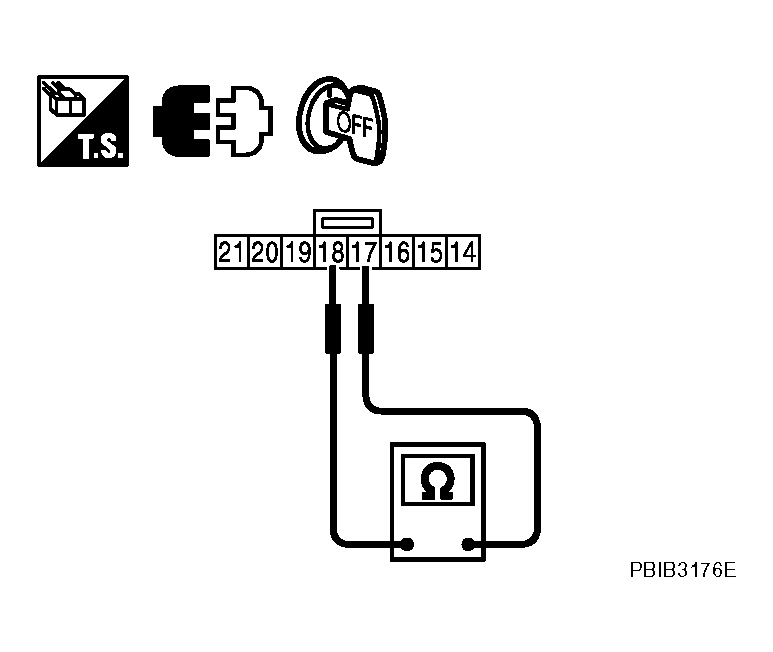

    Fig 1: Identifying Continuity Between Combination Switch (Spiral Cable) Terminals 17 And 18
    G04203149Courtesy of NISSAN MOTOR CO., U.S.A.
