Inspection Procedure

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect GST to data link connector, which is located under LH dash panel near the fuse box cover.
  3. Turn ignition switch ON.

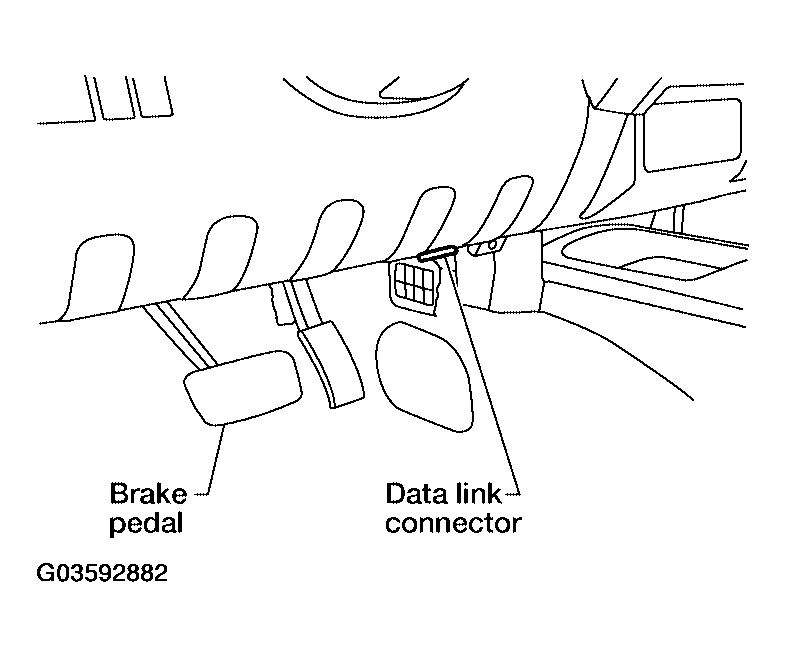

    Fig 1: Identifying Data Link Connector
    G03592882Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Enter the program according to instruction on the screen or in the operation manual.

    (*: Regarding GST screens in this section, sample screens are shown.)

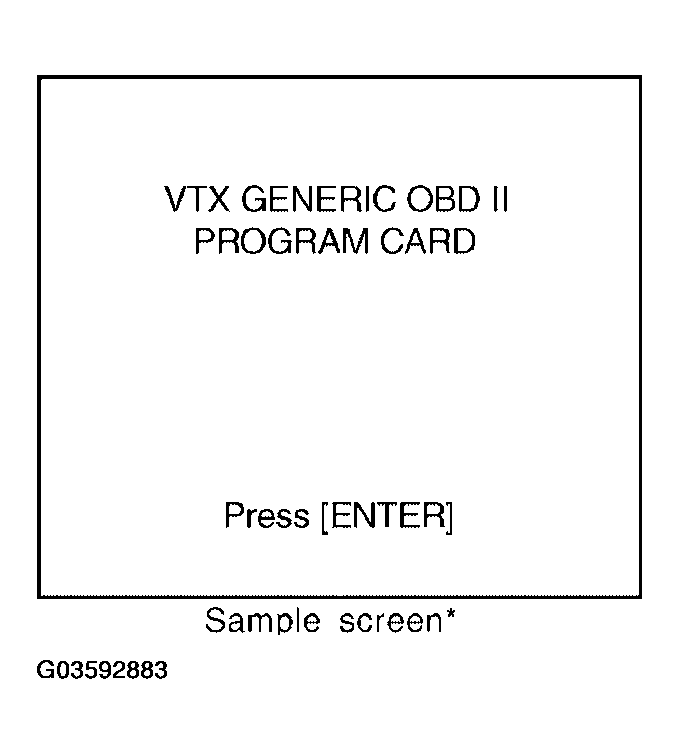

    Fig 2: GST Screens - Example Display
    G03592883Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Perform each diagnostic service according to each service procedure.

    For further information, see the GST Operation Manual of the tool maker  .

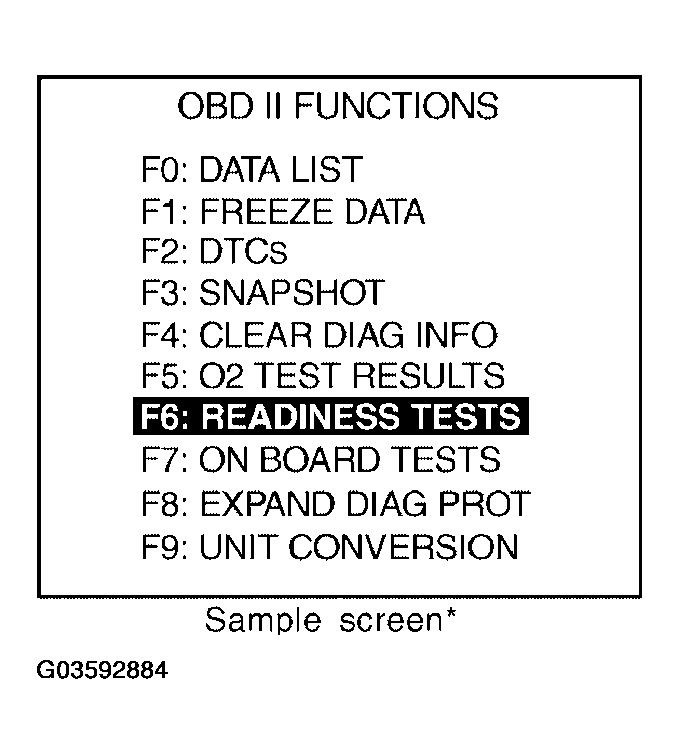

    Fig 3: GST Operation Manual - Example Display
    G03592884Courtesy of NISSAN MOTOR CO., U.S.A.
