Section 235 (Specifications & Procedures): Specifications

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Use illustrations for front and rear wheel alignment specifications. For coupe models, see Fig 1 and Fig 2 . For sedan models, see Fig 3 and Fig 4 .

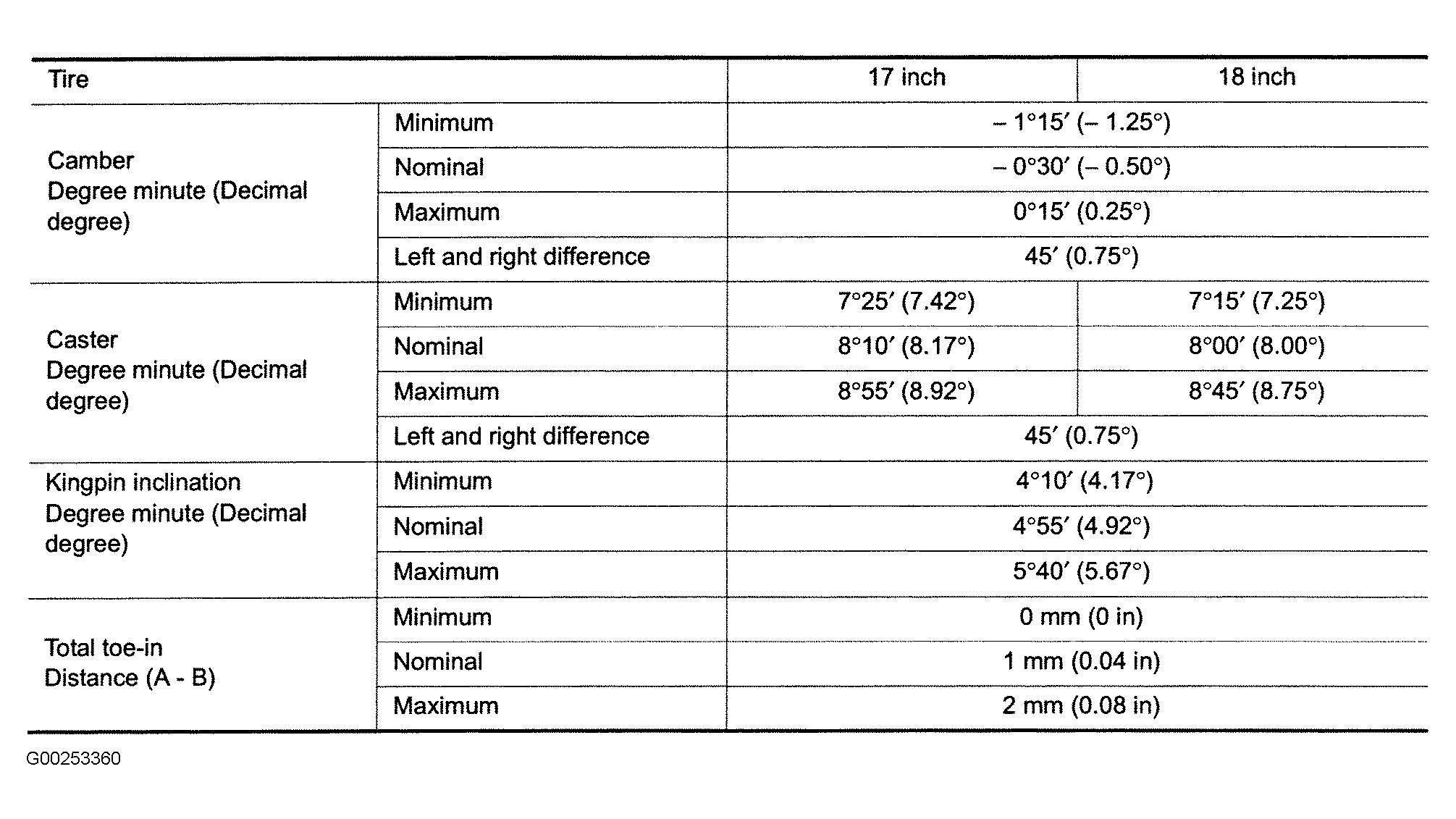

Fig 1: Front Wheel Alignment Specifications (G35 - Coupe)

Courtesy of NISSAN MOTOR CO., U.S.A.

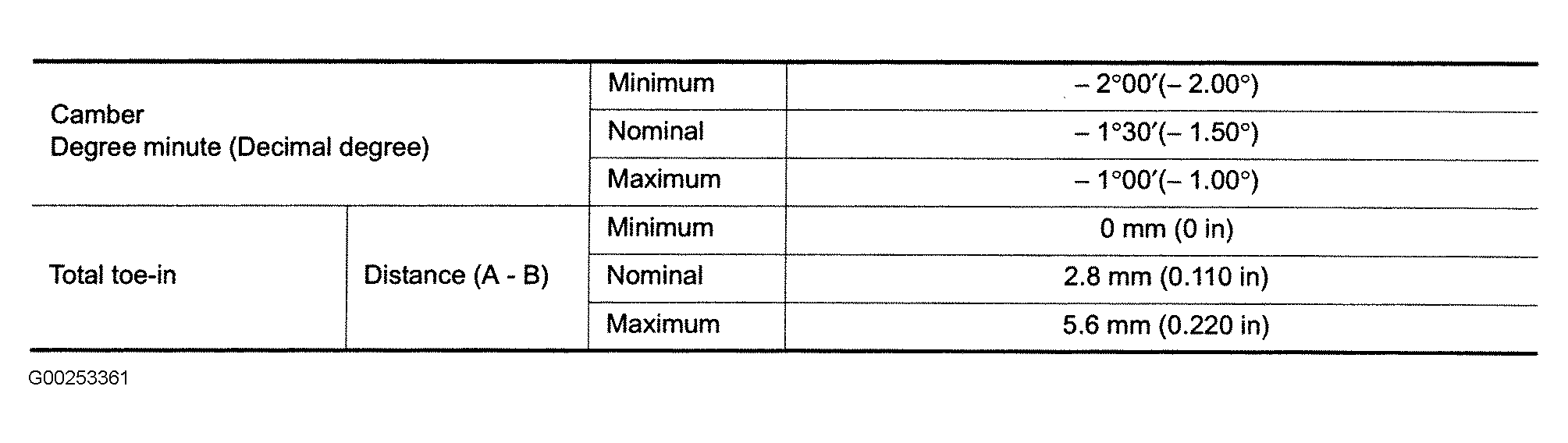

Fig 2: Rear Wheel Alignment Specifications (G35 - Coupe)

Courtesy of NISSAN MOTOR CO., U.S.A.

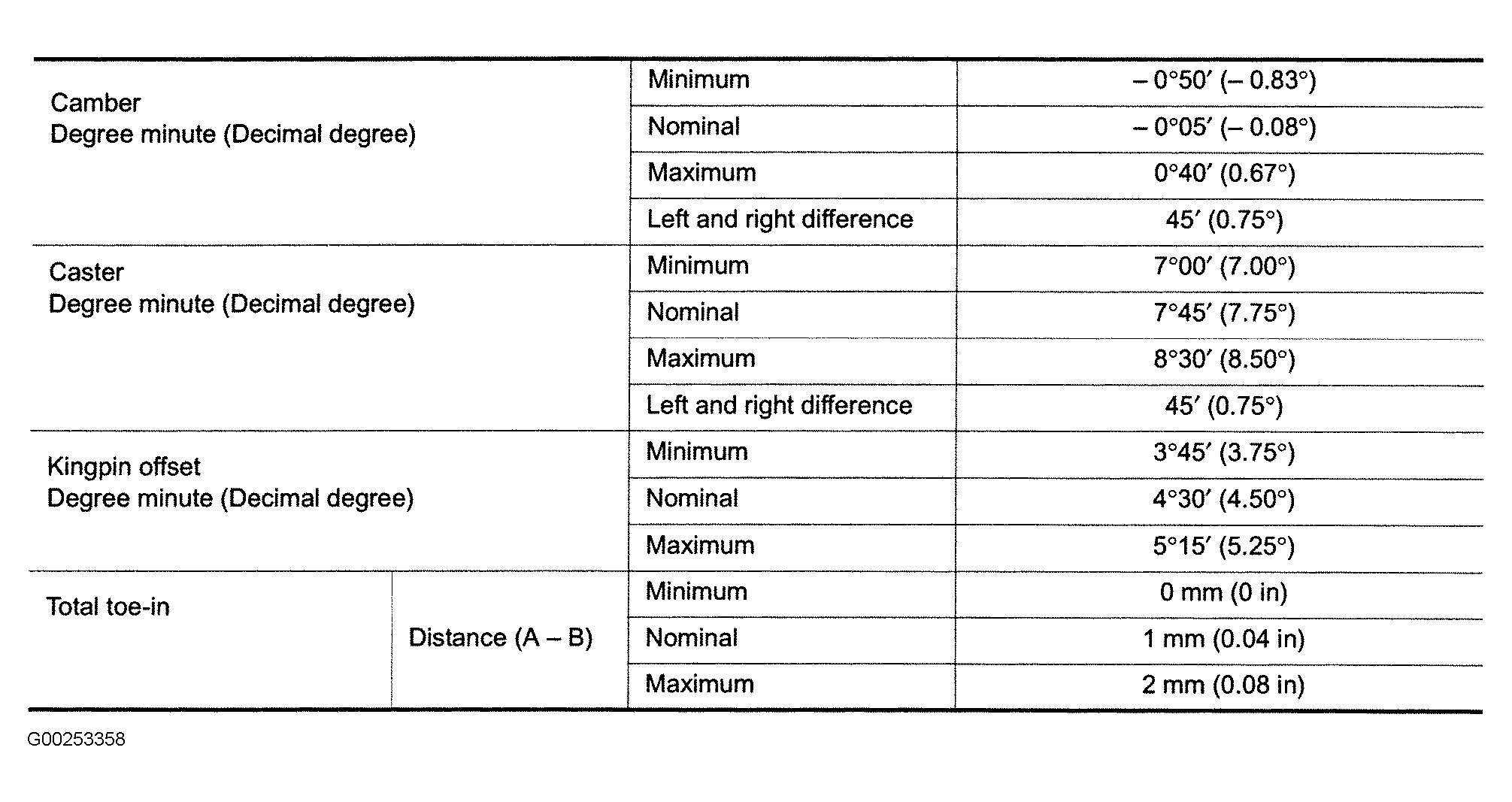

Fig 3: Front Wheel Alignment Specifications (G35 - Sedan)

Courtesy of NISSAN MOTOR CO., U.S.A.

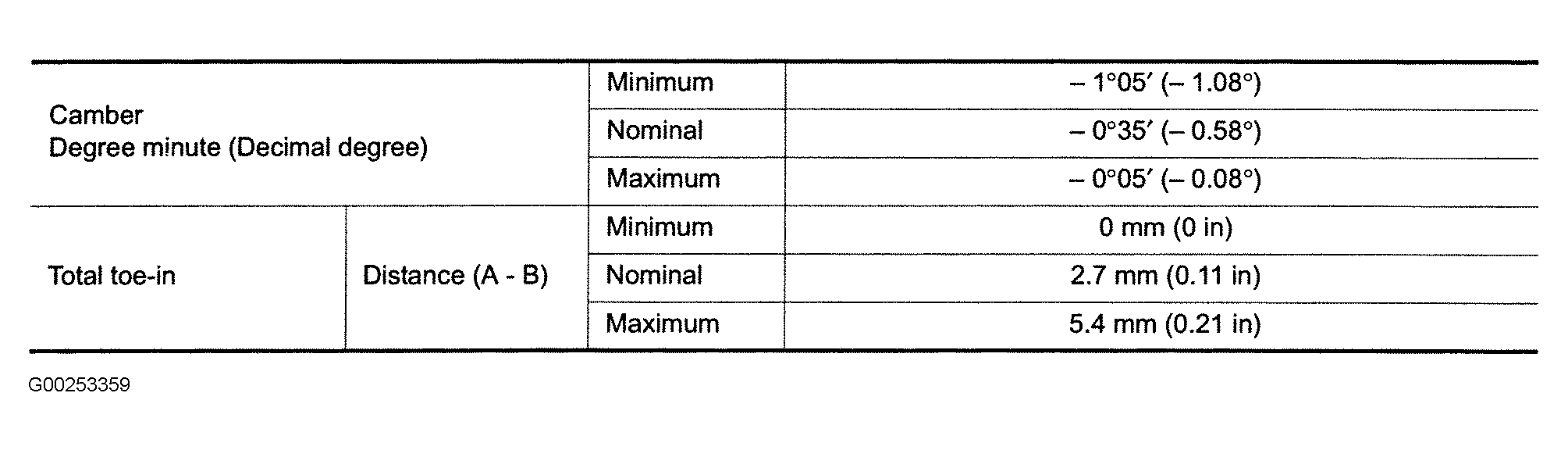

Fig 4: Rear Wheel Alignment Specifications (G35 - Sedan)

Courtesy of NISSAN MOTOR CO., U.S.A.
