Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

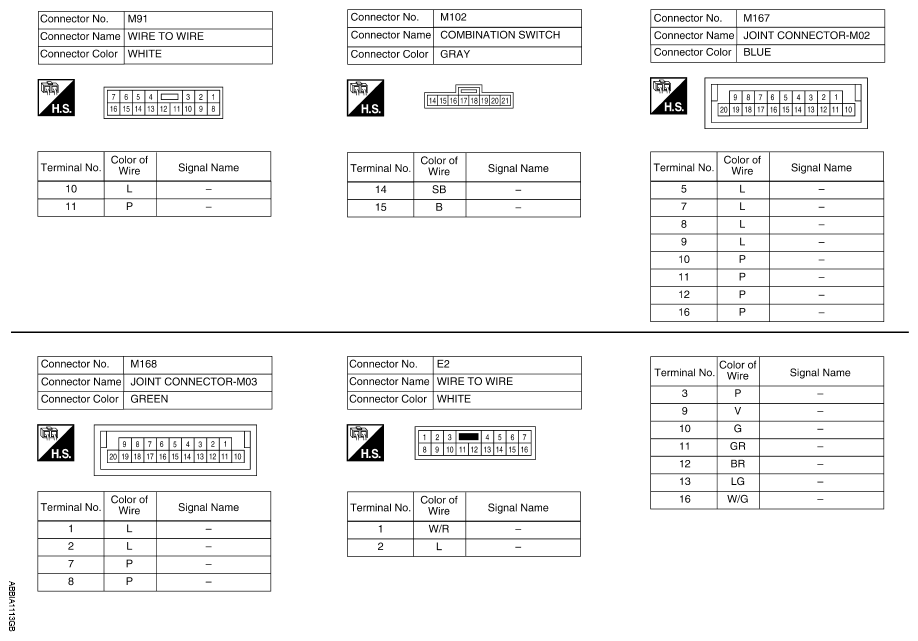

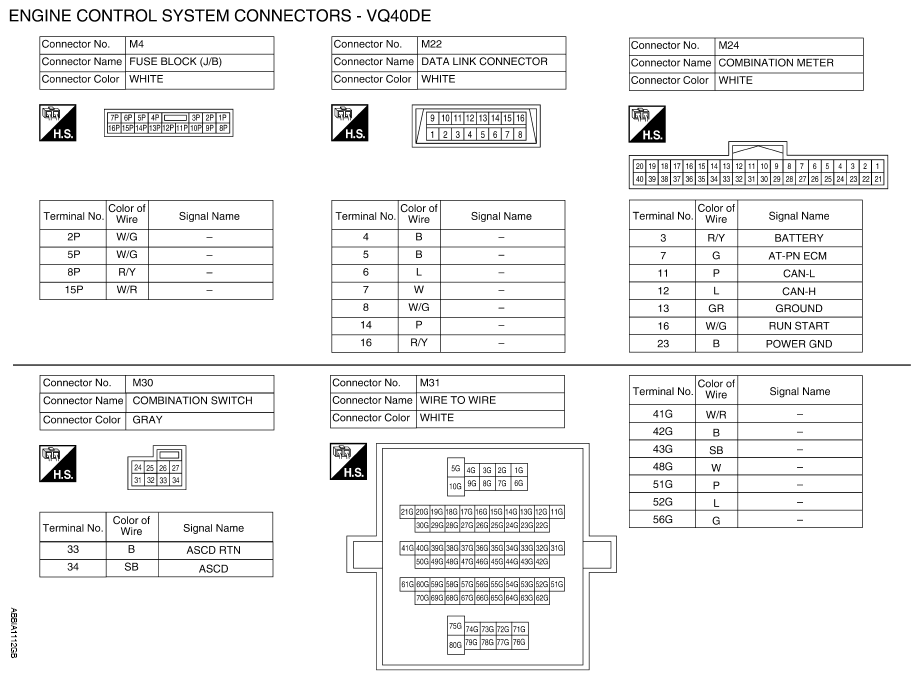

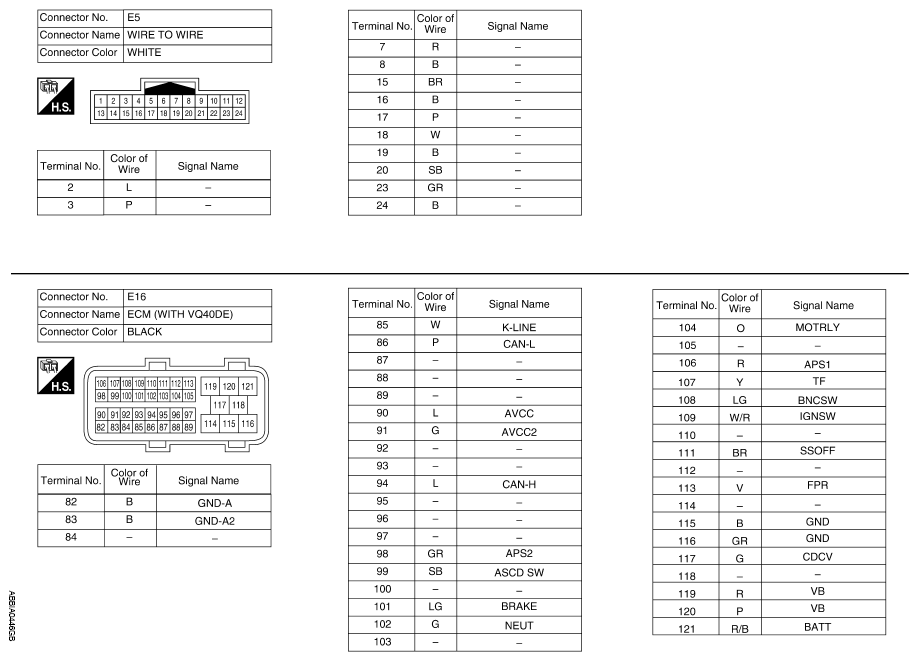

Fig 1: Identifying Engine Control System Connectors VQ40DE (1 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

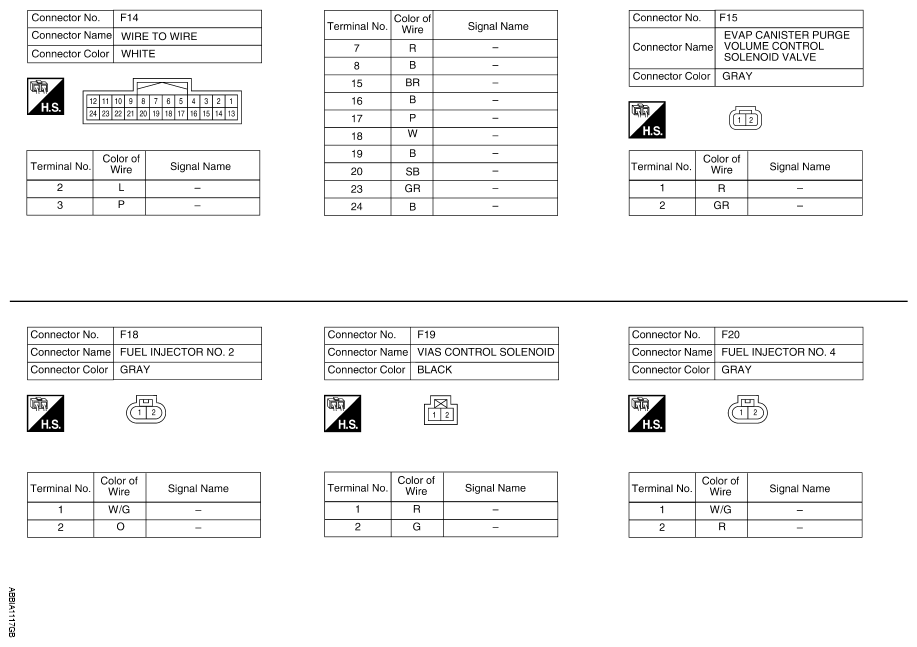

Fig 2: Identifying Engine Control System Connectors VQ40DE (2 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

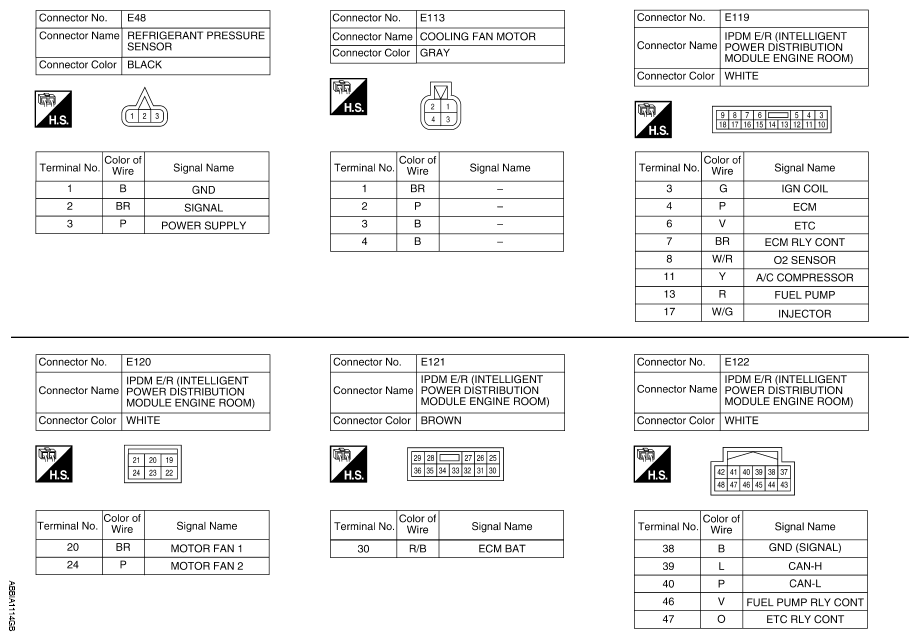

Fig 3: Identifying Engine Control System Connectors VQ40DE (3 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

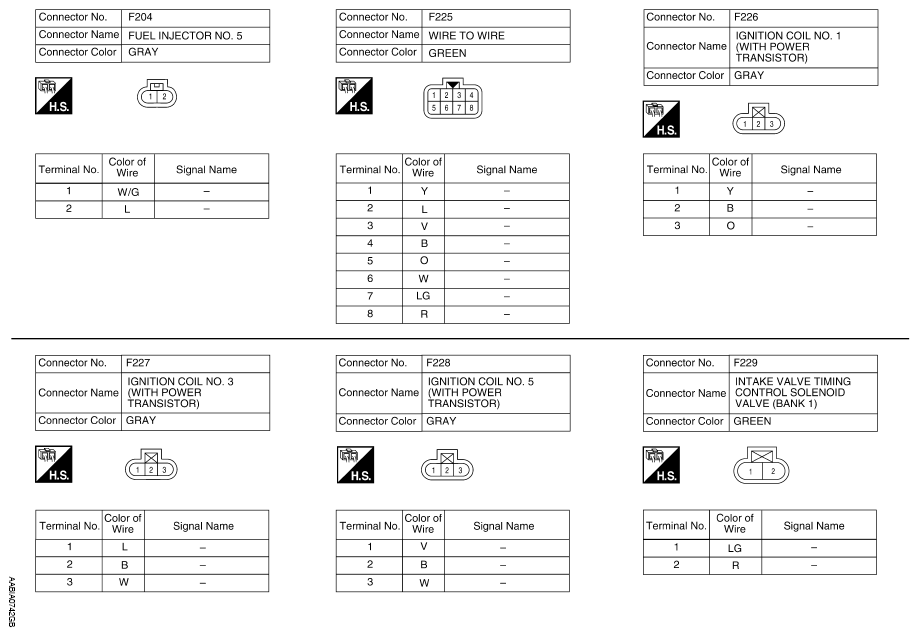

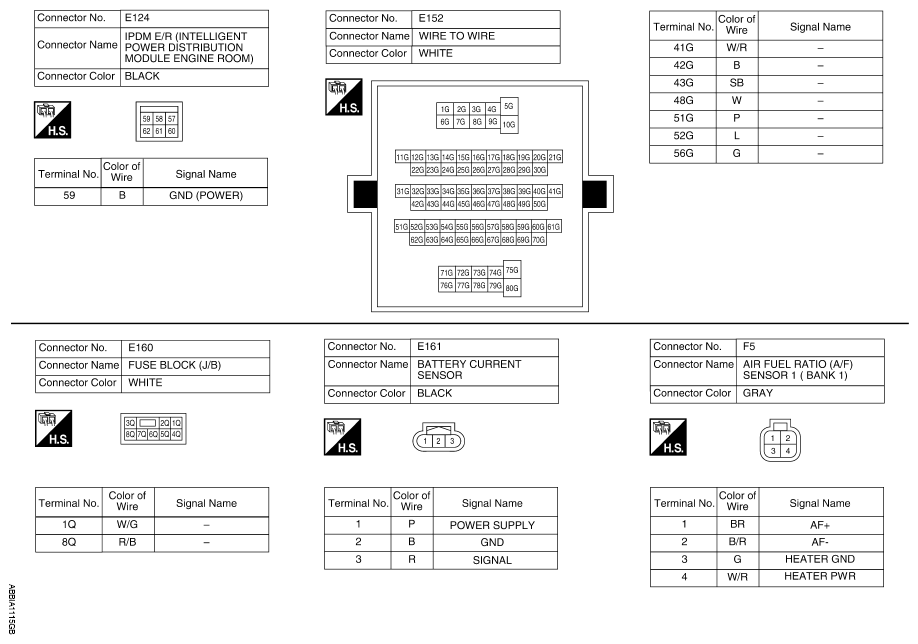

Fig 4: Identifying Engine Control System Connectors VQ40DE (4 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

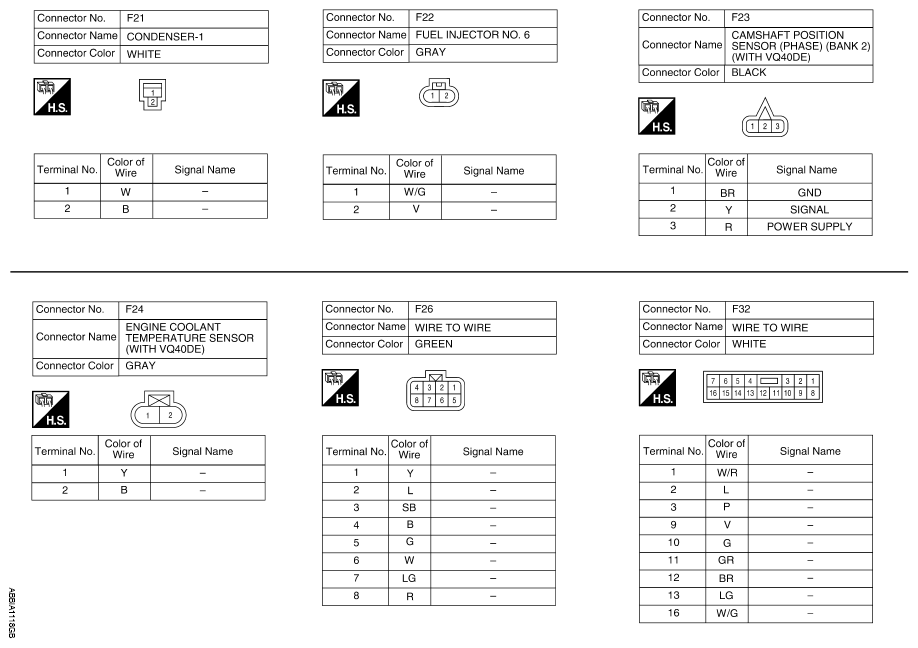

Fig 5: Identifying Engine Control System Connectors VQ40DE (5 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

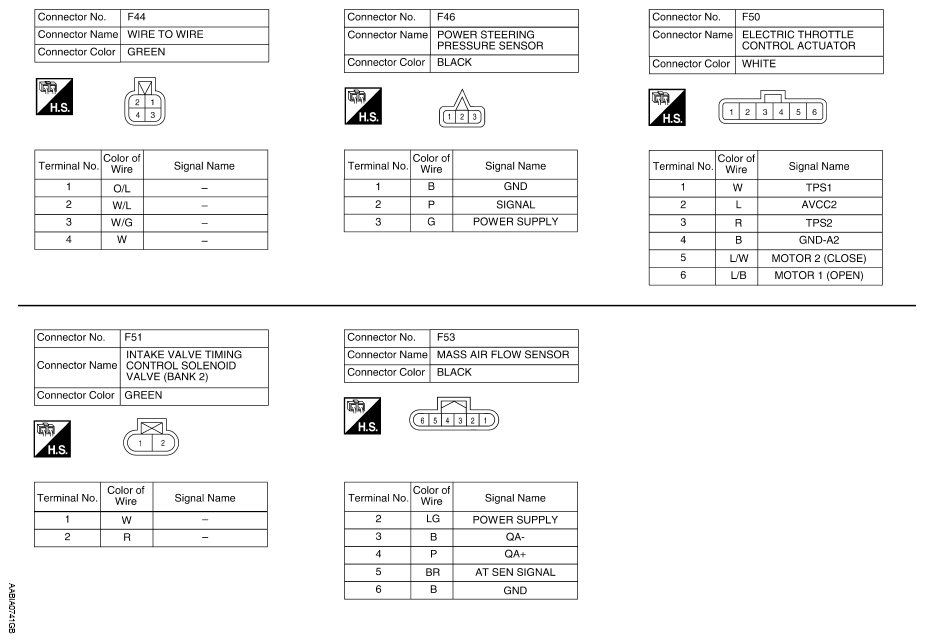

Fig 6: Identifying Engine Control System Connectors VQ40DE (6 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

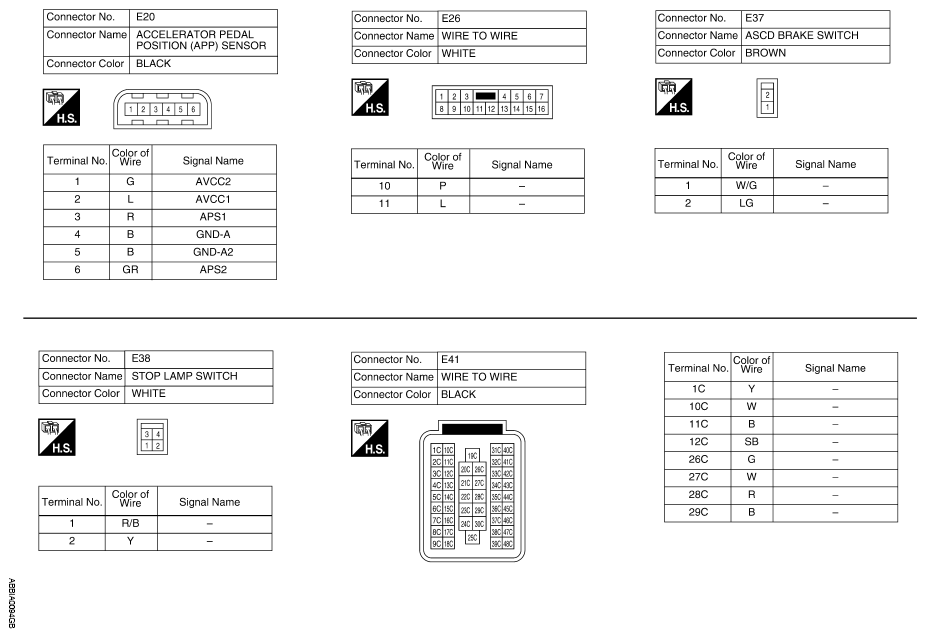

Fig 7: Identifying Engine Control System Connectors VQ40DE (7 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

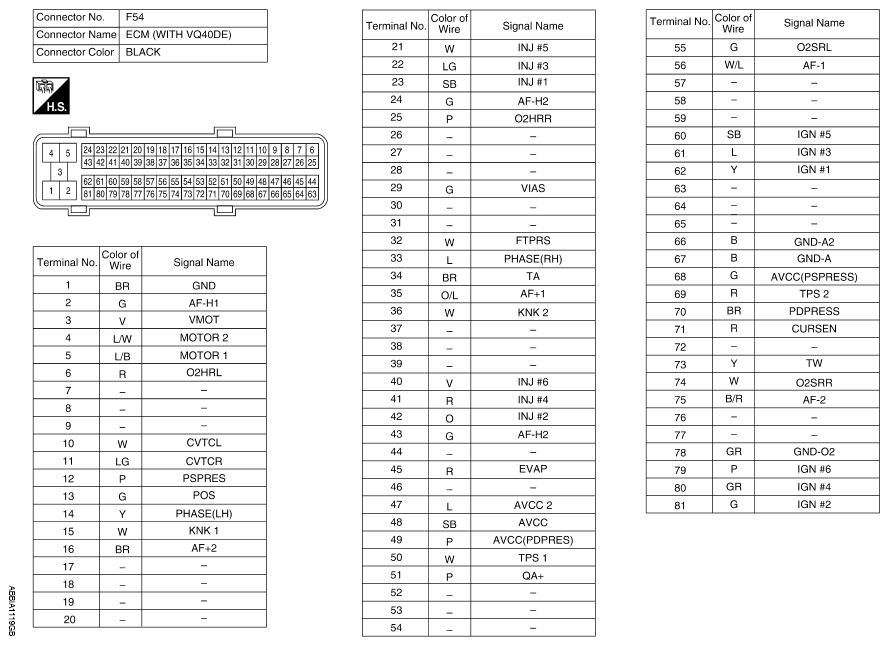

Fig 8: Identifying Engine Control System Connectors VQ40DE (8 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Engine Control System Connectors VQ40DE (9 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

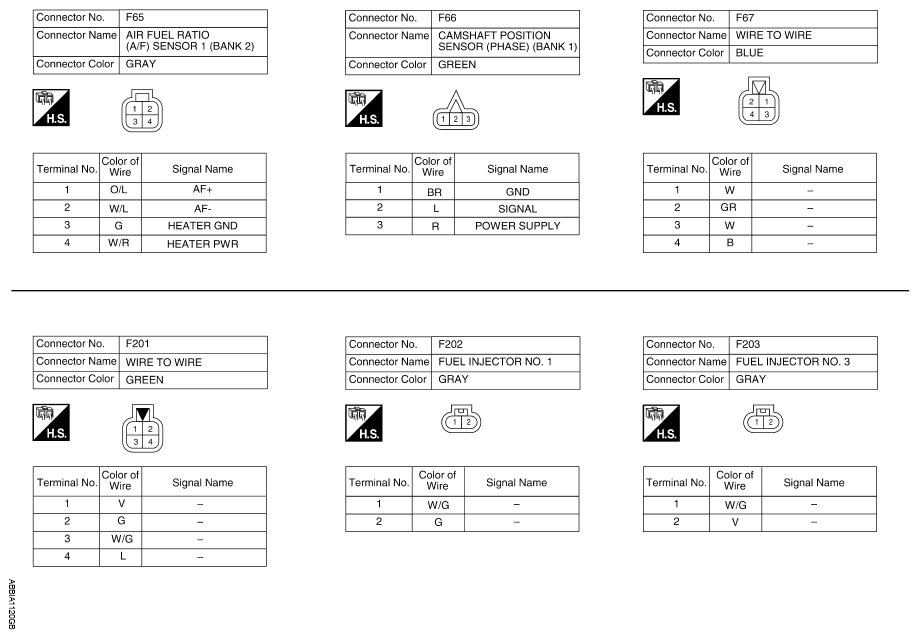

Fig 10: Identifying Engine Control System Connectors VQ40DE (10 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Engine Control System Connectors VQ40DE (11 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

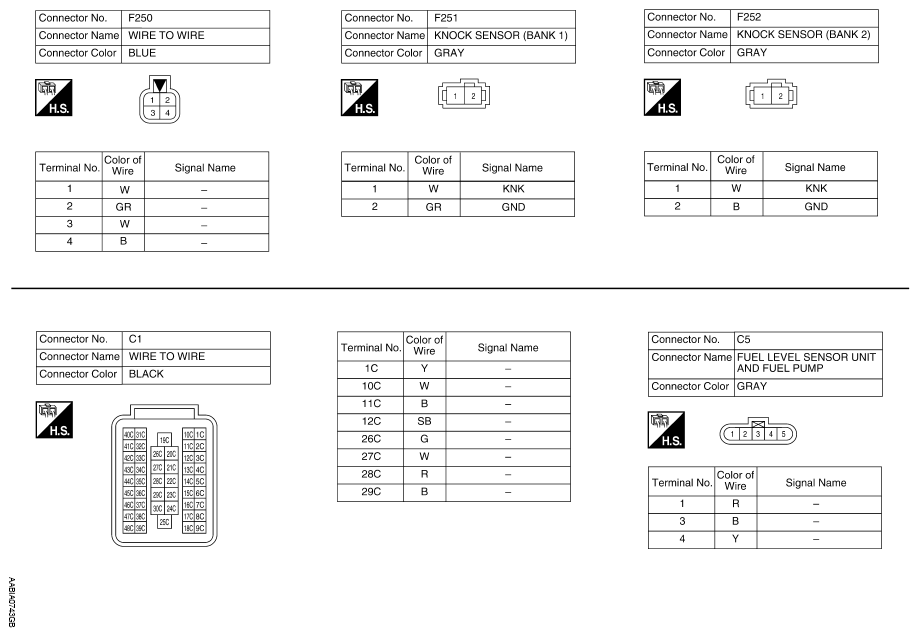

Fig 12: Identifying Engine Control System Connectors VQ40DE (12 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

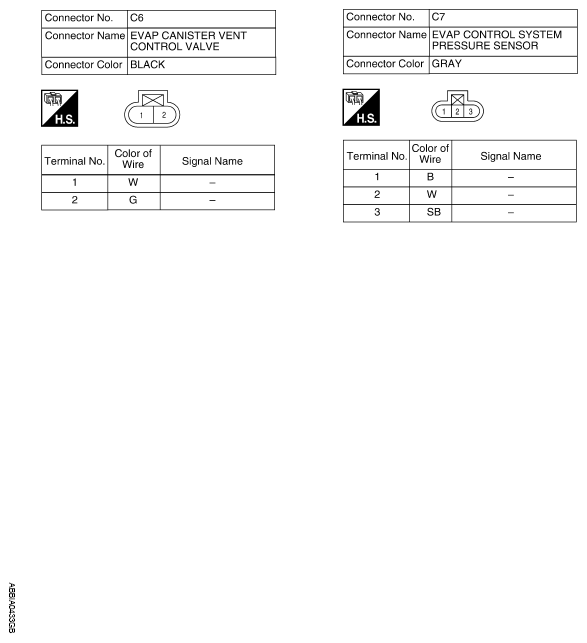

Fig 13: Identifying Engine Control System Connectors VQ40DE (13 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Engine Control System Connectors VQ40DE (14 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Engine Control System Connectors VQ40DE (15 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.
