Camber And Caster

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Measure camber and caster of both the right and left wheels with a suitable alignment gauge and adjust as necessary to specification.
- Camber: Refer to SPECIFICATIONS .

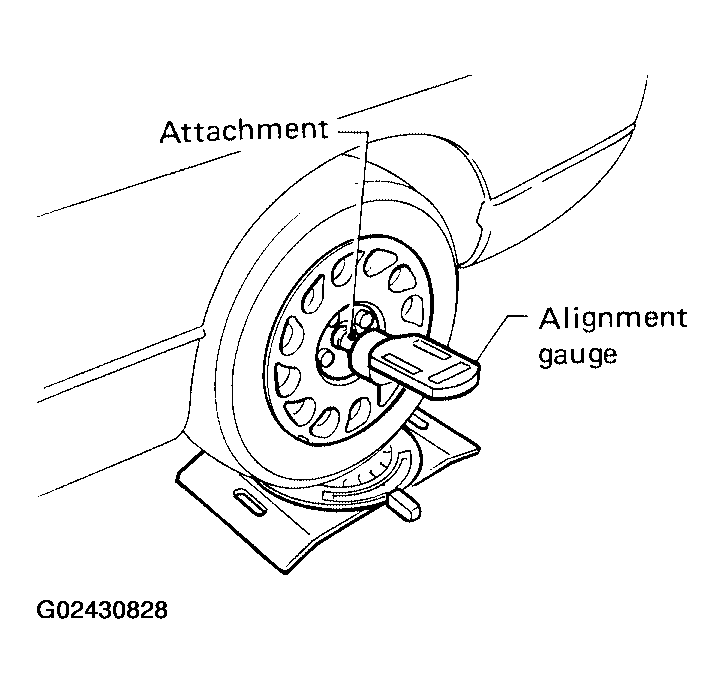

Fig 1: Measuring Camber And Caster Using Alignment Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.
If outside of the specified value, adjust camber and caster using the adjusting bolts in the front lower link.
CAUTION: After adjusting the camber then check the toe-in.

NOTE: Camber changes about 3' (0.05°) minutes with each graduation of one adjusting bolt. Refer to table below for examples of lower link adjusting bolt effect on camber and caster.

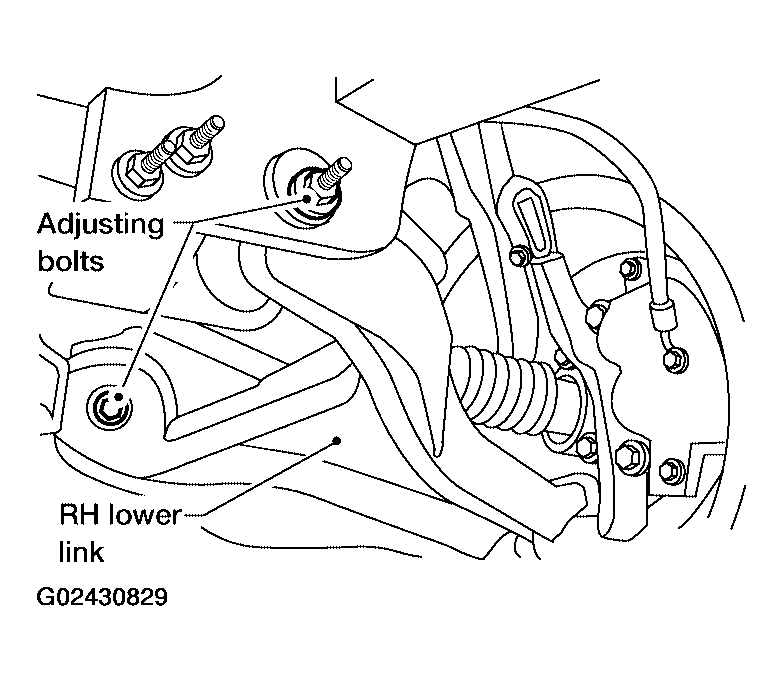

Fig 2: Identifying Adjusting Bolt On Lower Link
Courtesy of NISSAN MOTOR CO., U.S.A.

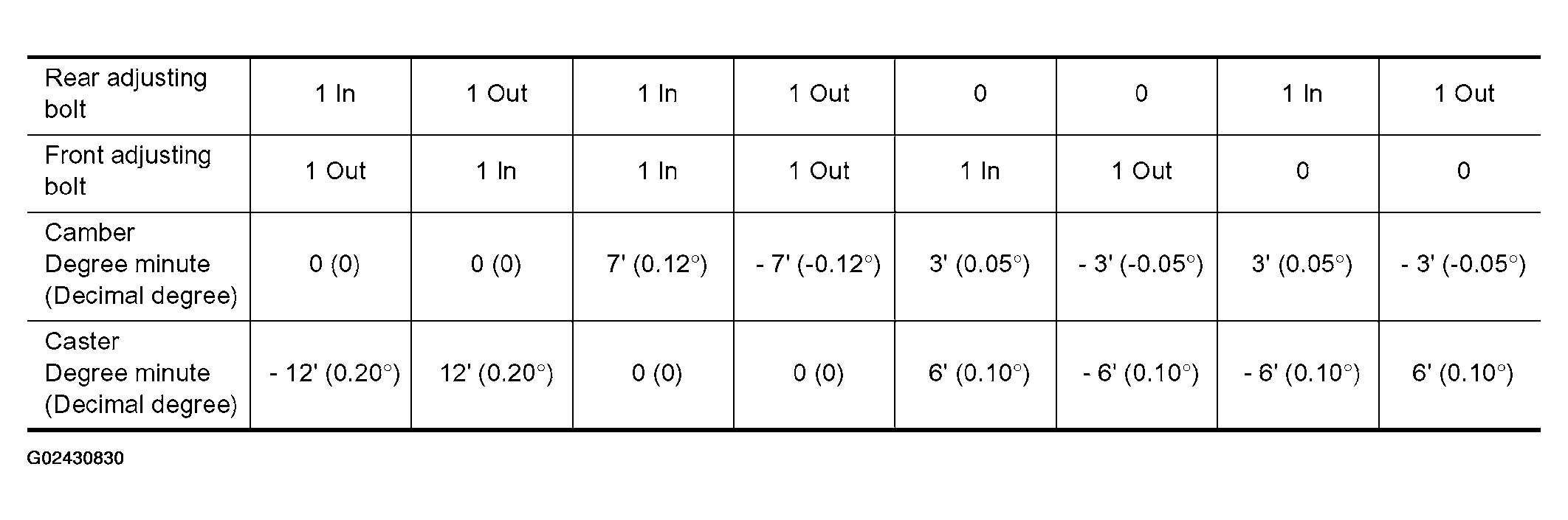

Fig 3: Lower Link Adjusting Bolt Reference Chart For Effect On Camber And Caster
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten the adjusting bolt nuts to specification.
