Front Wheel Turning Angle
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

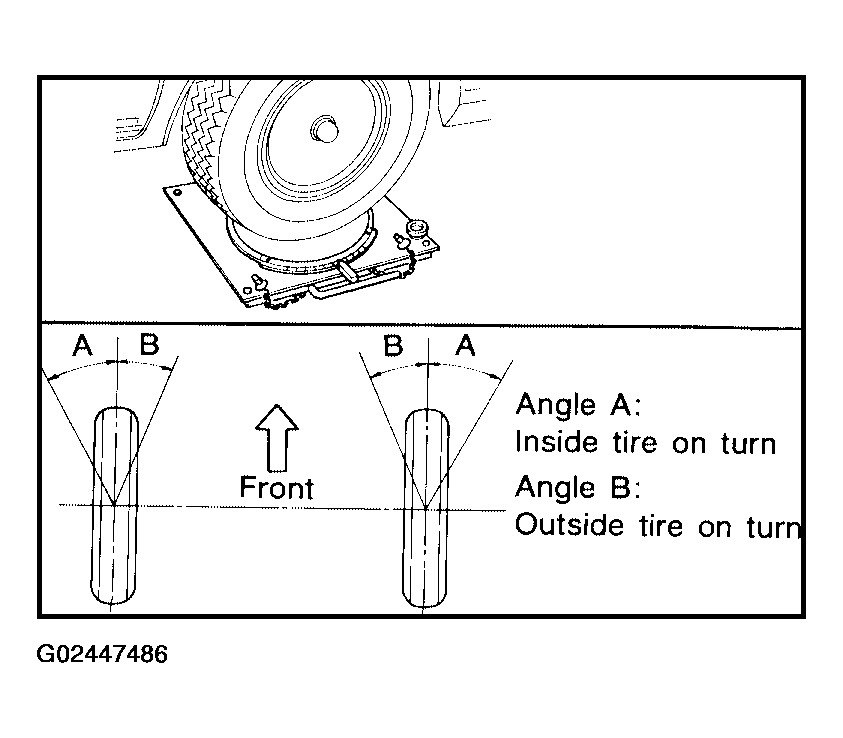

- Set the front wheels in a straight-ahead position. Then move the vehicle forward until the front wheels rest on the turning radius gauge as shown.
- Rotate steering wheel all the way right and left; measure the turning angles "A" and "B" as shown.
- Wheel turning angle (full turn) : Refer to SPECIFICATIONS .
