CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

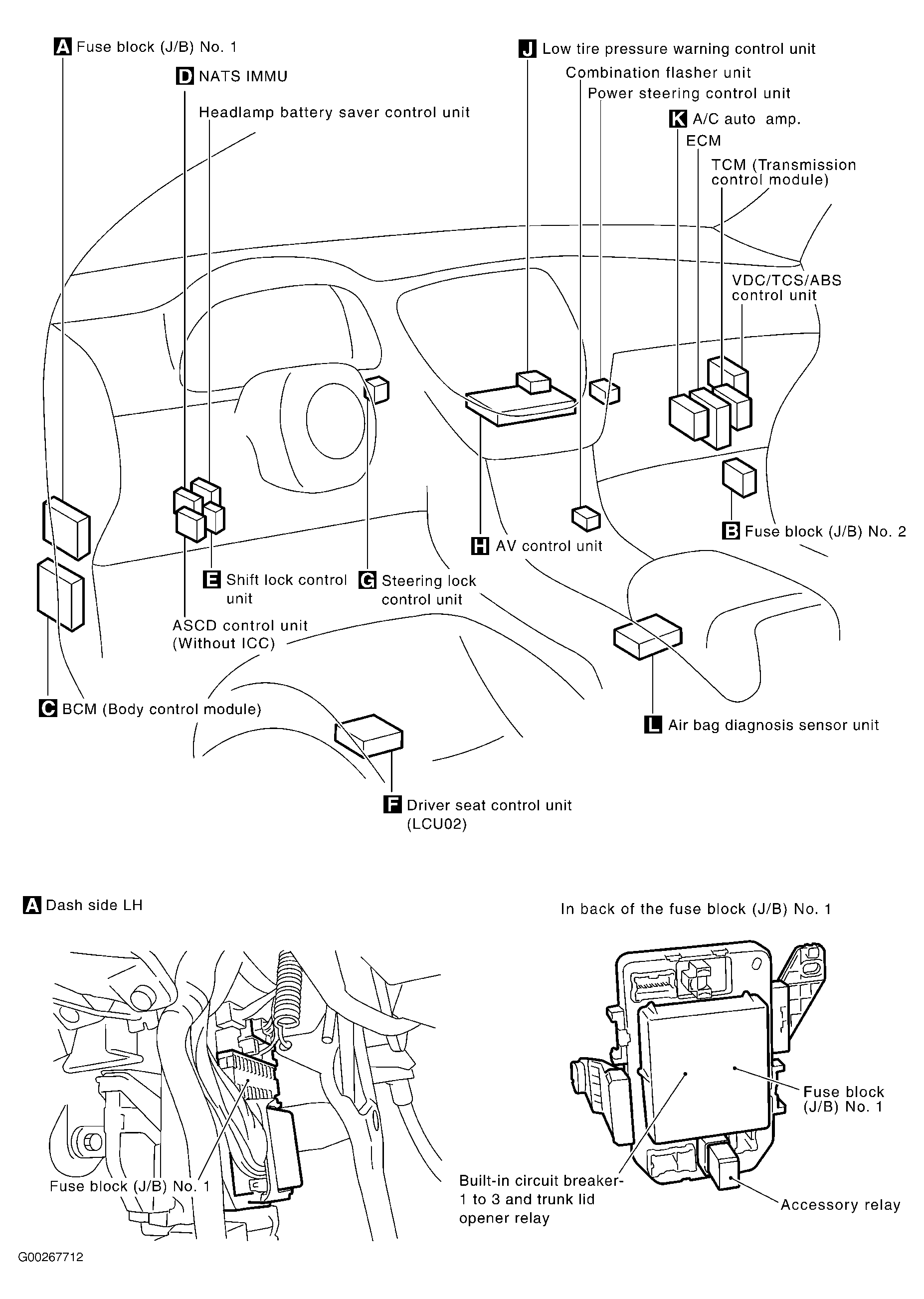

| Built-In Circuit Breaker - 1 To 3 | In fuse block (J/B) No. 1. See Figure . |
| Engine Room Box | In right side of engine compartment. See Figure . |

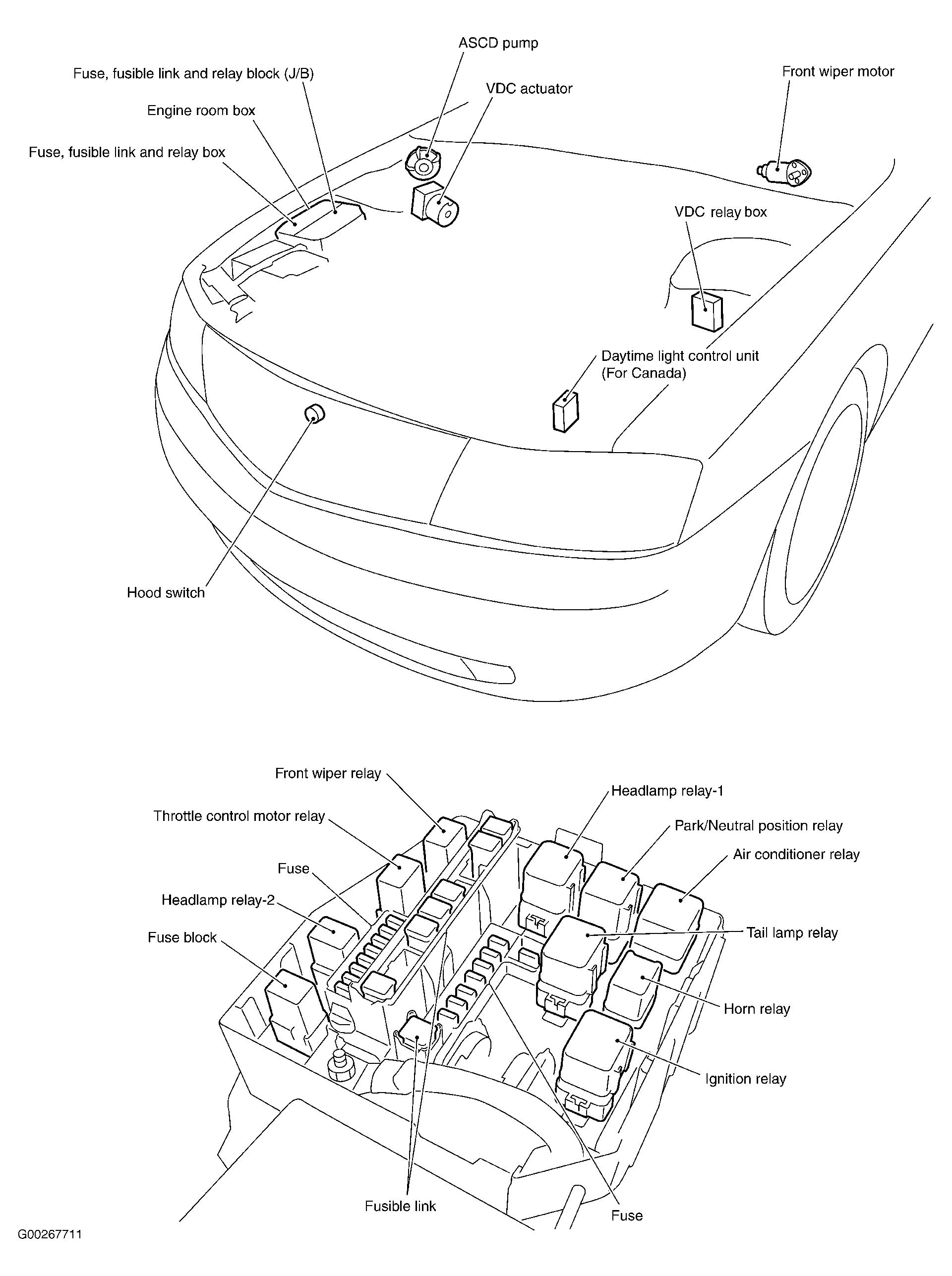

| Fuse Block | In fuse, fusible link & relay block (J/B). See Figure . |
| Fuse Block (J/B) No. 1 | Behind left end of dash. See Figure . |

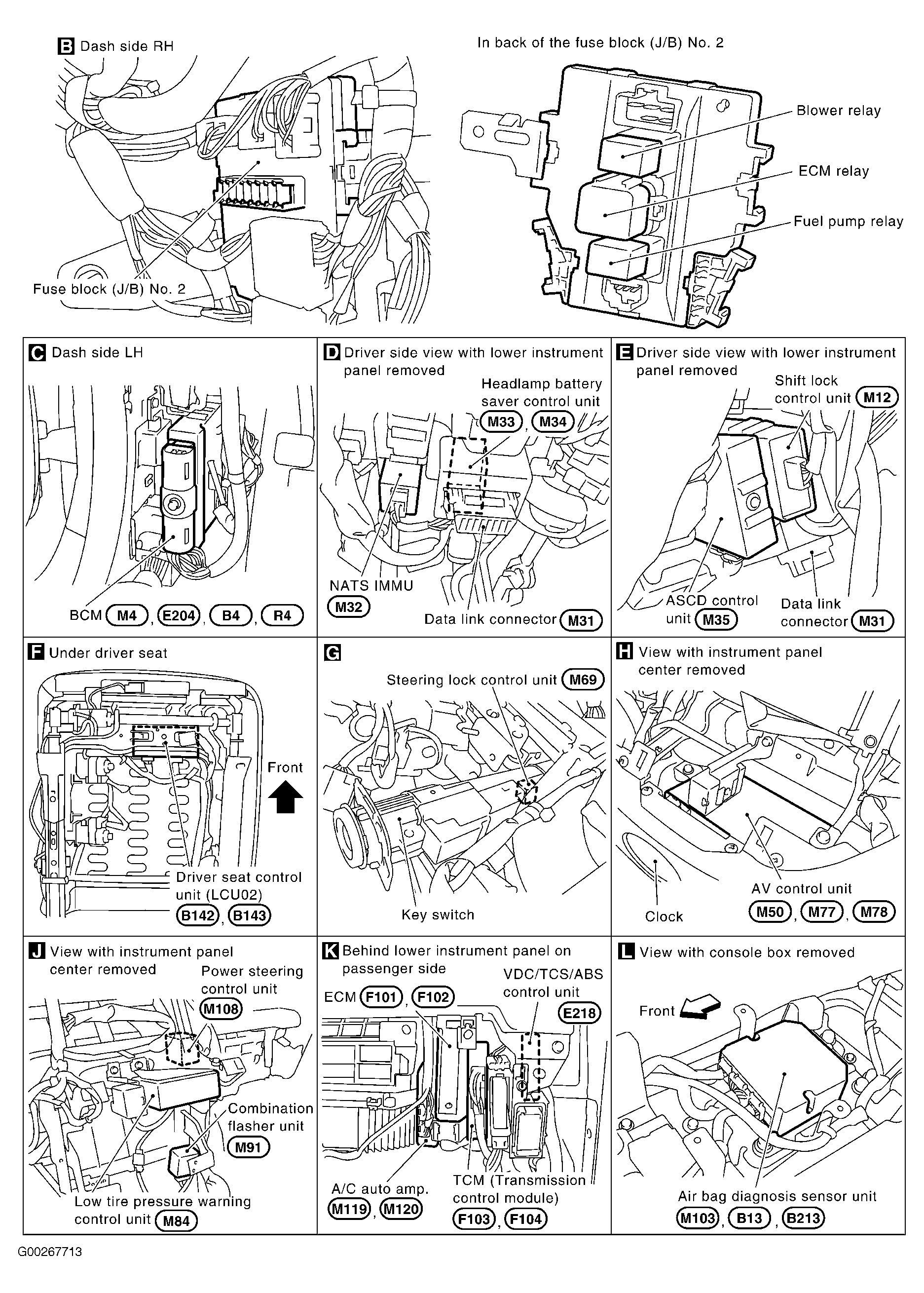

| Fuse Block (J/B) No. 2 | Behind right kick panel. See Figure . |
| Fuse, Fusible Link & Relay Block (J/B) | At right side of engine compartment. See Figure . |
| Fuse, Fusible Link & Relay Box | At right side of engine compartment, in engine room box. See Figure . |
| Fusible Link | In fuse, fusible link & relay block (J/B). See Figure . |
| VDC Relay Box | At left side of engine compartment. See Figure . |
