Component Location Graphics

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Dash

G00267693

Courtesy of NISSAN MOTOR CO., U.S.A.

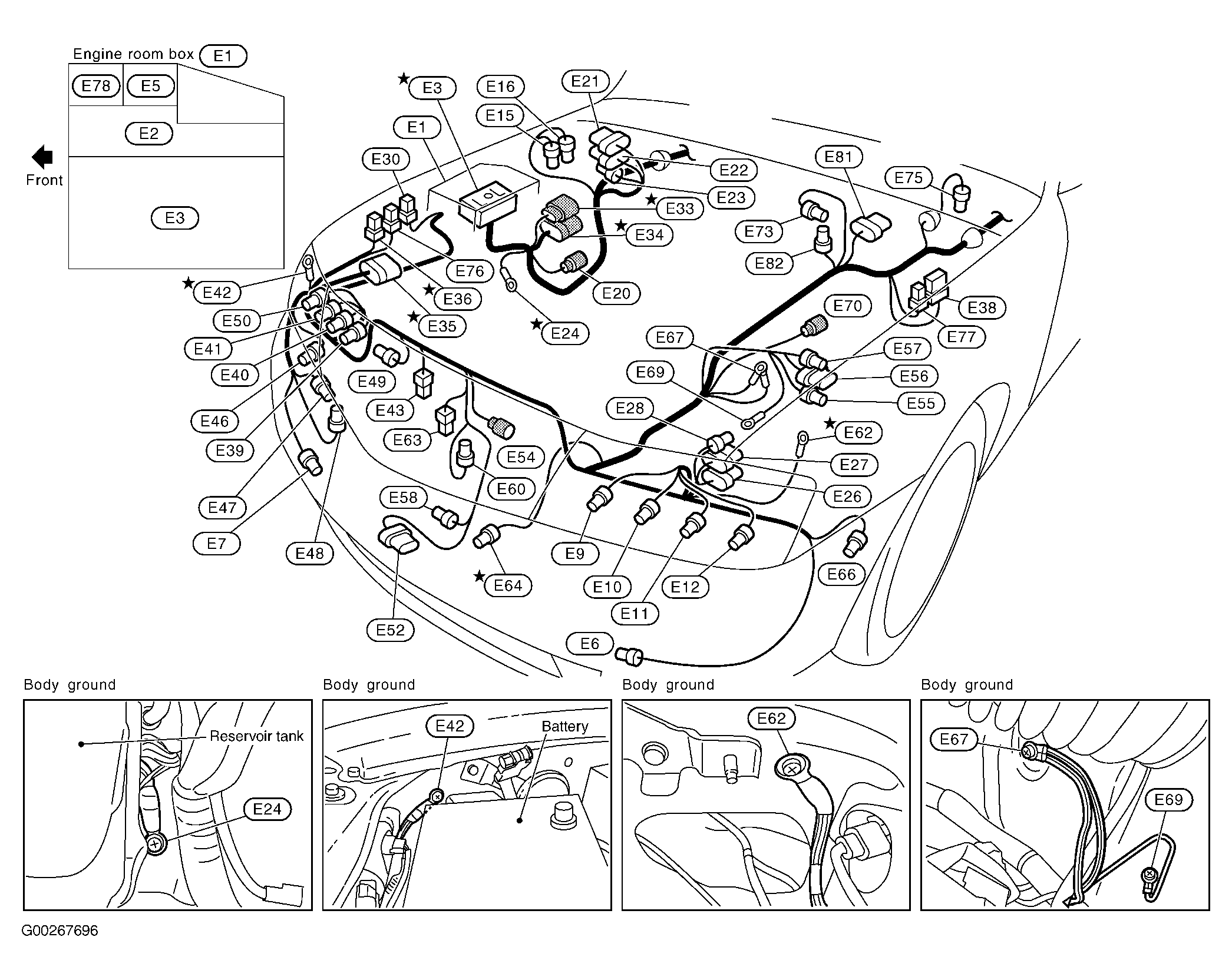

Fig 2: Engine Compartment

G00267696

Courtesy of NISSAN MOTOR CO., U.S.A.

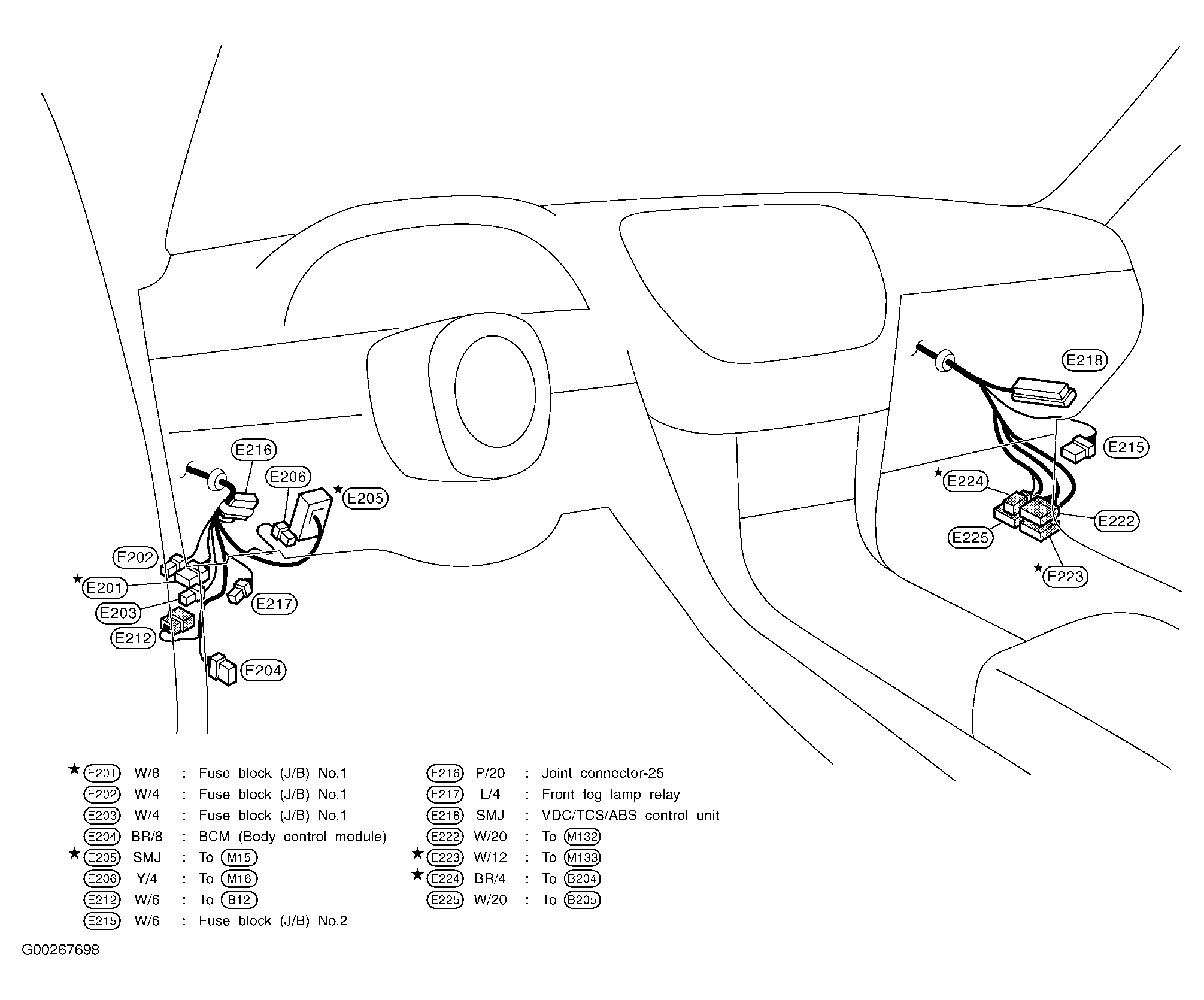

Fig 3: Left & Right Kick Panels

G00267698

Courtesy of NISSAN MOTOR CO., U.S.A.

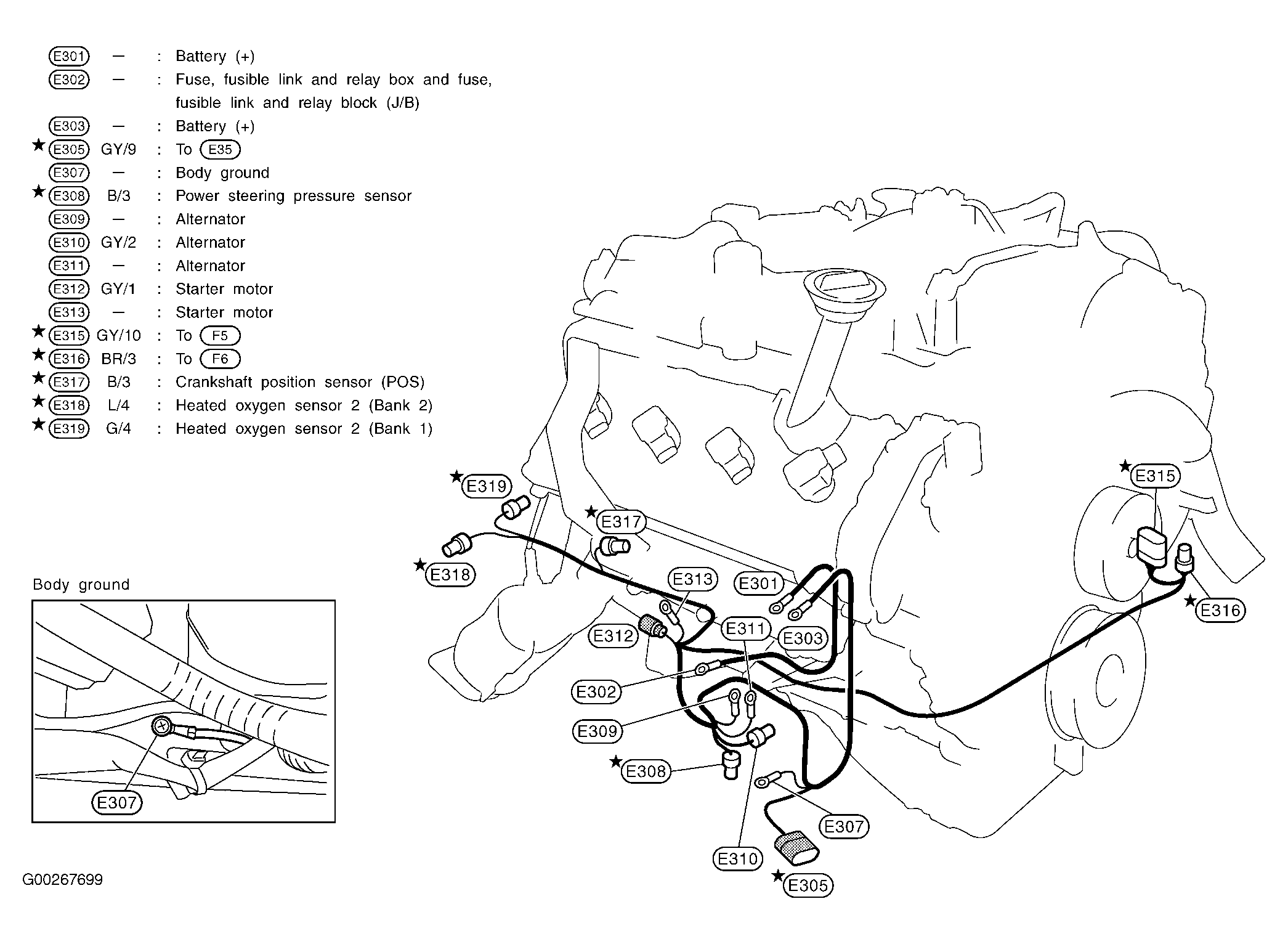

Fig 4: Right Side Of Engine

G00267699

Courtesy of NISSAN MOTOR CO., U.S.A.

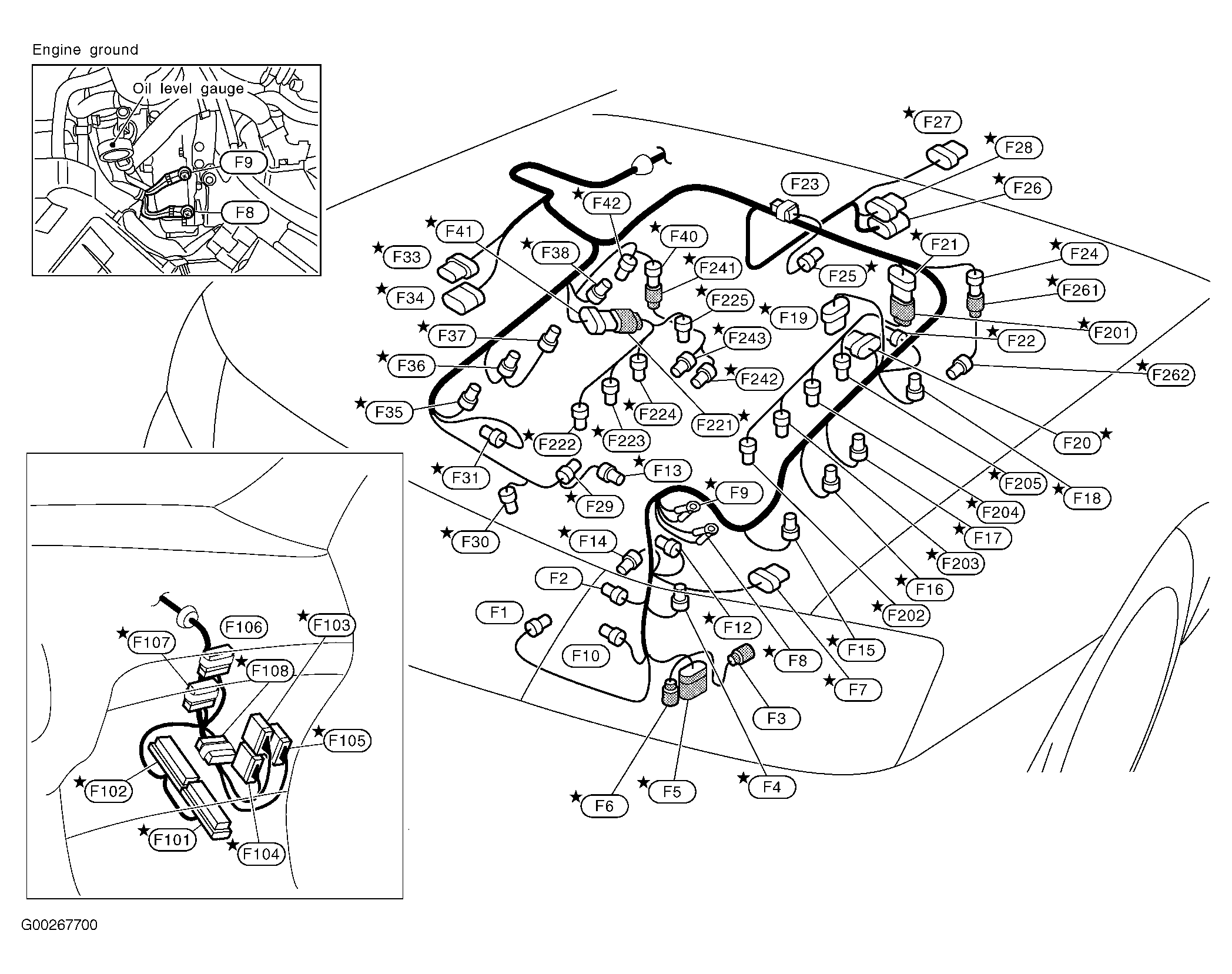

Fig 5: Engine

G00267700

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Left Side Of Vehicle

G00267702

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Right Side Of Vehicle

G00267704

Courtesy of NISSAN MOTOR CO., U.S.A.

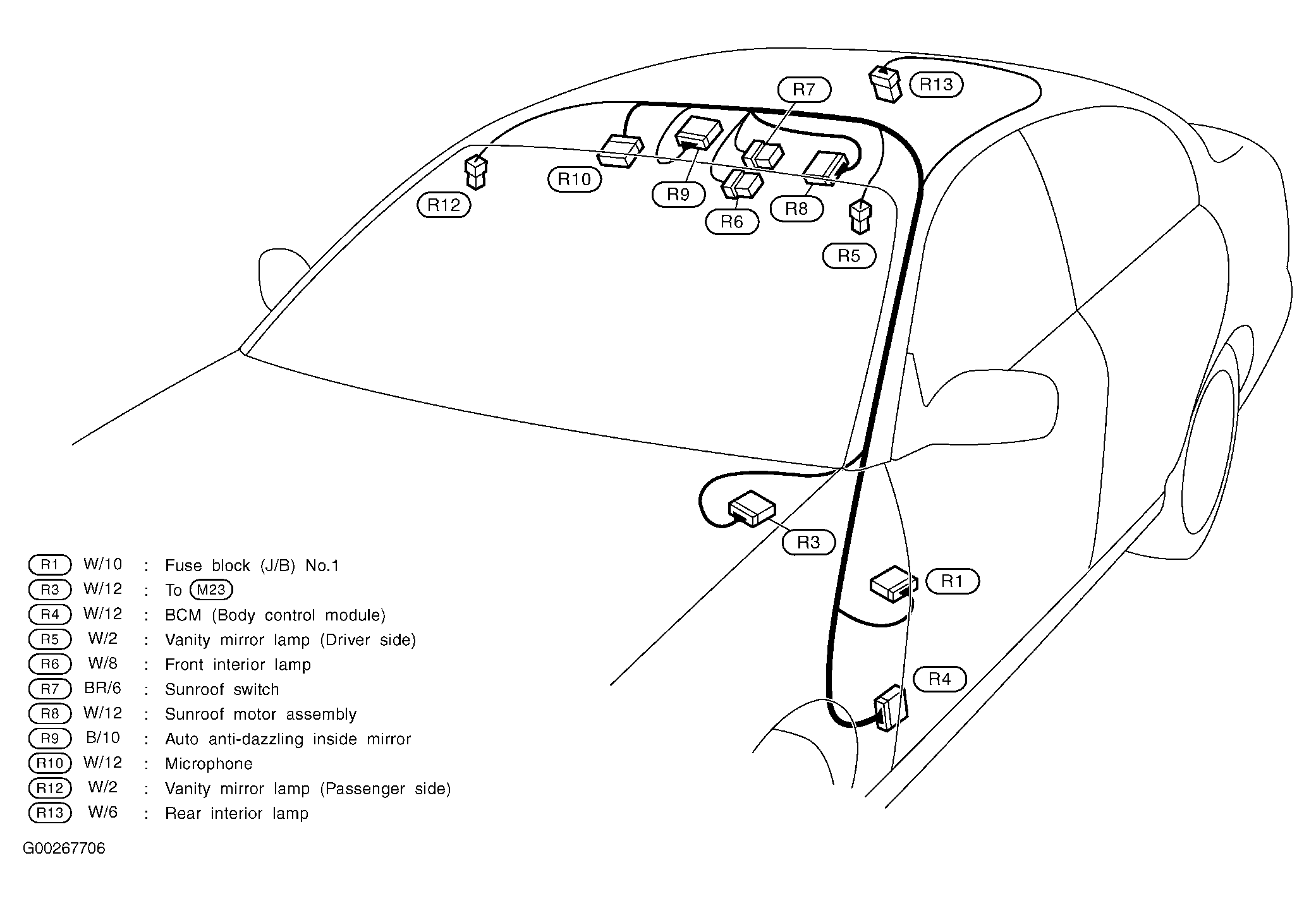

Fig 8: Roof

G00267706

Courtesy of NISSAN MOTOR CO., U.S.A.

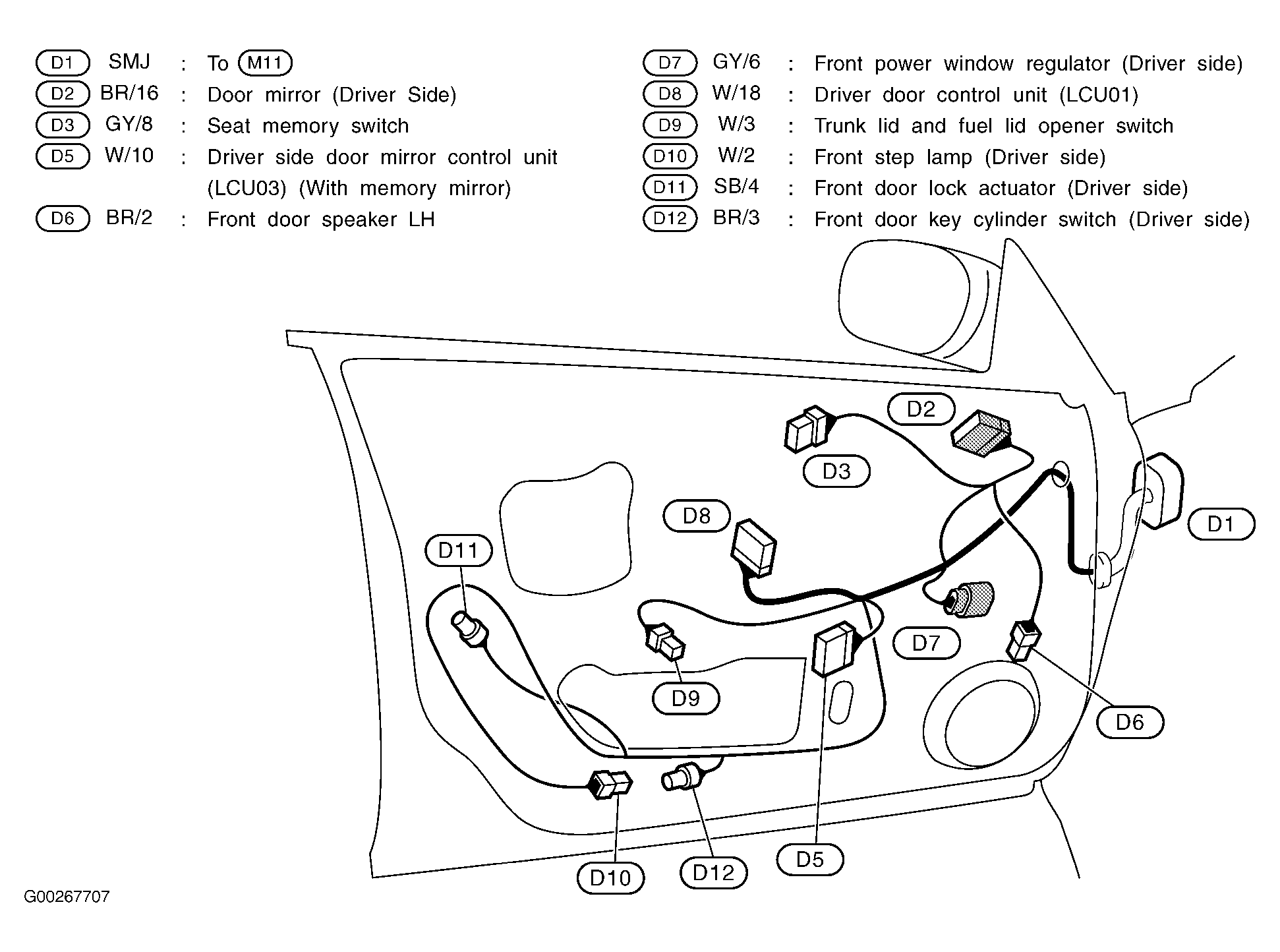

Fig 9: Driver's Door

G00267707

Courtesy of NISSAN MOTOR CO., U.S.A.

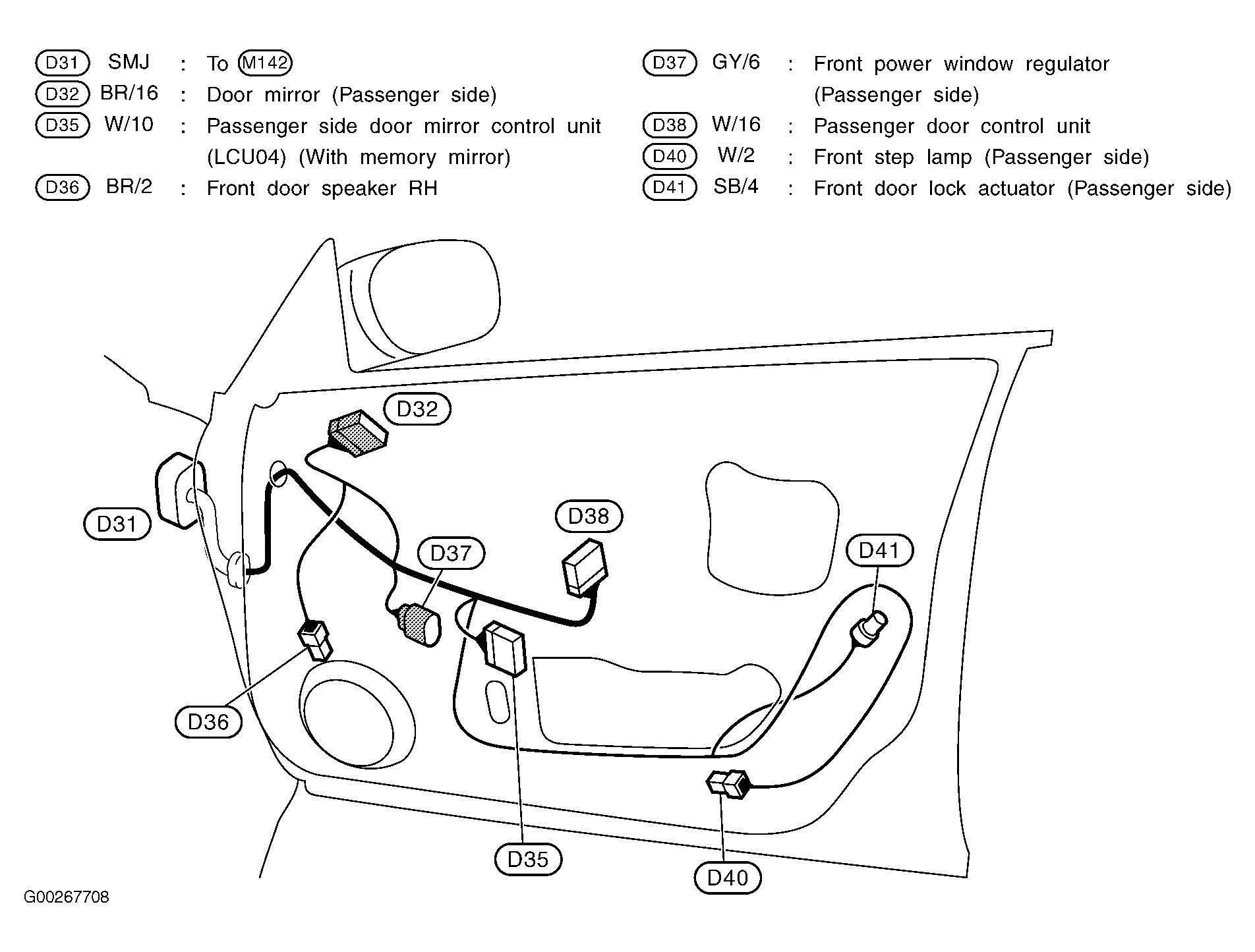

Fig 10: Front Passenger Door

G00267708

Courtesy of NISSAN MOTOR CO., U.S.A.

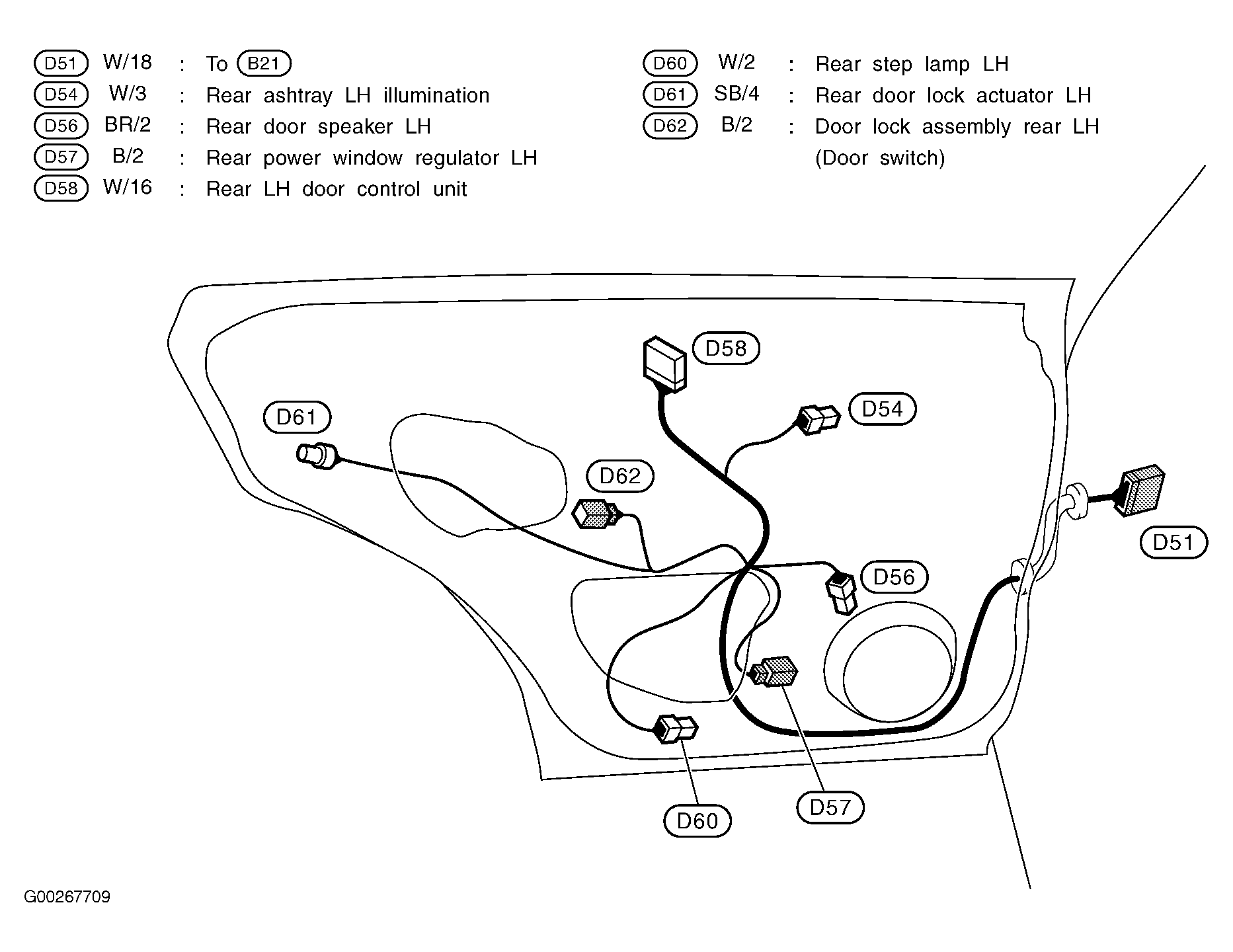

Fig 11: Left Rear Door

G00267709

Courtesy of NISSAN MOTOR CO., U.S.A.

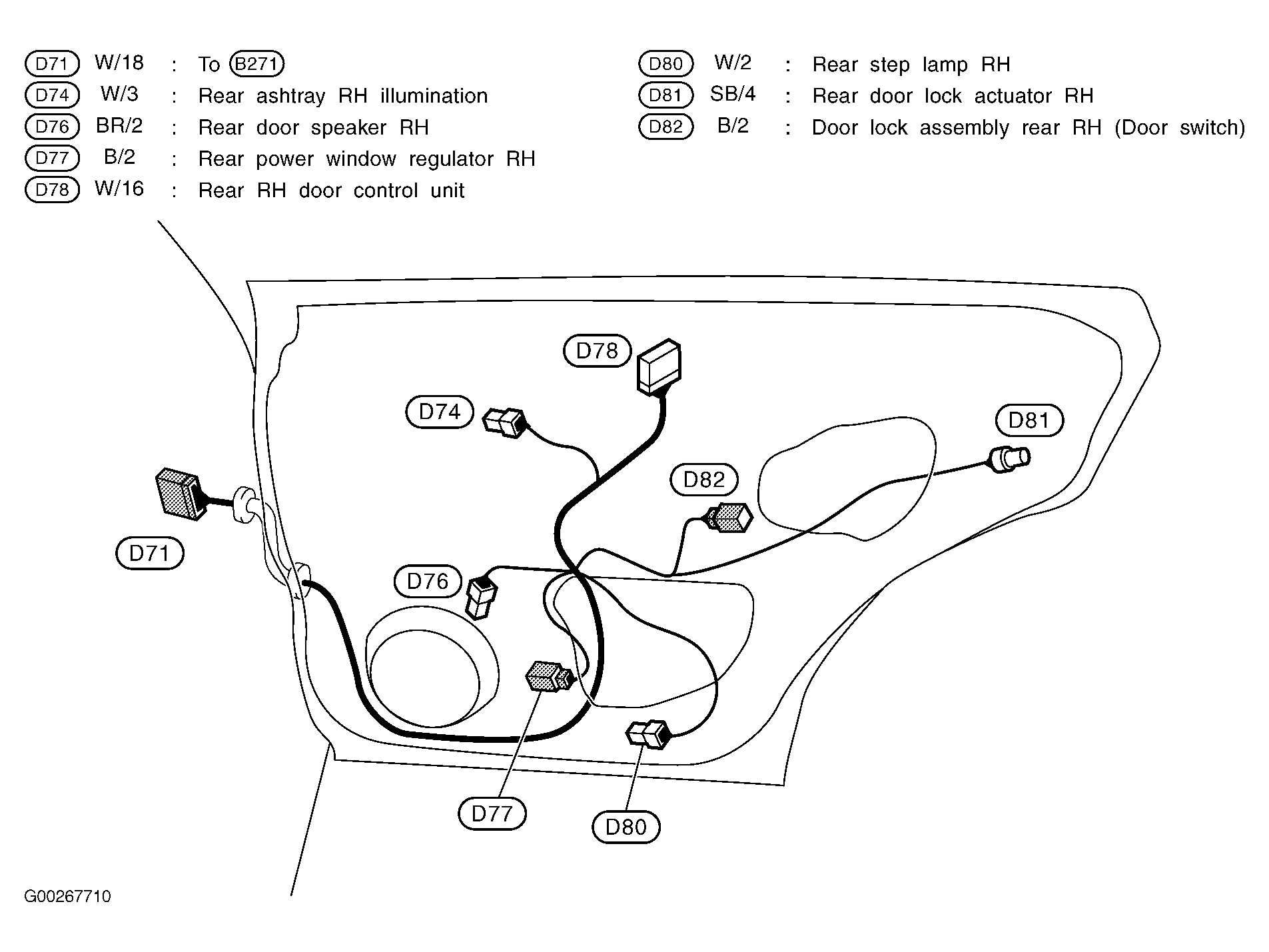

Fig 12: Right Rear Door

G00267710

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Engine Compartment

G00267711

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Dash Components (1 Of 2)

G00267712

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Dash Components (2 Of 2)

G00267713

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Rear Of Vehicle

G00267714

Courtesy of NISSAN MOTOR CO., U.S.A.
