Piston Selection Table

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

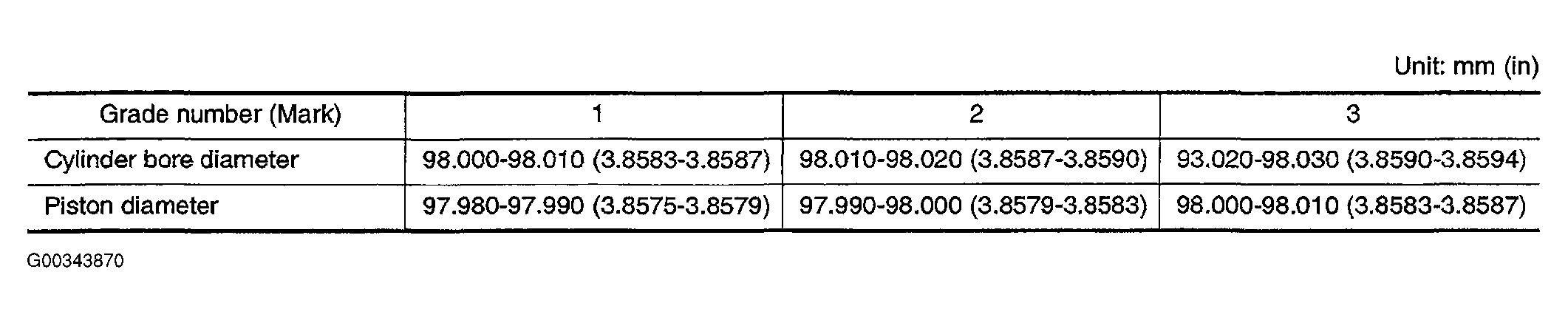

Fig 1: Piston Selection Table
G00343870Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Oversize must be used in all cylinders when using oversized parts.
  1. Piston oversize (Service) : 0.20 mm (0.0079 in)
NOTE:
  • The piston is available together with piston pin as an assembly.
  • The piston pin (piston pin bore) grade is provided only for the parts installed at the plant. For service parts, no grades can be selected (Only 0 grade is available).
  • Hone cylinder to obtain specified clearance between piston and cylinder bore when using an oversized piston. Be sure to use the same oversized piston rings.
