COMPONENT LOCATIONS

Component

Location

Data Link Connector (DLC)

Left Side Of Instrument Panel, Above Brake Pedal

Engine Control Module (ECM)

⁽¹⁾ Right Side Of Engine Compartment Firewall

ECM Relay

⁽²⁾ Under Right Side Of Instrument Panel, Behind Glove Box

Immobilizer Unit (IMMU)

Mounted To Ignition Switch

Junction Block Fuse Block

Under Left Side Of Instrument Panel, Above Left Kick Panel

SECURITY Light

Next To Right Side Defroster Grille

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

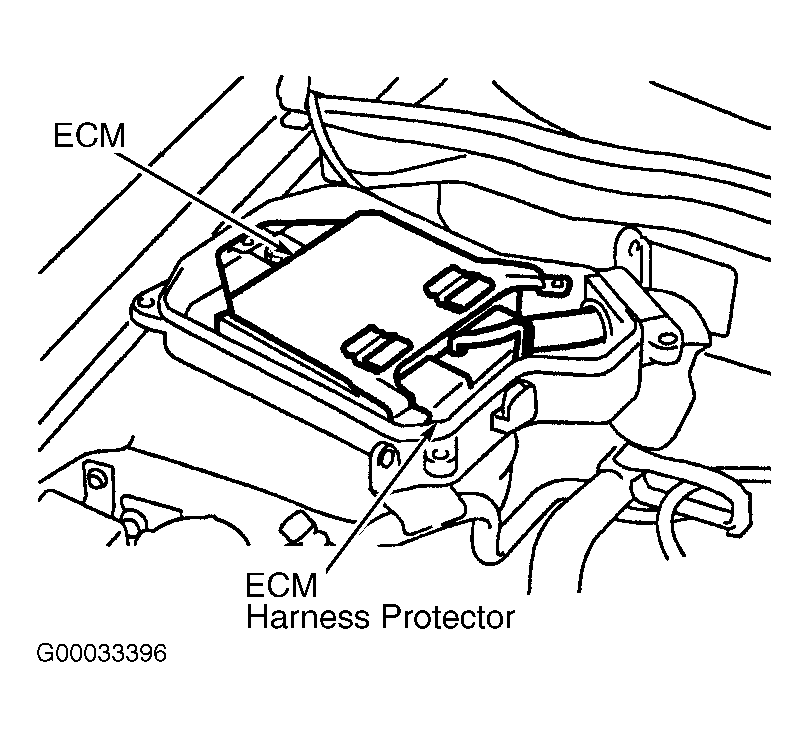

Fig 1: Identifying Engine Control Module (ECM) Location

Courtesy of NISSAN MOTOR CO., U.S.A.

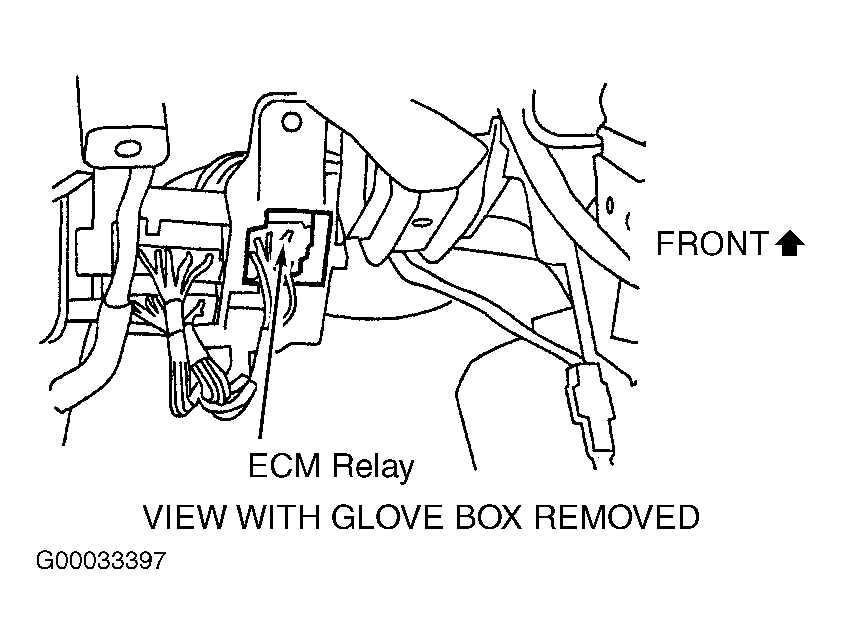

Fig 2: Identifying ECM Relay Location

Courtesy of NISSAN MOTOR CO., U.S.A.
