12. Check Can Communication Error

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Press (REC) switch.
CAN communication error between unified meter and A/C amp. and DISPLAY UNIT or DISPLAY CONTROL UNIT is detected. See Fig 1.

OK or NG

OK,
1. Turn ignition switch OFF or AUTO switch ON.
2. END
NG, Go to CAN communication. Refer to "CAN Communication System Description ".
- Unified meter and A/C amp. - DISPLAY UNIT
- Unified meter and A/C amp. - DISPLAY CONTROL UNIT

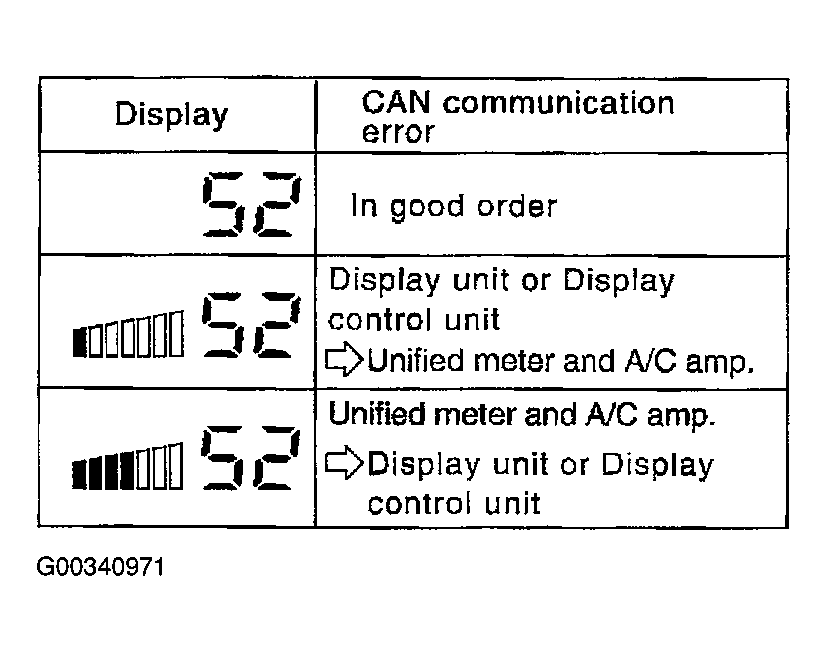

Fig 1: Can Communication Error Display

Courtesy of NISSAN MOTOR CO., U.S.A.
