Steering Outer Socket And Inner Socket

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

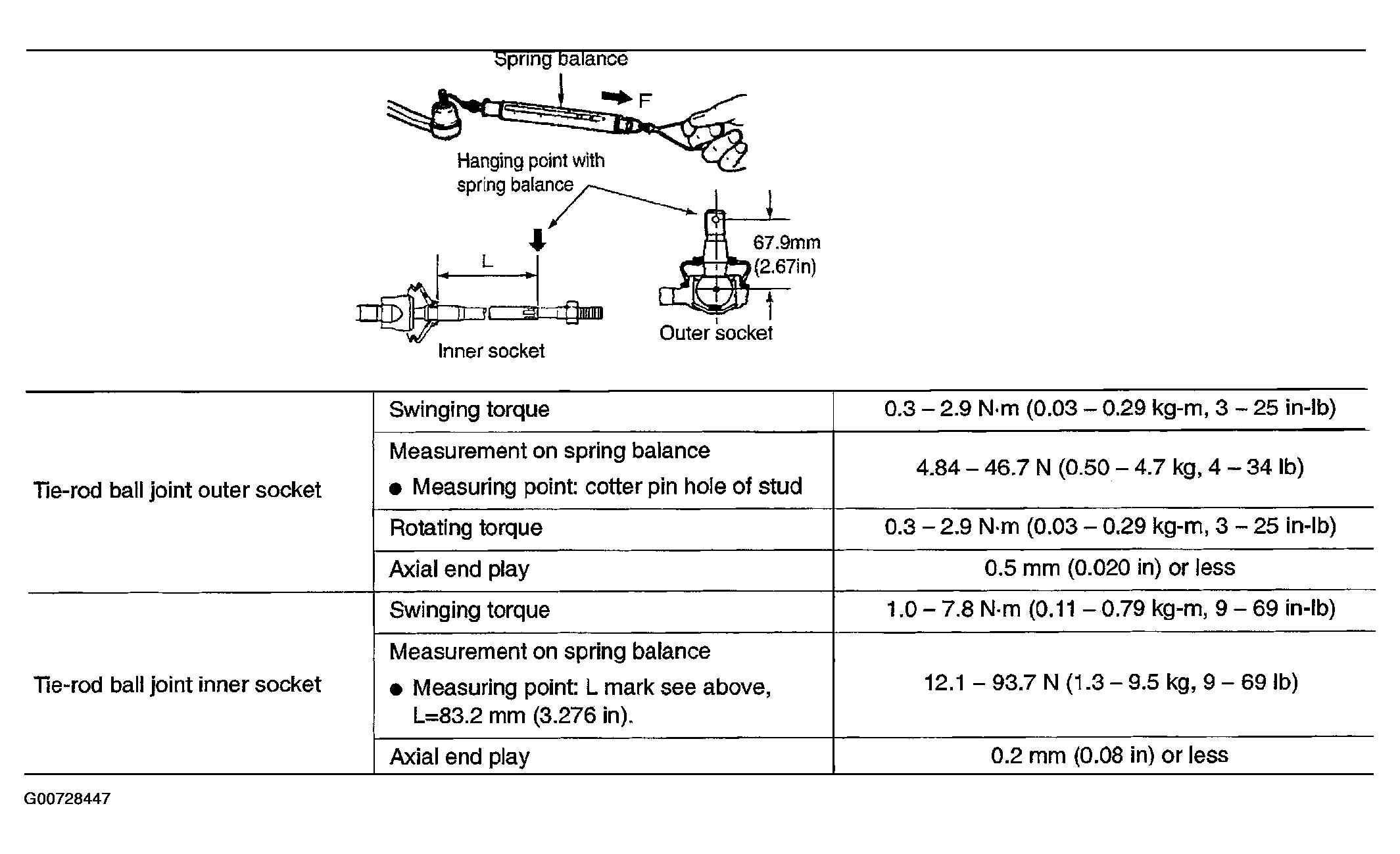

Fig 1: Steering Outer Socket and Inner Socket

Courtesy of NISSAN MOTOR CO., U.S.A.

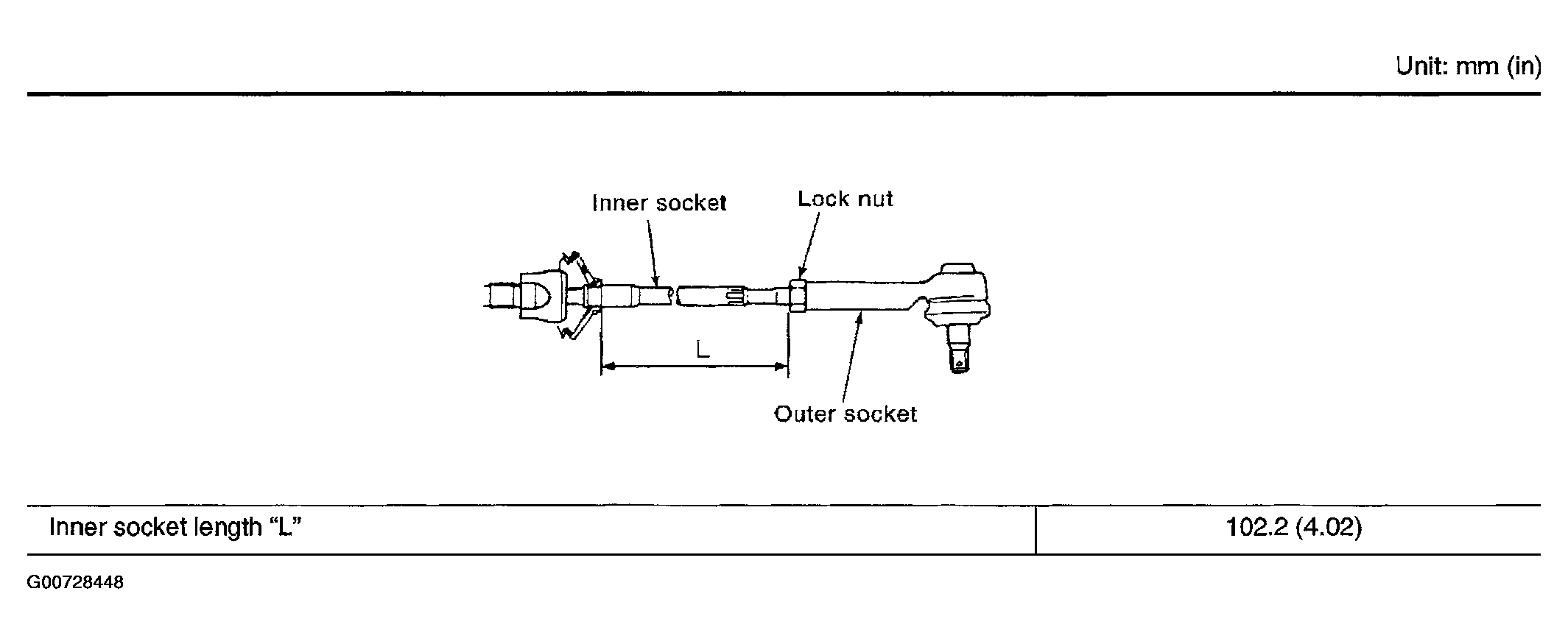

Fig 2: Steering Inner Socket Length "L"

Courtesy of NISSAN MOTOR CO., U.S.A.
