2. Check PSP Sensor Power Supply Circuit

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect PSP sensor harness connector.

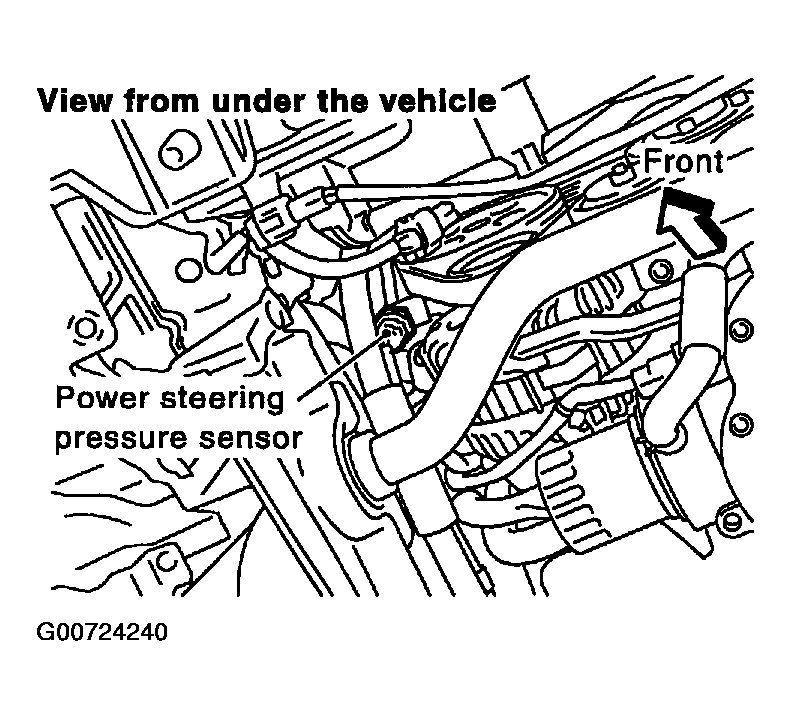

Fig 1: Locating Power Steering Pressure Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Check voltage between PSP sensor terminal 1 and ground with CONSULT-II or tester.

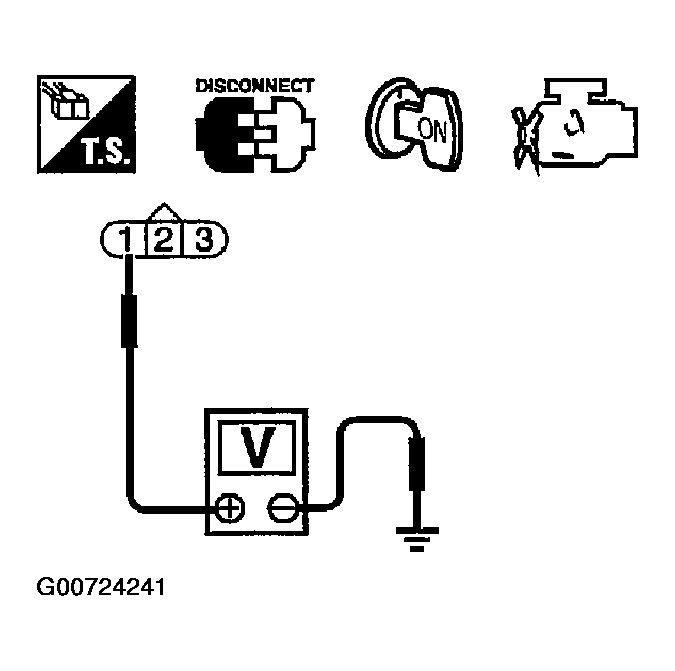

Fig 2: Checking Power Supply Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Voltage: Approximately 5V

OK or NG

OK: GO TO 3.

NG: Repair open circuit or short to ground or short to power in harness or connectors.
