Front Wheel Turning Angle

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Set wheels in straight-ahead position. Then move vehicle forward until front wheels rest on turning radius gauge properly.
Rotate steering wheel all the way right and left; measure turning angle.
Wheel turning angle (full turn) : Refer to WHEEL ALIGNMENT (UNLADEN*1) .

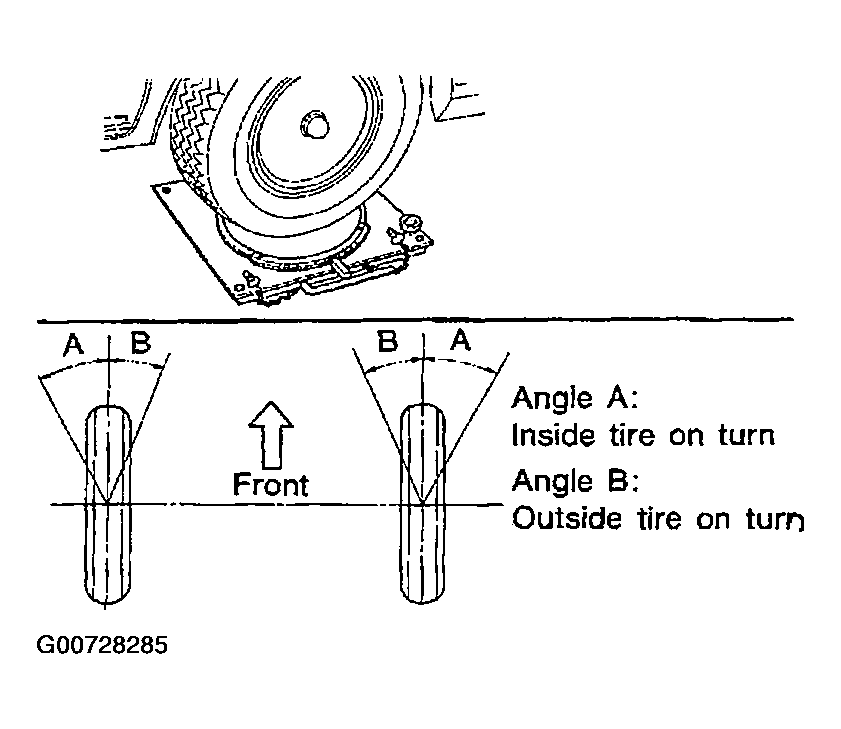

Fig 1: Identifying Front Wheel Turning Angle

Courtesy of NISSAN MOTOR CO., U.S.A.
