Front Air Control Terminals And Reference Value: Notes

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Measure voltage between each terminal and ground by following TERMINALS AND REFERENCE VALUE FOR FRONT AIR CONTROL .

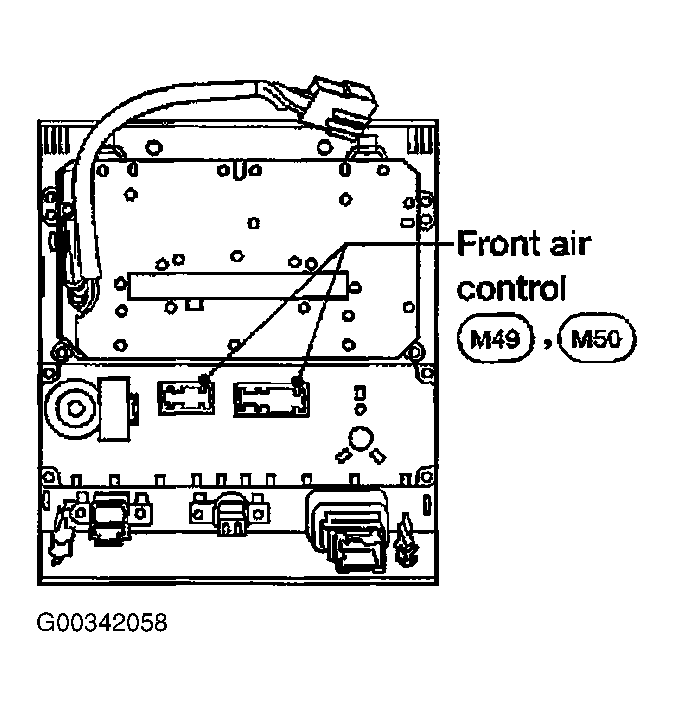

Fig 1: Locating Front Air Control Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.
