Setting Change Function

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

The settings of the automatic driving positioner system can be changed, using CONSULT-II and the display in the center of the instrument panel.

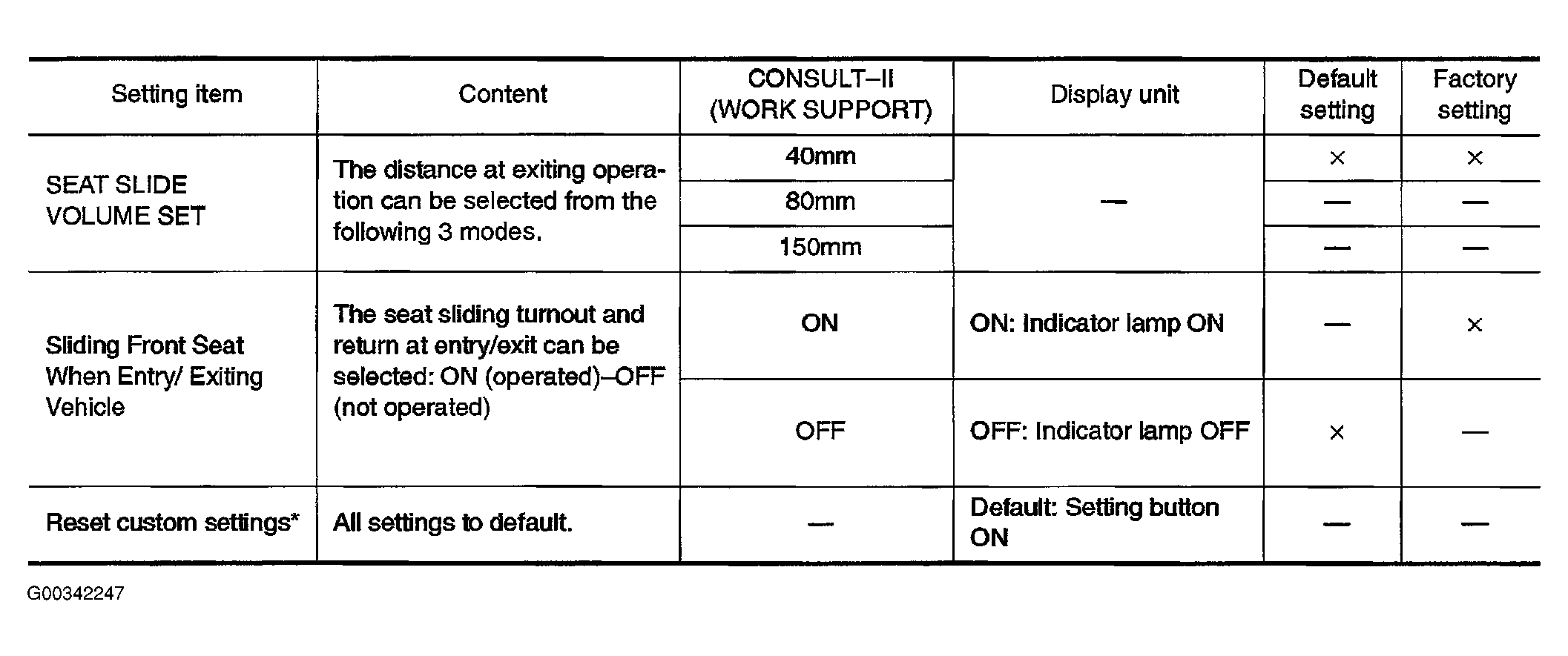

Fig 1: Setting Change Function (Using CONSULT-II )

Courtesy of NISSAN MOTOR CO., U.S.A.

It is possible to set sliding front seat for entry/exit of vehicle by pressing set switch.

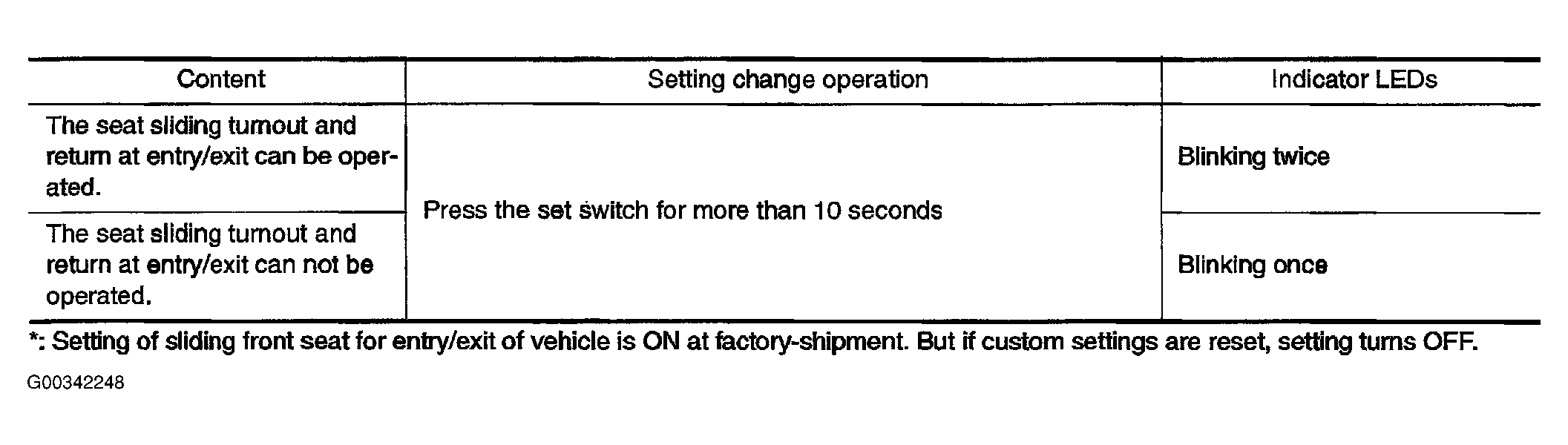

Fig 2: Setting Change Function (Using Set Switch)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: After the setting is registered, the new setting is effective, even if the battery is disconnected.
