With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check operation with "RECLINING PULSE" on the DATA MONITOR to make sure the pulse changes.

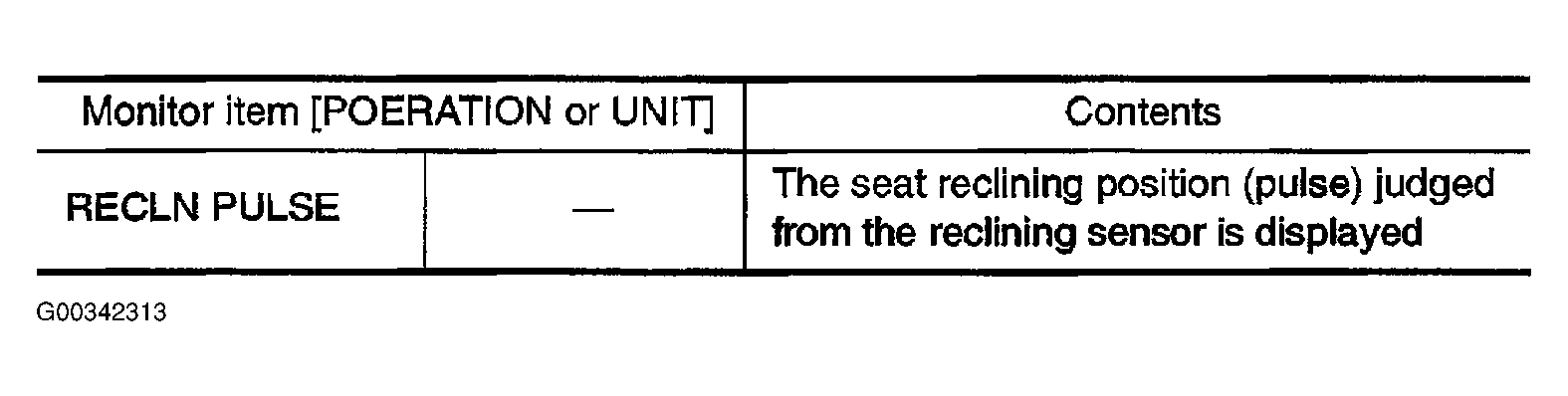

Fig 1: Data Monitor Chart
G00342313Courtesy of NISSAN MOTOR CO., U.S.A.

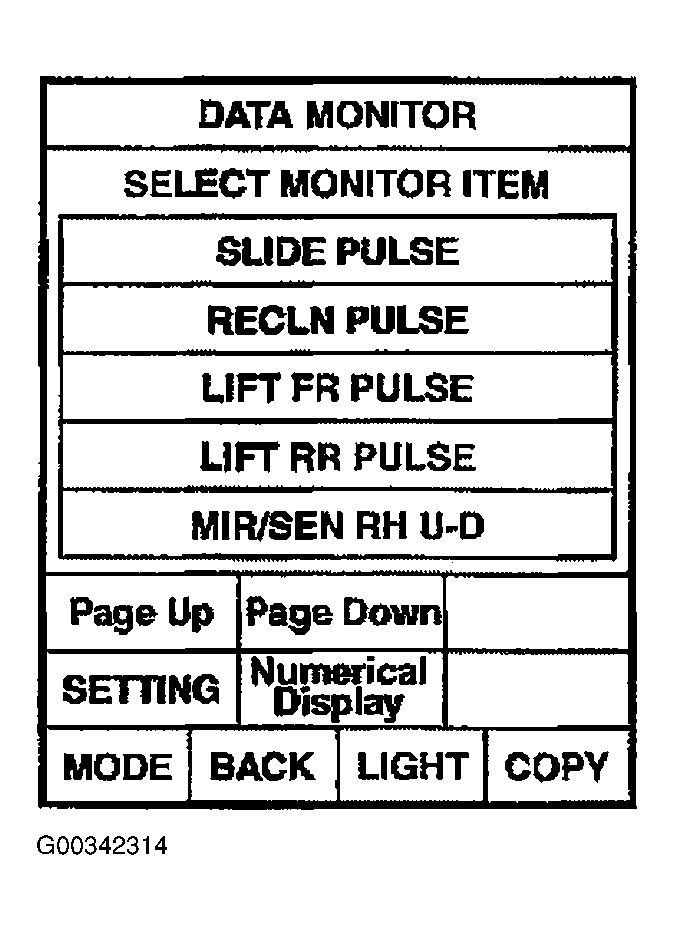

Fig 2: CONSULT-II Display
G00342314Courtesy of NISSAN MOTOR CO., U.S.A.
