3. Check Sliding Switch

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between power seat switch LH as follows.

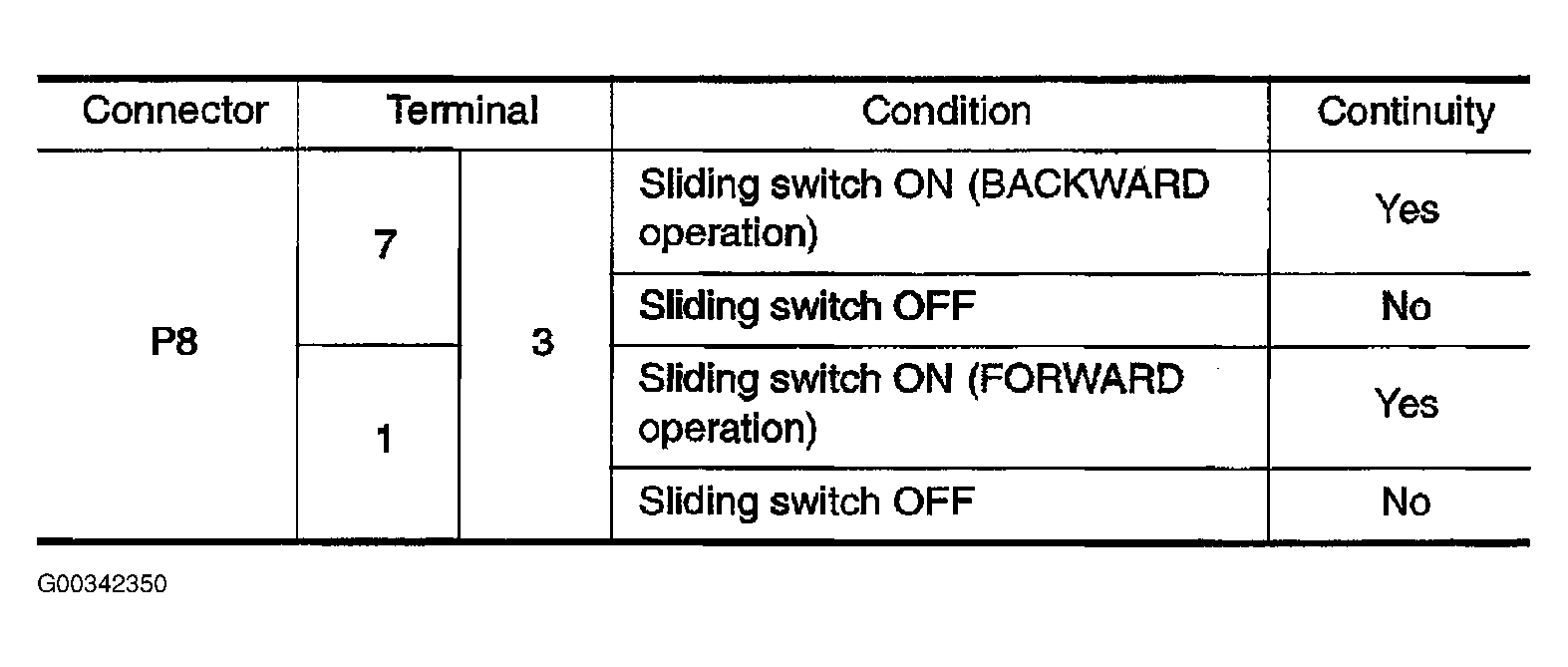

Fig 1: Sliding Switch Continuity Chart
G00342350Courtesy of NISSAN MOTOR CO., U.S.A.

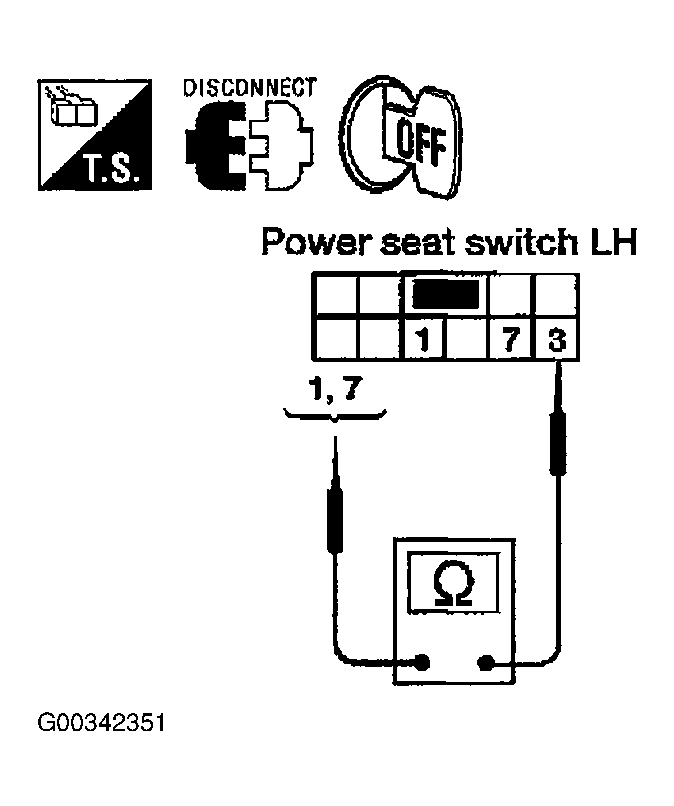

Fig 2: Checking Sliding Switch Continuity
G00342351Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK >> Check the condition of the harness and connector.
  2. NG >> Replace power seat switch LH.
