2. Check Key Fob Function

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT-II

Check key fob function in "DATA MONITOR" mode with CONSULT-II.

When pushing each button of key fob, the corresponding monitor item should be turned as follows.

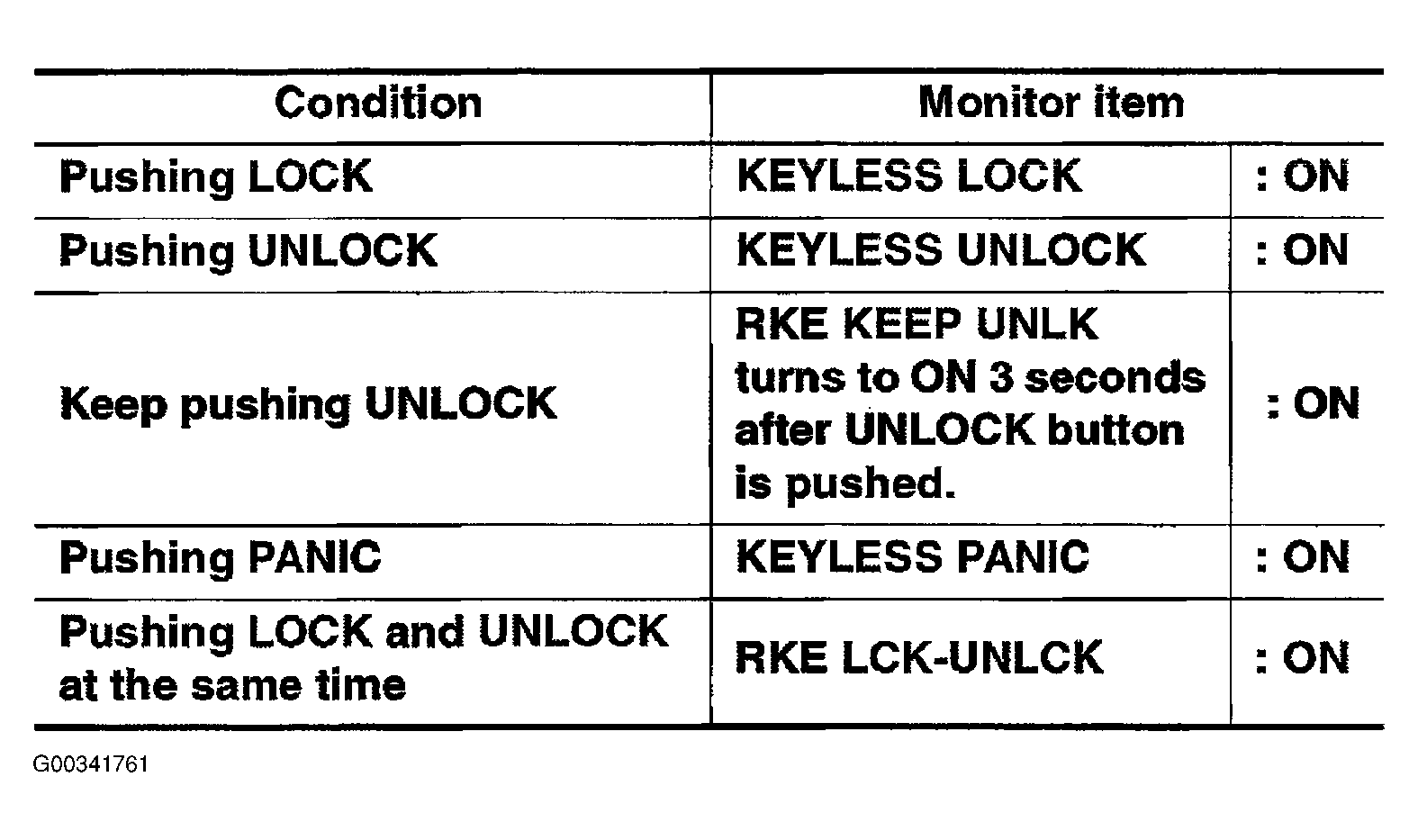

Fig 1: Key Fob Function Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

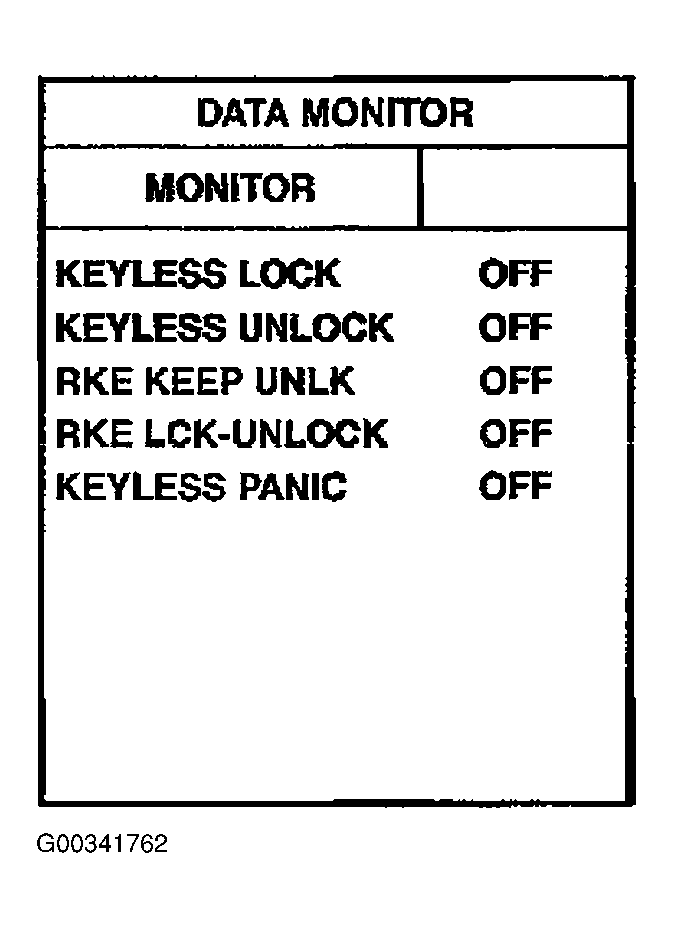

Fig 2: CONSULT-II Display

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Key fob is OK. Further inspection is necessary. Refer to SYMPTOM CHART .
NG >> Replace key fob.
