2. Remote Keyless Entry Receiver Output Signal Inspection

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check voltage between remote keyless entry receiver connector M120 terminal 4 and ground.

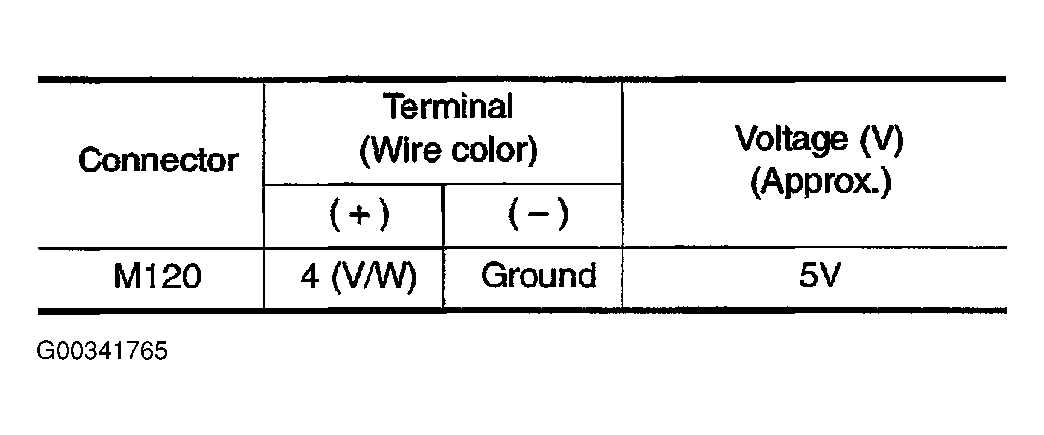

Fig 1: Voltage Chart
G00341765Courtesy of NISSAN MOTOR CO., U.S.A.

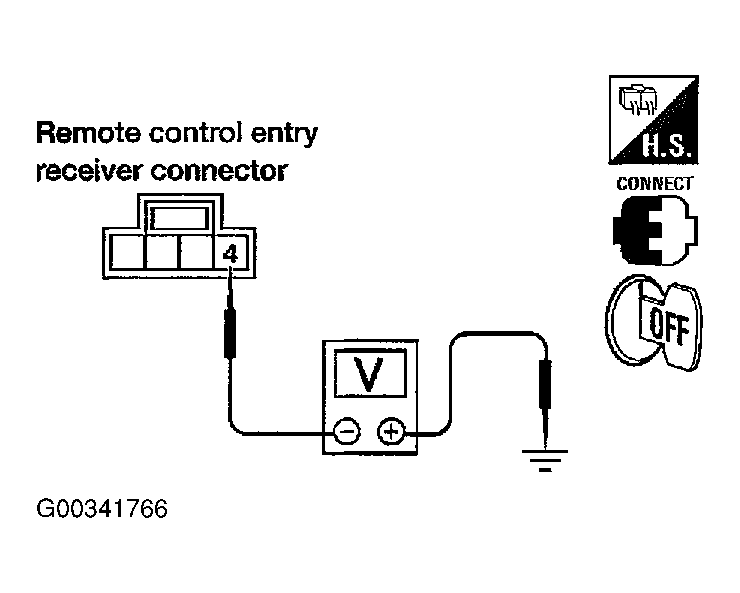

Fig 2: Checking Voltage
G00341766Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK >> GO TO 3.
  2. NG >> GO TO 4  .
