Remote Control Entry Functions
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Operation Description
- When a button on the key fob is operated, the signal is sent from the key fob and received by the keyless remote entry receiver.
- The received signal is sent to the BCM and compared with the registered ID number.
- If the ID number matches, the BCM uses communication to send the lock/unlock signal to each door lock actuator.
- When the door lock actuators receive this communication, each operates to lock/unlock its door.

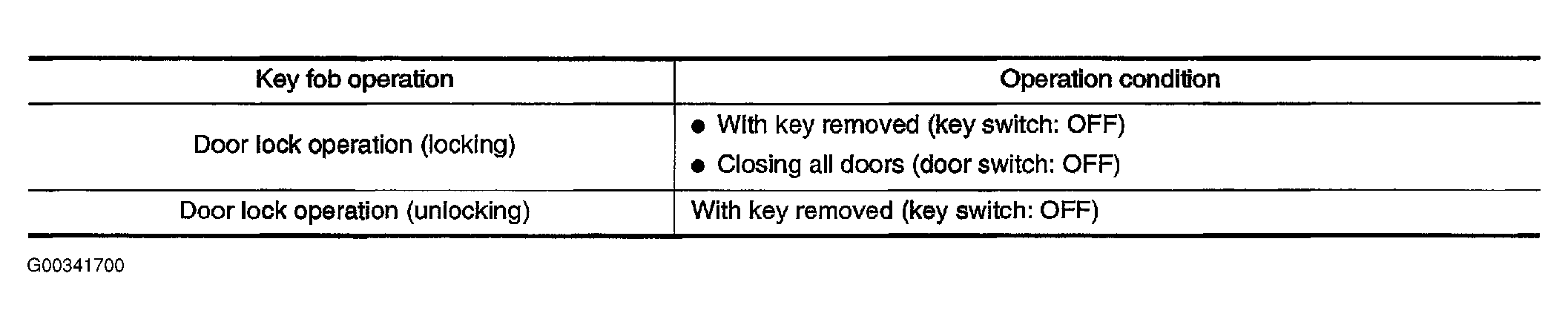

Remote control entry operation conditions
