1. Combination Switch To BCM Inspection
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

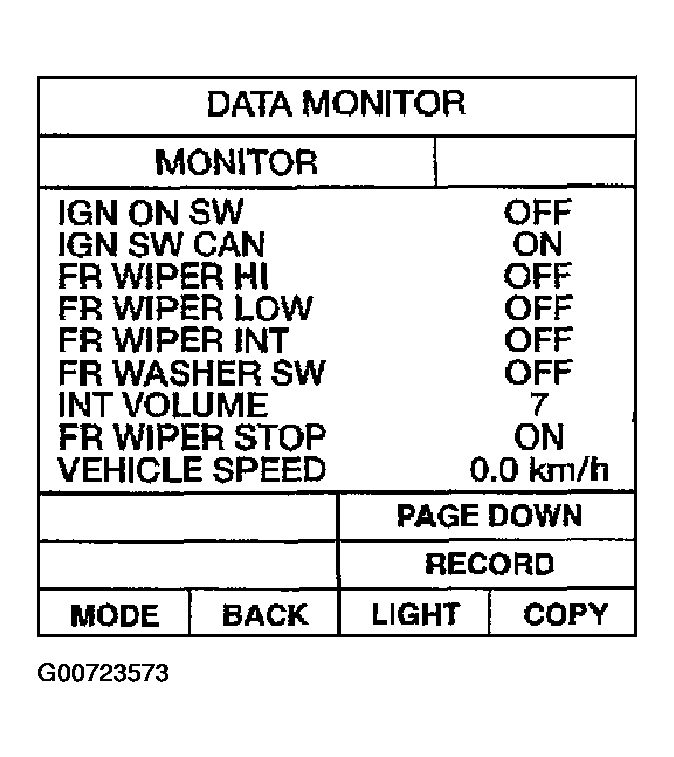

Select BCM on CONSULT-II. With "WIPER" data monitor, check that "INT VOLUME" changes in order from 1 to 7 according to operation of the intermittent switch dial position.
OK or NG
OK >> Replace BCM. Refer to REMOVAL AND INSTALLATION OF BCM .
NG >> Replace wiper switch. Refer to REMOVAL AND INSTALLATION FOR WIPER AND WASHER SWITCH .
