Key Lock

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check operation by applying battery voltage to key switch and key lock solenoid harness connector terminal.
CAUTION: Be careful not to cause burnout of the harness.

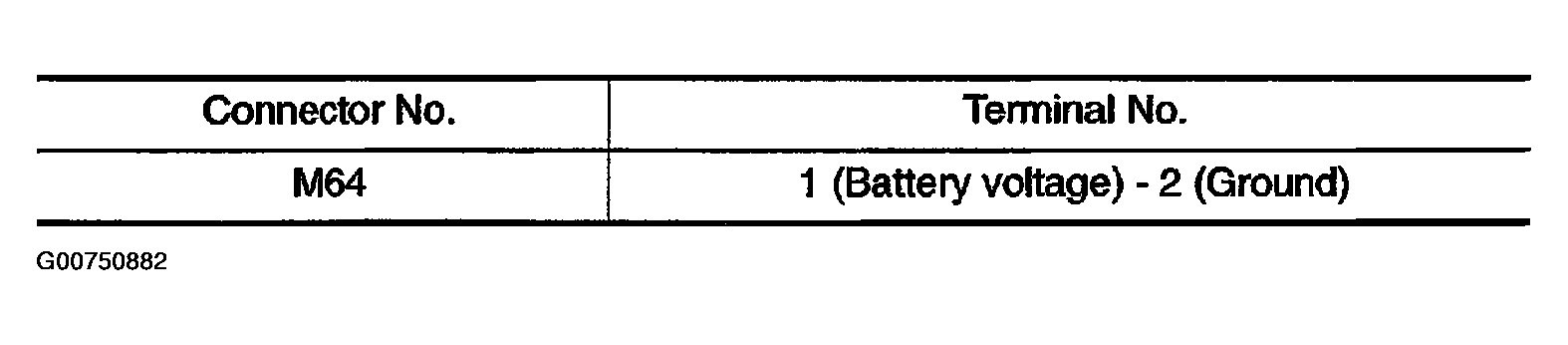

Fig 1: Key Lock Solenoid Specifications Chart (Lock)
Courtesy of NISSAN MOTOR CO., U.S.A.

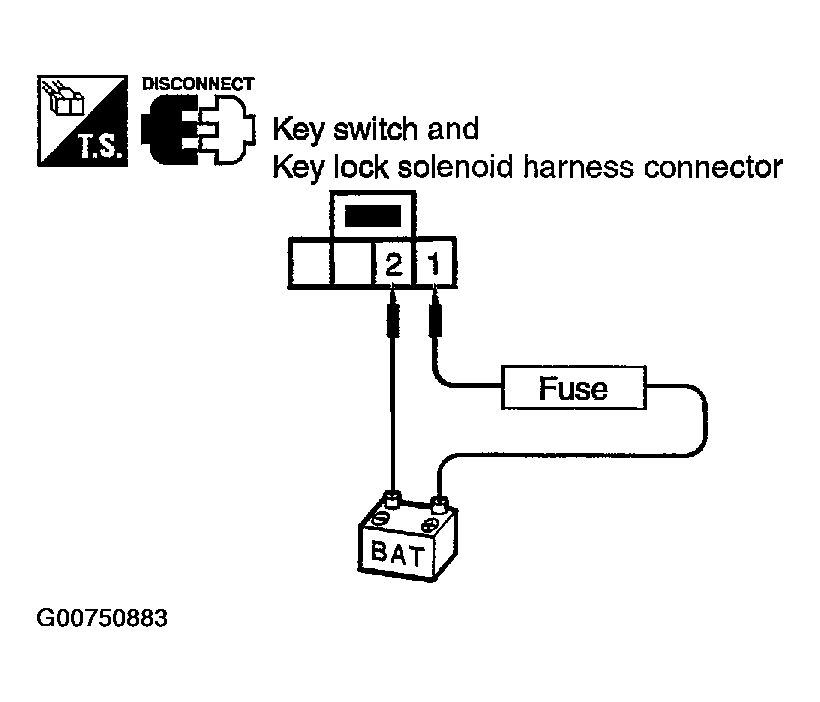

Fig 2: Key Lock Solenoid Testing Procedures (Lock)
Courtesy of NISSAN MOTOR CO., U.S.A.
