Stop Lamp Switch

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals of the stop lamp switch harness connector.

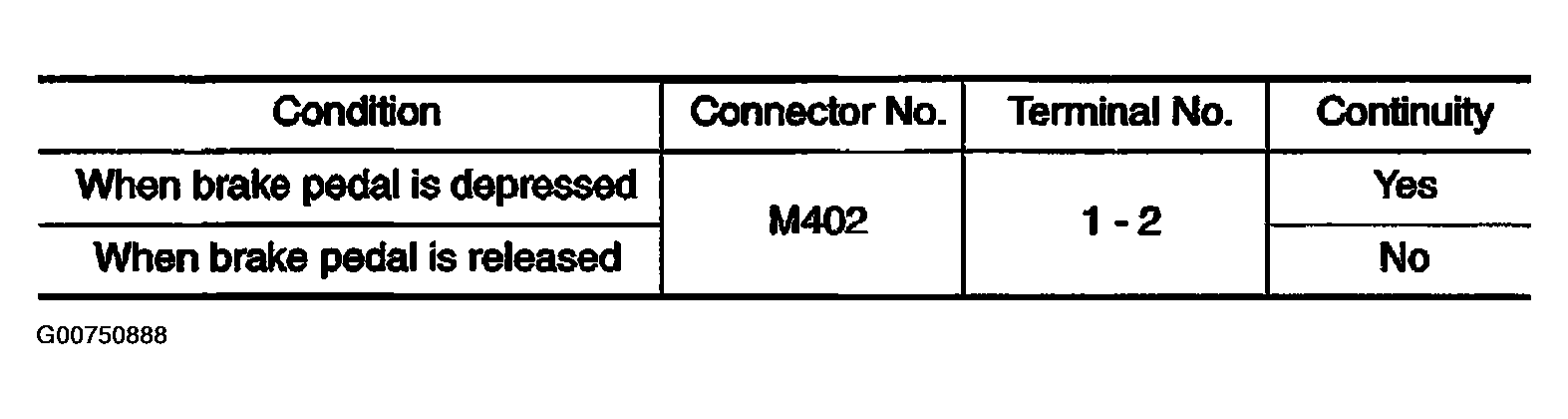

Fig 1: Stop Lamp Switch Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

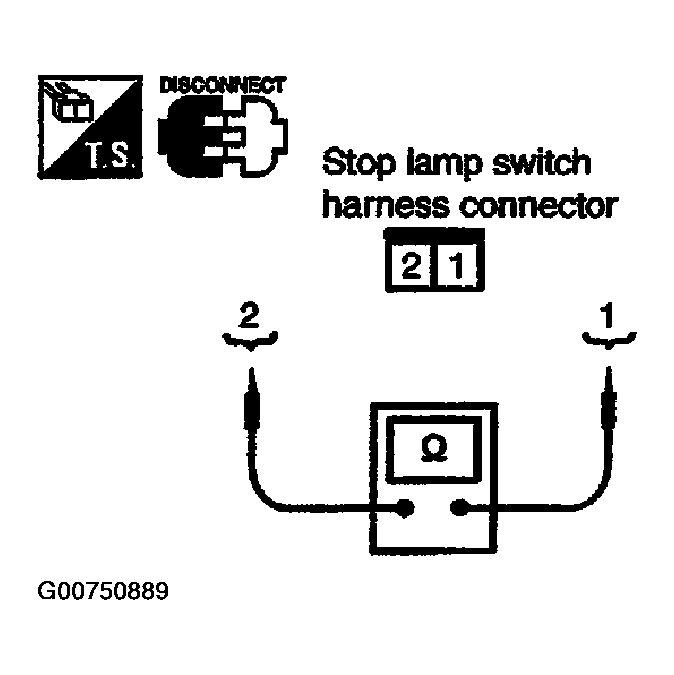

Fig 2: Stop Lamp Switch Testing Procedures
Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal. Refer to " INSPECTION AND ADJUSTMENT " .
