Precautions for TCM, A/T Assembly and Control Valve Assembly Replacement: Notes

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Check data (Unit ID) in TCM with data monitor of CONSULT-II before replacing A/T assembly or control valve assembly.
Check if new data (Unit ID) are entered correctly after replacing A/T assembly or control valve assembly and erasing data in TCM.
When replacing A/T assembly, control valve assembly or TCM, refer to the pattern table below and erase the EEPROM in the TCM if necessary.

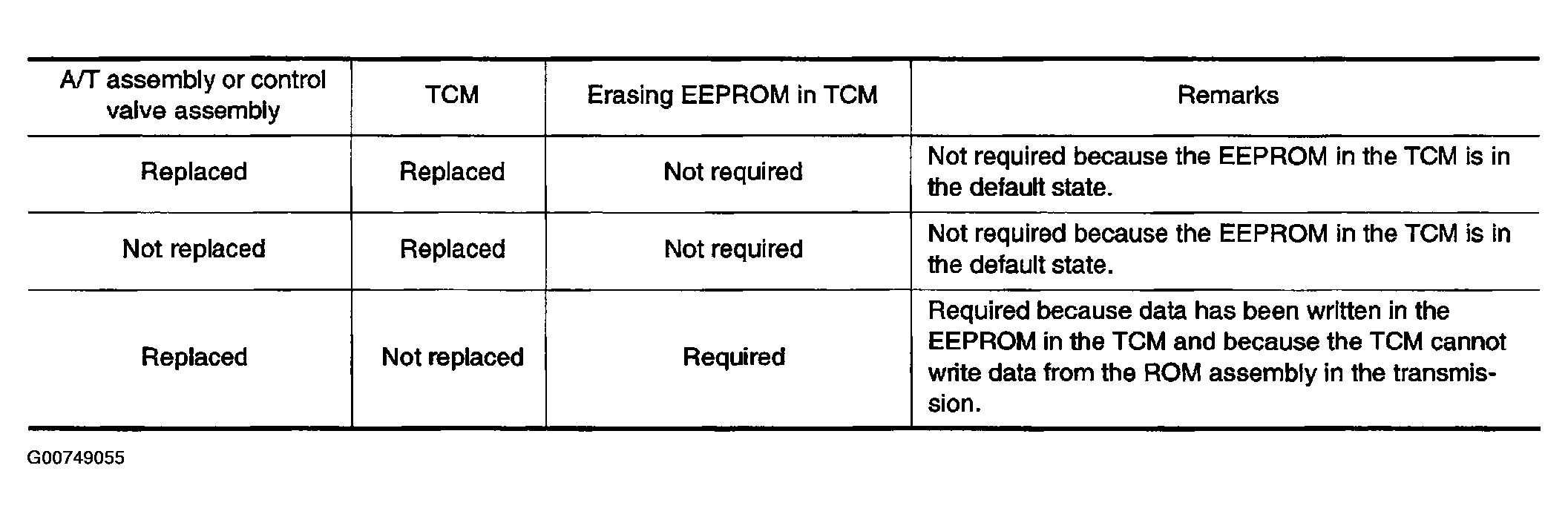

Fig 1: EEPROM Erasing Pattern Table
Courtesy of NISSAN MOTOR CO., U.S.A.
