Intake Sensor

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting intake sensor harness connector M90, measure resistance between terminals 32 and 36 at sensor side, using the table below.

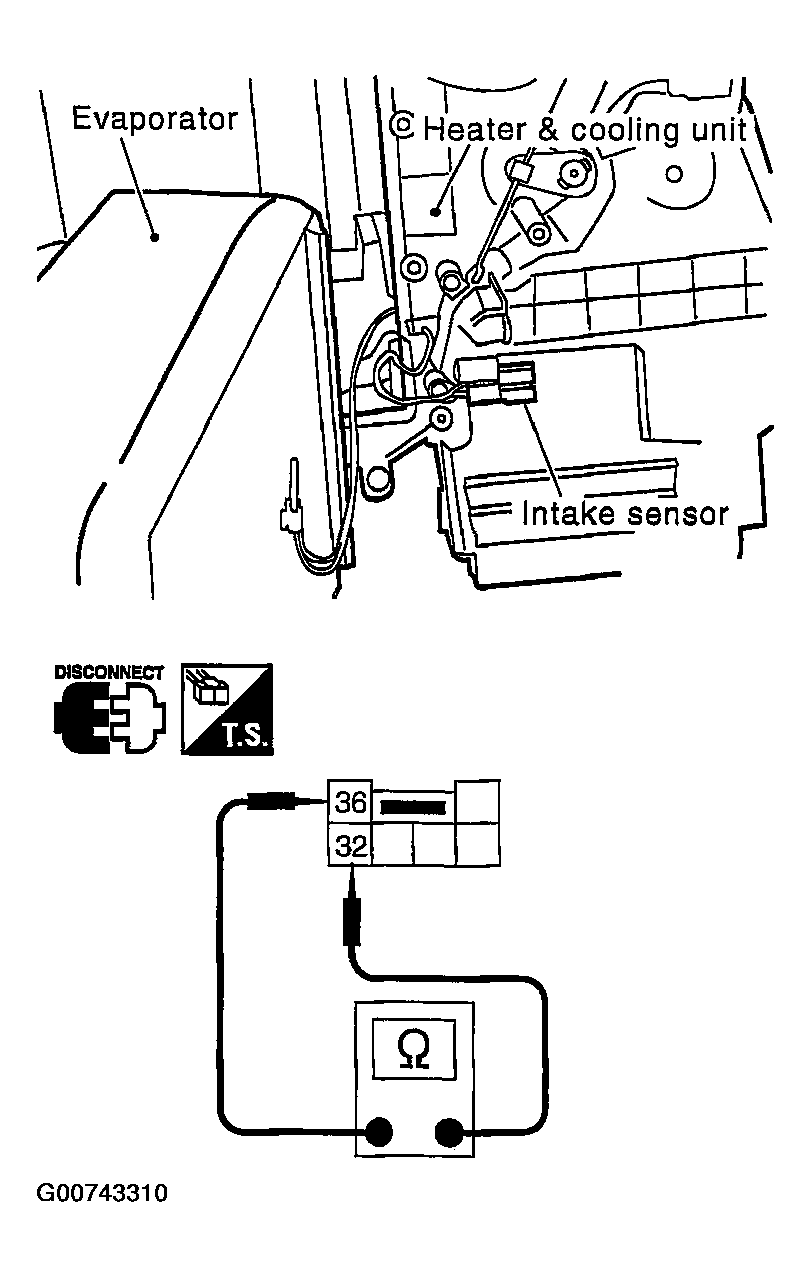

Fig 1: Identifying Intake Sensor & Components

Courtesy of NISSAN MOTOR CO., U.S.A.

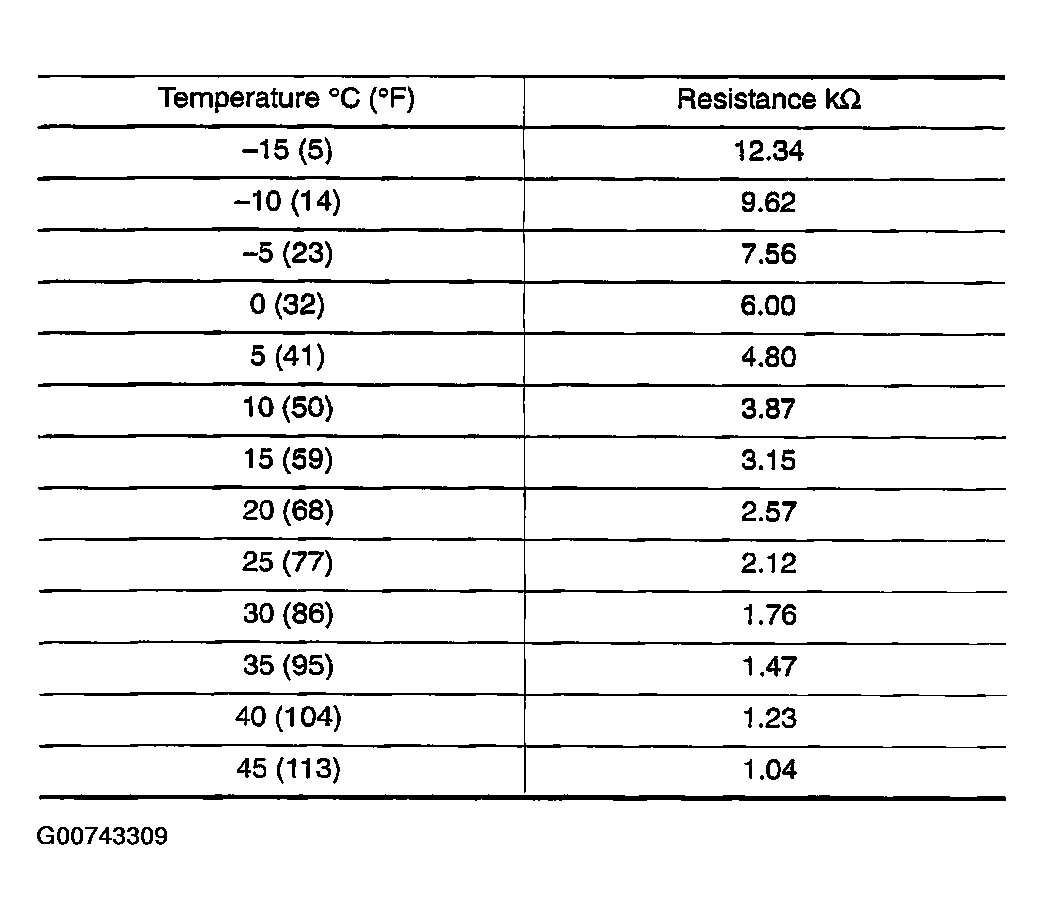

Fig 2: Determining Intake Sensor Resistance Based On Temperature

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace intake sensor.
