Diagnostic Procedure For Multiplex Communication Circuit

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

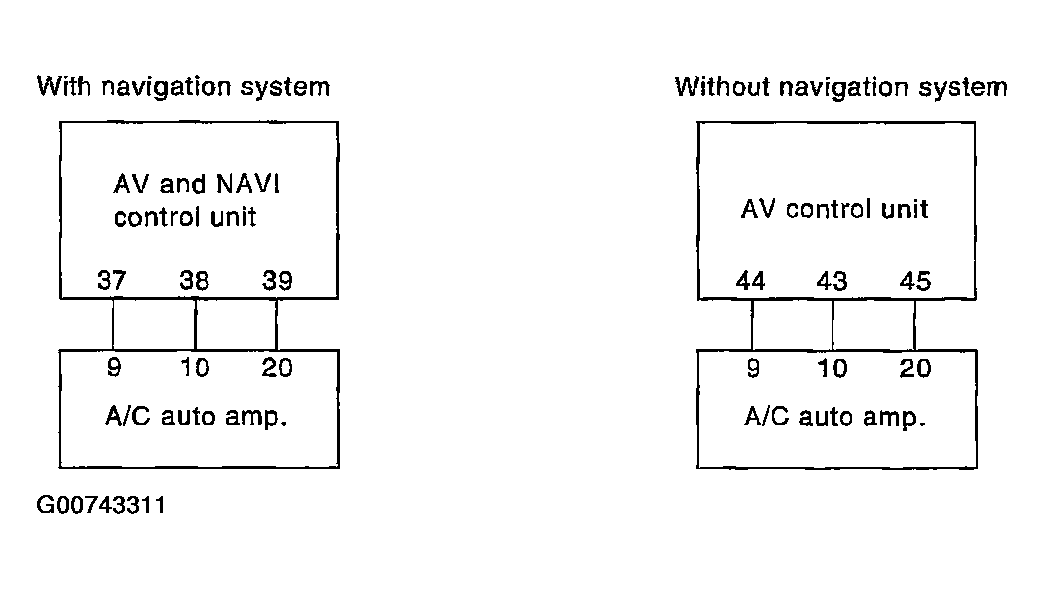

SYMPTOM:

  1. CHECK FOR AUTO AMP. OUTPUT
    1. Turn ignition switch ON.
    2. Confirm multiplex communication signal between auto amp. harness connector M119 terminal 9 (W), 20 (B) and ground using an oscilloscope.

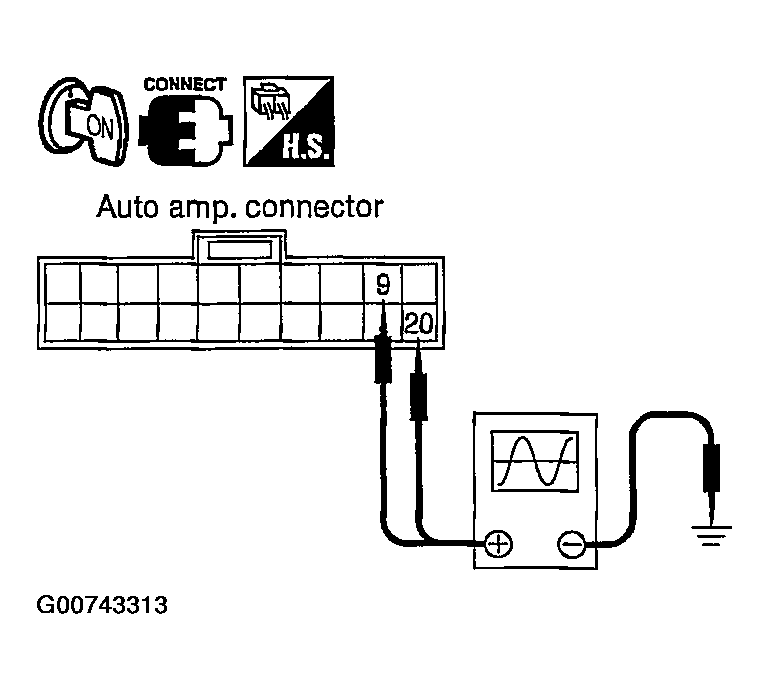

      Fig 2: Checking Auto Amp. Signal Using Oscilloscope
      G00743313Courtesy of NISSAN MOTOR CO., U.S.A.
      Fig 3: Confirming Multiplex Communication Signal Using Oscilloscope
      G00743312Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Replace auto amp.

  2. CHECK CIRCUIT CONTINUITY BETWEEN AV C/U (AV AND NAVI C/U) AND AUTO AMP.
    1. Turn ignition switch OFF.
    2. Disconnect AV C/U (AV and NAVI C/U) and auto amp. connector.
    3. Check continuity between AV and NAVI C/U harness connector B29 terminals 37 (L/W), 39 (L/R) or AV C/U harness connector M77 terminals 44 (L/W), 45 (L/R) and auto amp. harness connector M119 terminals 9 (L/W), 20 (L/R).

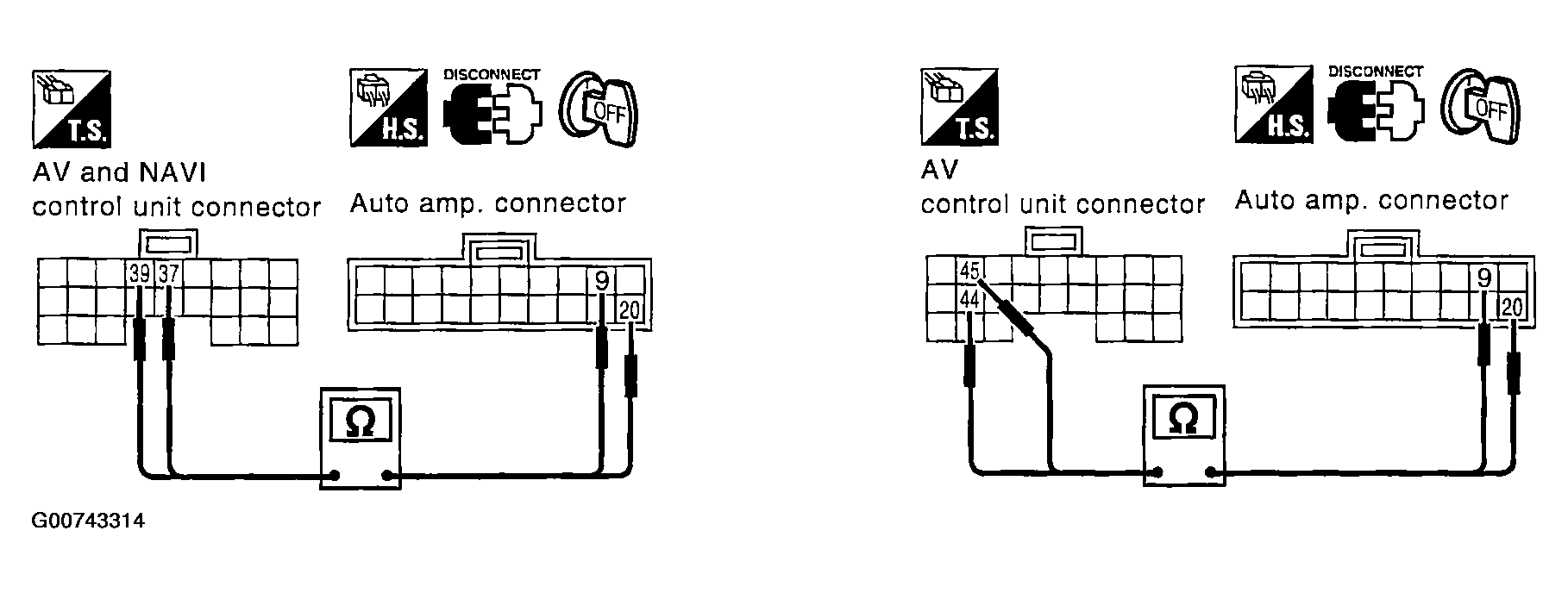

      Fig 4: Checking AV C/U (AV & NAVI C/U)-To-Auto Amp. Continuity
      G00743314Courtesy of NISSAN MOTOR CO., U.S.A.

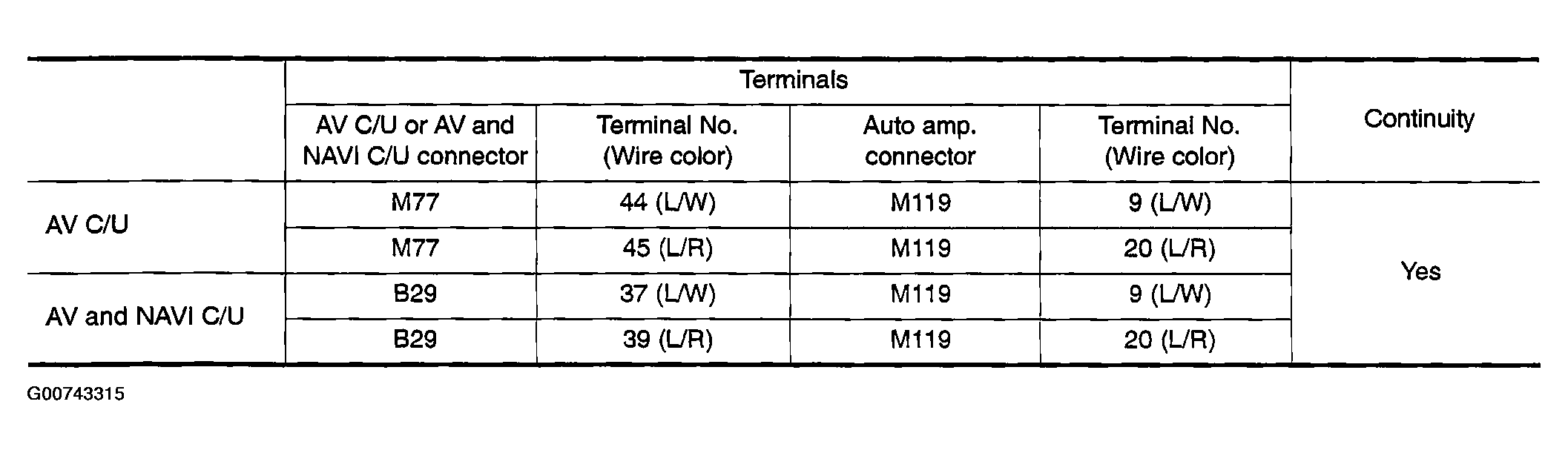

      Fig 5: Determining Continuity Based On Switch Position
      G00743315Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 3
    2. NG: Repair harness or connector.

  3. CHECK FOR AUTO AMP. INPUT
    1. Reconnect AV C/U (AV and NAVI C/U) and auto amp. connector.
    2. Turn ignition switch ON.
    3. Confirm multiplex communication signal between auto amp. harness connector M119 terminal 10 (R) and ground using an oscilloscope.

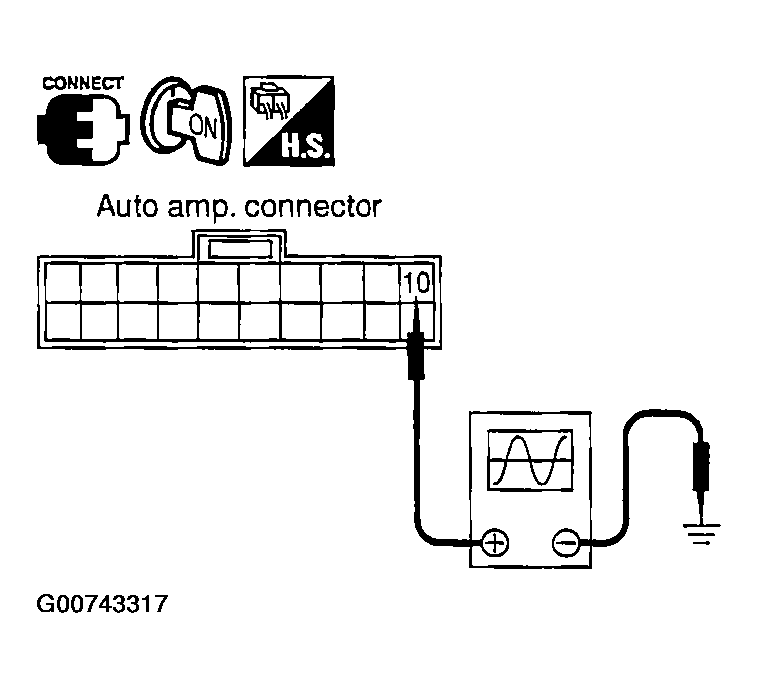

      Fig 6: Checking Auto Amp. Signal Using Oscilloscope
      G00743317Courtesy of NISSAN MOTOR CO., U.S.A.

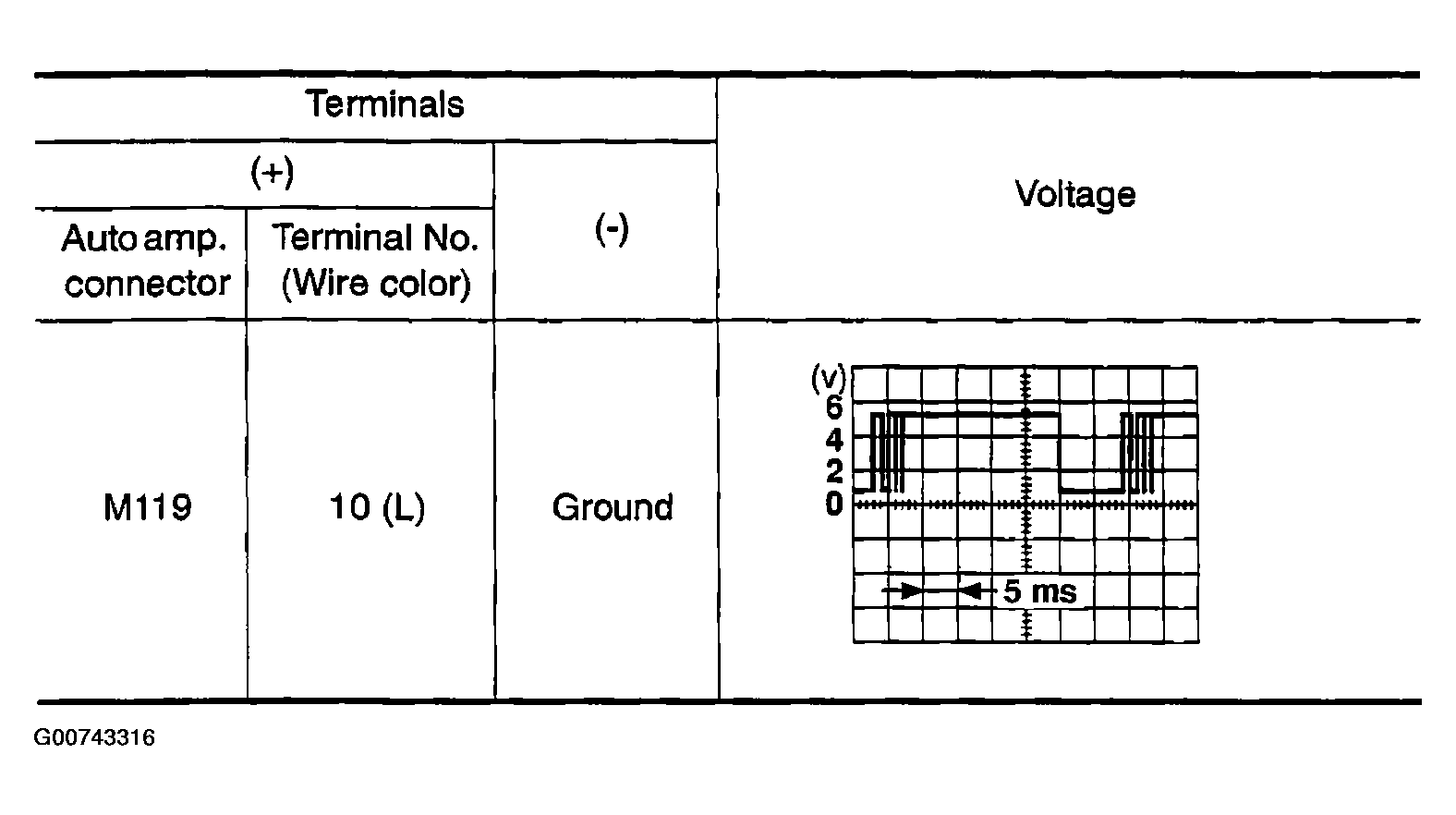

      Fig 7: Confirming Multiplex Communication Signal Using Oscilloscope
      G00743316Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  2.
    2. NG: GO TO 4.

  4. CHECK CIRCUIT CONTINUITY BETWEEN AV C/U (AV AND NAVI C/U) AND AUTO AMP.
    1. Turn ignition switch OFF.
    2. Disconnect AV C/U (AV and NAVI C/U) and auto amp. connector.
    3. Check continuity between AV and NAVI C/U harness connector B29 terminal 38 (L) or AV C/U harness connector M77 terminal 43 (L) and auto amp. harness connector M119 terminal 10 (L).

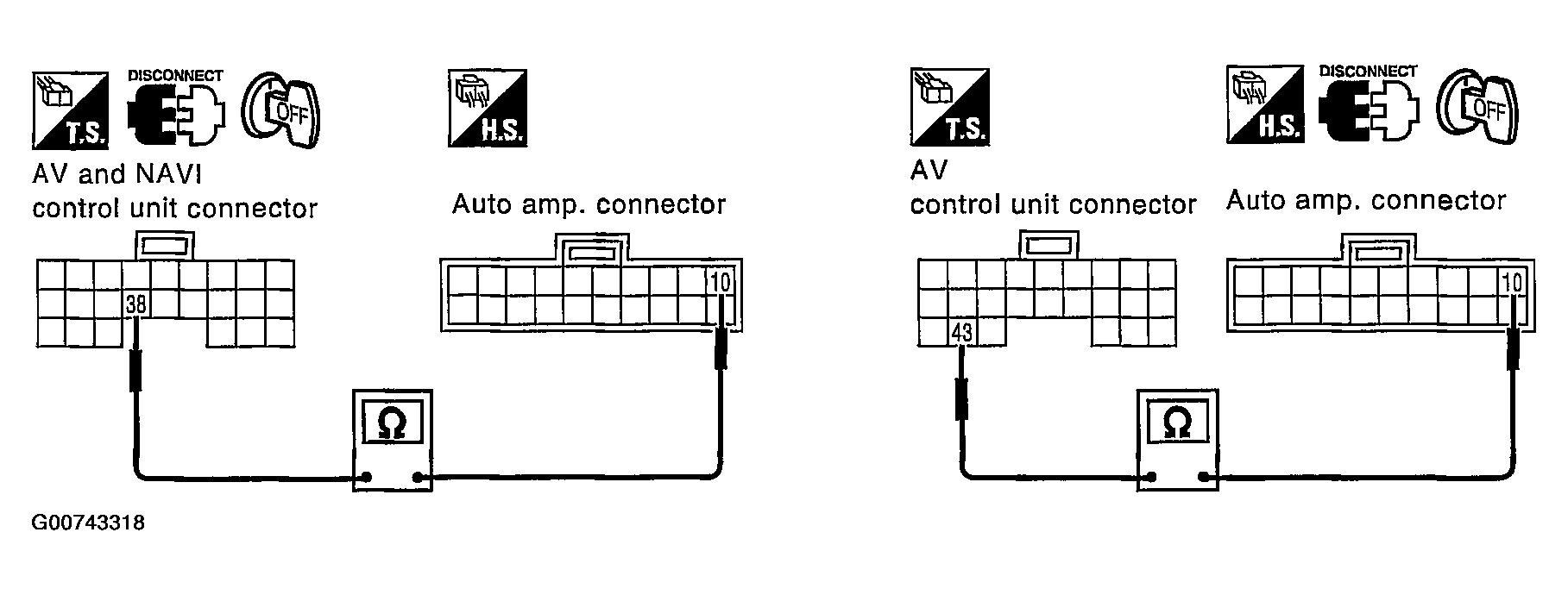

      Fig 8: Checking AV C/U (AV & NAVI C/U)-To-Auto Amp. Continuity
      G00743318Courtesy of NISSAN MOTOR CO., U.S.A.

      38 - 10: continuity should exist.

      43 - 10: continuity should exist.

    OK or NG

    1. OK: Replace auto amp.
    2. NG: Repair harness or connector.
