Diagnostic Procedure For Sunload Sensor

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM: Sunload sensor circuit is open or shorted. (25 or -25) is indicated on auto amp. as a result of conducting Self-diagnosis STEP-2.

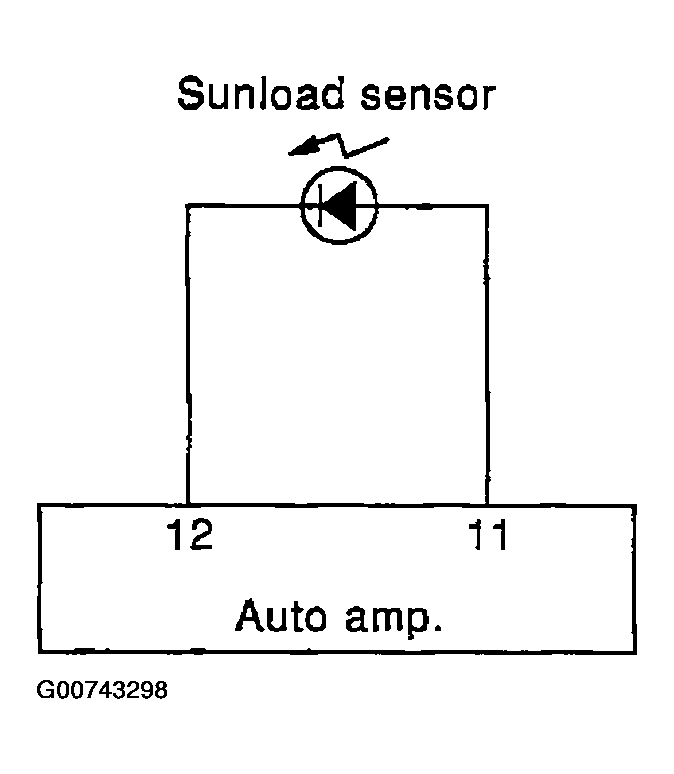

Fig 1: Identifying Sunload Sensor Circuit
G00743298Courtesy of NISSAN MOTOR CO., U.S.A.
  1. CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND GROUND
    1. Disconnect sunload sensor connector.
    2. Turn ignition switch ON.
    3. Check voltage between sunload sensor harness connector M44 terminal 1 (SB) and ground.

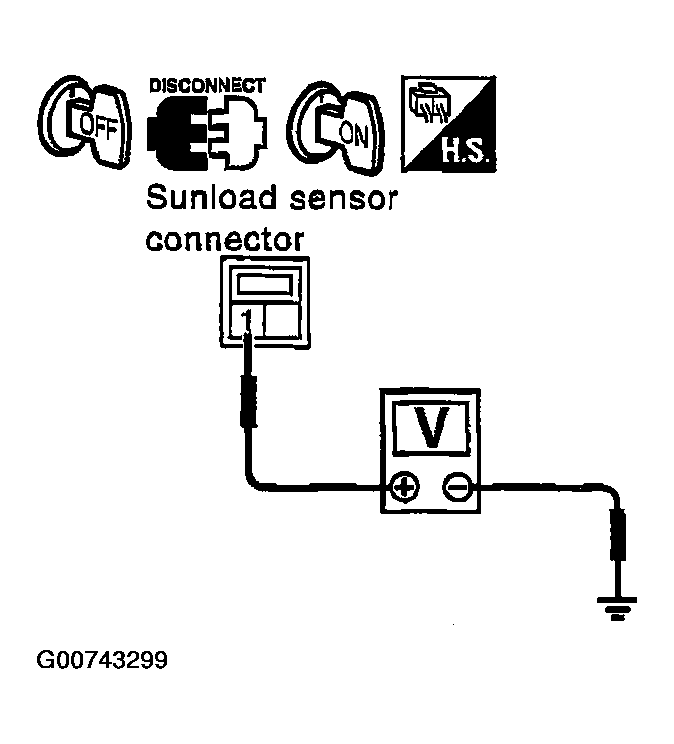

      Fig 2: Checking Sunload Sensor-To-Ground Continuity
      G00743299Courtesy of NISSAN MOTOR CO., U.S.A.

    1- Ground: Approx. 5V

    OK or NG

    1. OK: GO TO 2.
    2. NG: GO TO  4.

  2. CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND AUTO AMP.
    1. Turn ignition switch OFF.
    2. Disconnect auto amp. connector.
    3. Check continuity between sunload sensor harness connector M44 terminal 2 (R/Y) and auto amp. harness connector M119 terminal 11 (R/Y).

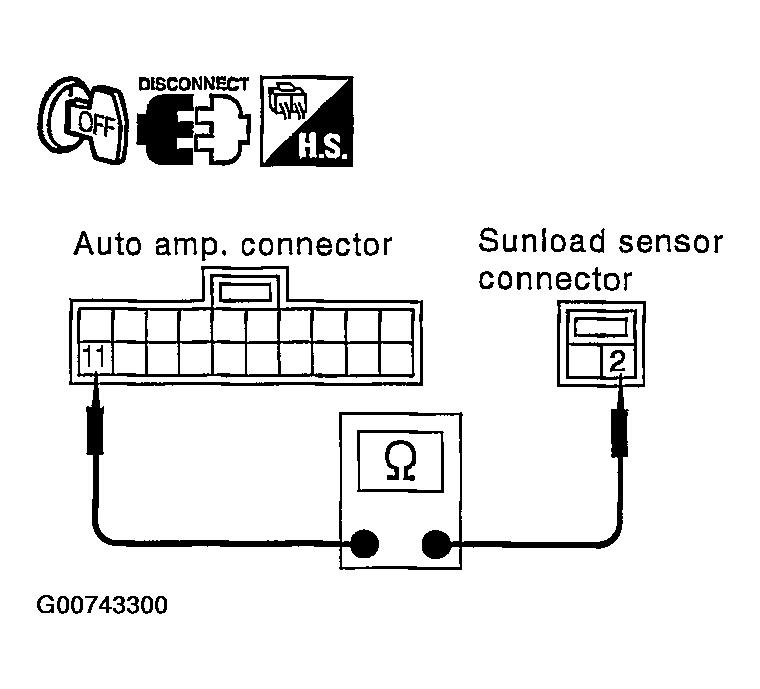

      Fig 3: Checking Sunload Sensor-To-Auto Amp. Continuity
      G00743300Courtesy of NISSAN MOTOR CO., U.S.A.

    2-11: Continuity should exist

    OK or NG

    1. OK: GO TO 3
    2. NG: Repair harness or connector.

  3. CHECK SUNLOAD SENSOR

    Refer to SUNLOAD SENSOR .

    OK or NG

    1. OK:
      1. Replace auto amp.
      2. Go to self-diagnosis FUNCTION CONFIRMATION PROCEDURE  and perform self diagnosis STEP-2. Confirm that code no. 20 is displayed.
    2. NG:
      1. Replace sunload sensor.
      2. Go to self-diagnosis FUNCTION CONFIRMATION PROCEDURE  and perform self-diagnosis STEP-2. Confirm that code no. 20 is displayed.

  4. CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND AUTO AMP.
    1. Turn ignition switch OFF.
    2. Disconnect auto amp. connector.
    3. Check continuity between sunload sensor harness connector M44 terminal 1 (SB) and auto amp. harness connector M119 terminal 12 (SB).

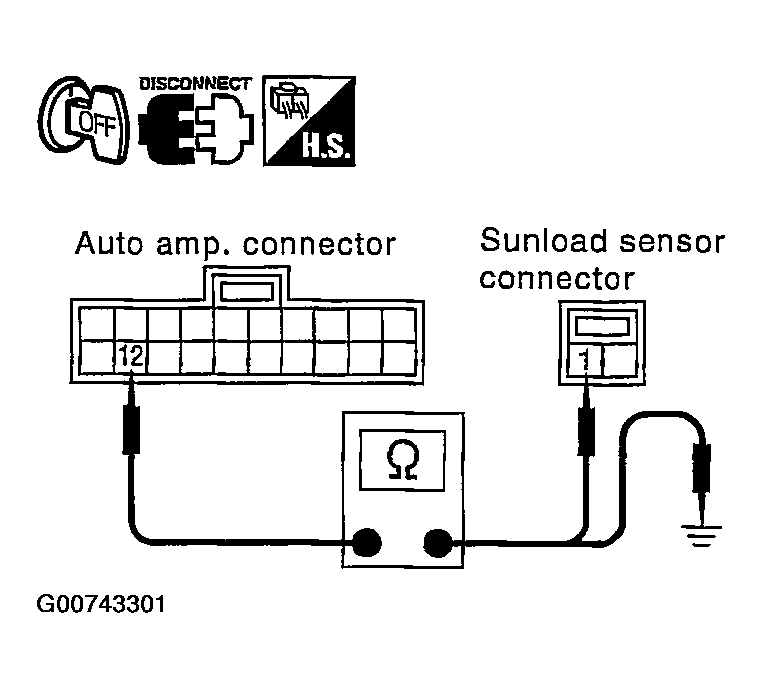

      Fig 4: Checking Sunload Sensor-To-Auto Amp. Continuity
      G00743301Courtesy of NISSAN MOTOR CO., U.S.A.

      1-12: Continuity should exist.

    4. Check continuity between auto amp. harness connector M119 terminal 12 (SB) and ground.

      12 - Ground: Continuity should not exist.

      OK or NG

      1. OK:
        1. Replace auto amp.
        2. Go to self-diagnosis FUNCTION CONFIRMATION PROCEDURE  and perform self diagnosis STEP-2. Confirm that code no. 20 is displayed.
      2. NG: Repair harness or connector.
