Engine Oil Level

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before starting engine, check the engine oil level. If engine is already started, stop it and allow 15 minutes before checking.

Put vehicle horizontally.
Pull out oil level gauge and wipe it clean.
Insert oil level gauge and check that the engine oil level is within the range shown in the figure.
If it is out of range, adjust it.

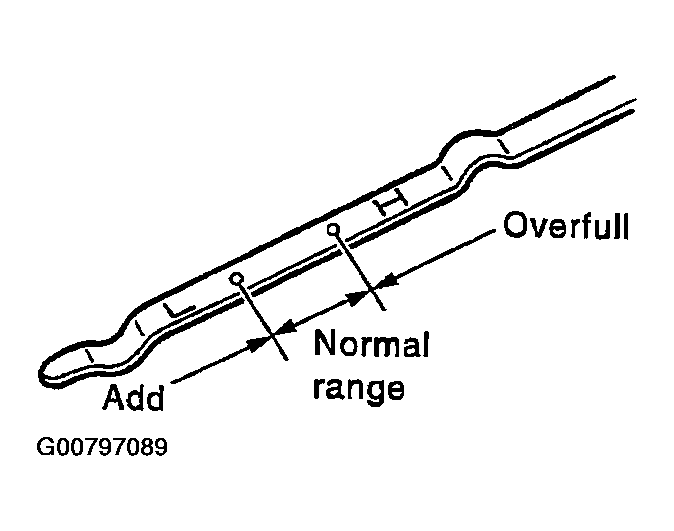

Fig 1: Checking Engine Oil Level
Courtesy of NISSAN MOTOR CO., U.S.A.
