Monitored Item

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

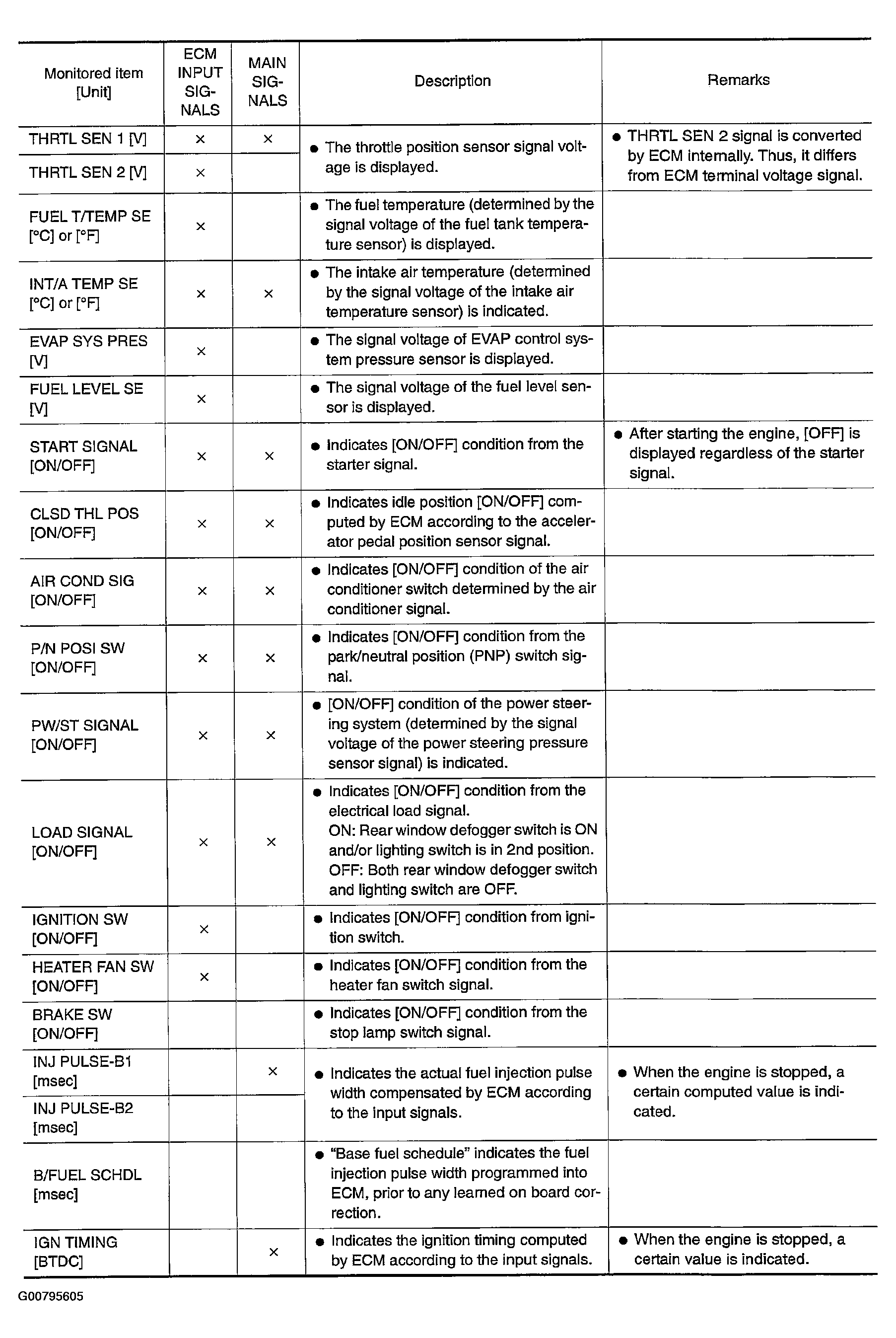

Fig 1: Identifying Data Monitor Mode Information (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

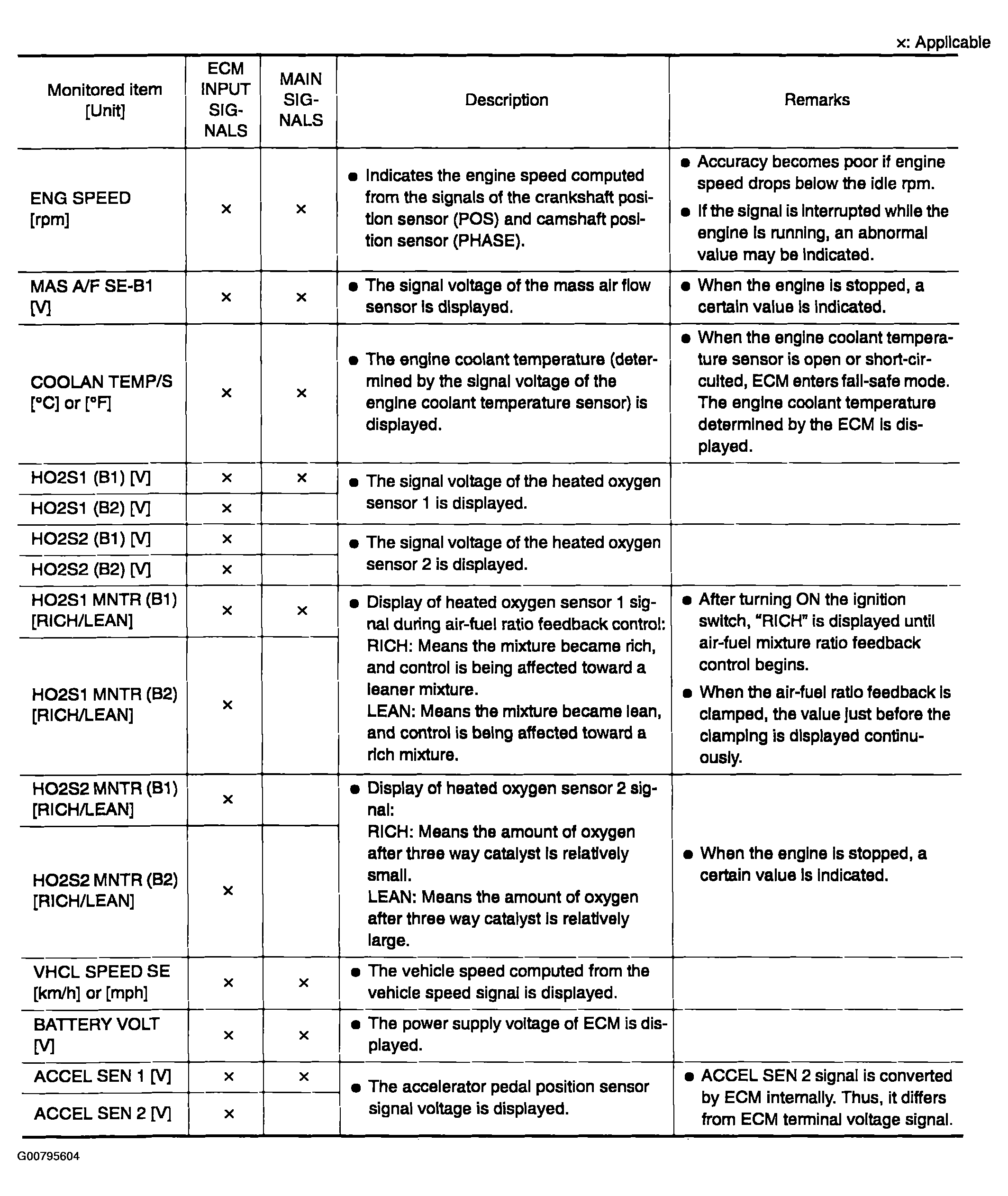

Fig 2: Identifying Data Monitor Mode Information (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

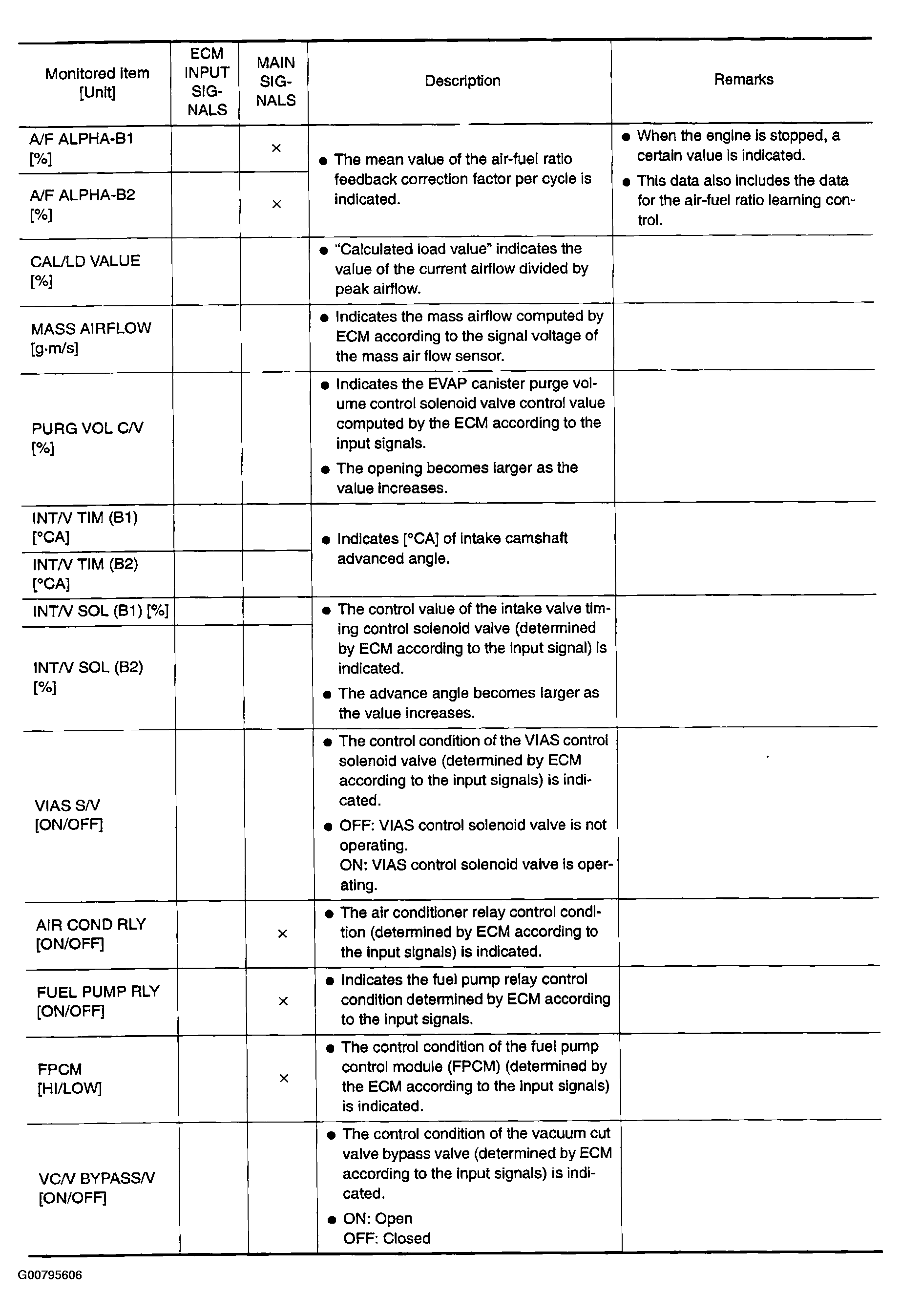

Fig 3: Identifying Data Monitor Mode Information (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

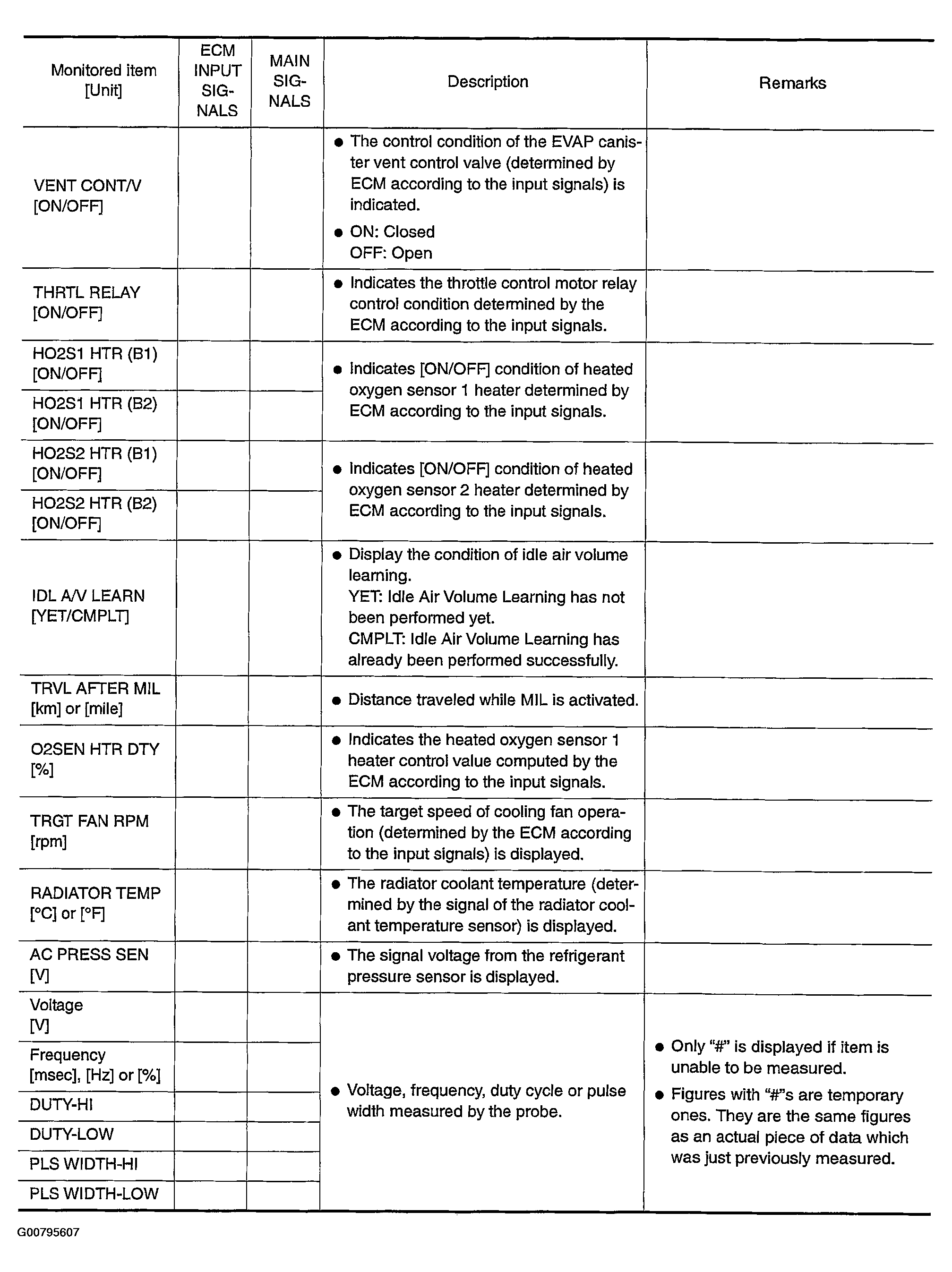

Fig 4: Identifying Data Monitor Mode Information (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
