Symptom Chart

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Always check the "Work Flow" before troubleshooting. Refer to WORK FLOW .
Before carrying out the inspection on the following table, carry out the preliminary check.
Refer to PRELIMINARY CHECK .

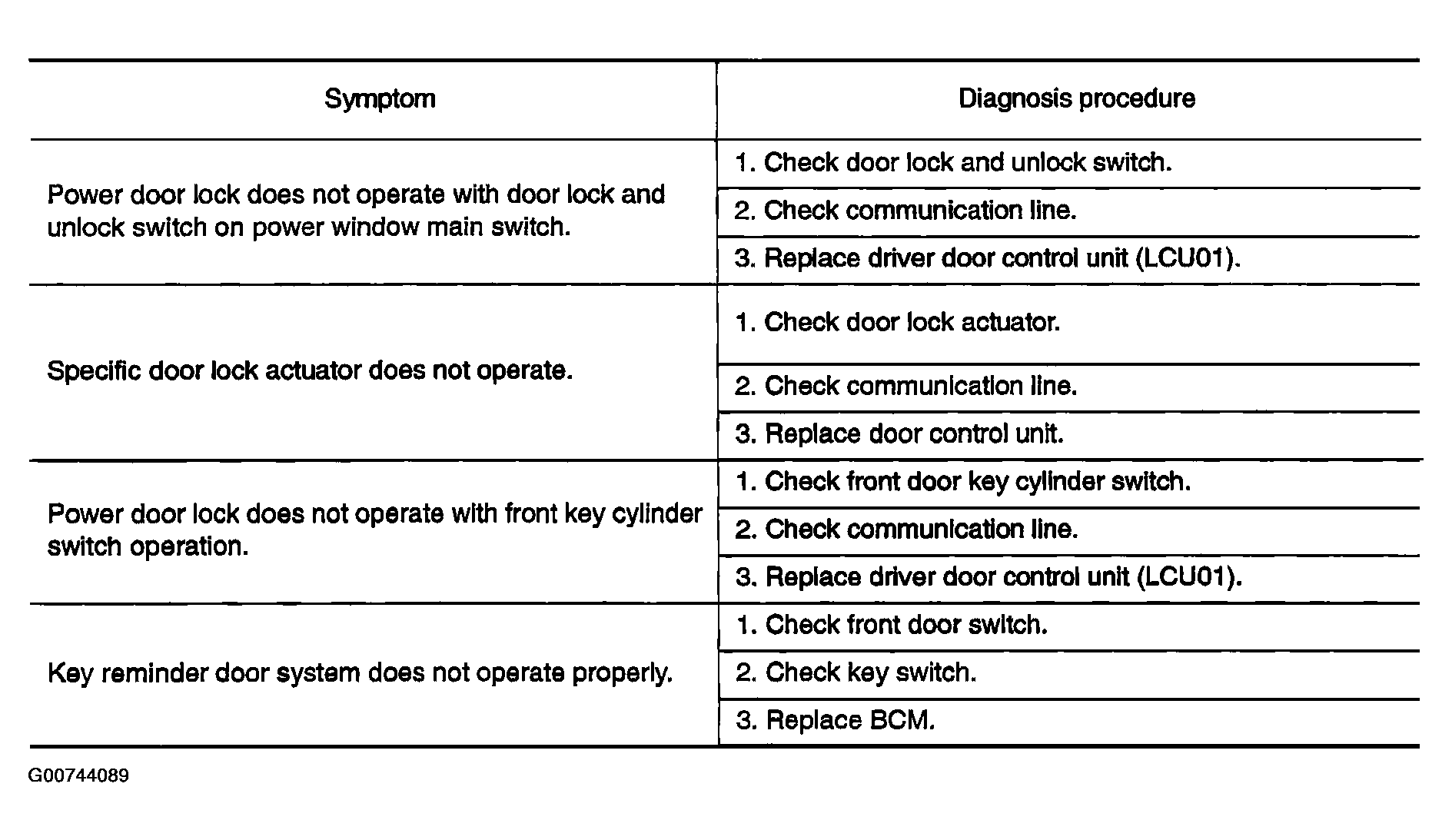

Fig 1: Symptom Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
