Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Flywheel removal may require use of special tool J-46531 (TP55 Torx Plus driver) for M/T flywheel bolts. See ESSENTIAL TOOL: TORX DRIVER FOR FLYWHEEL BOLTS for more information.

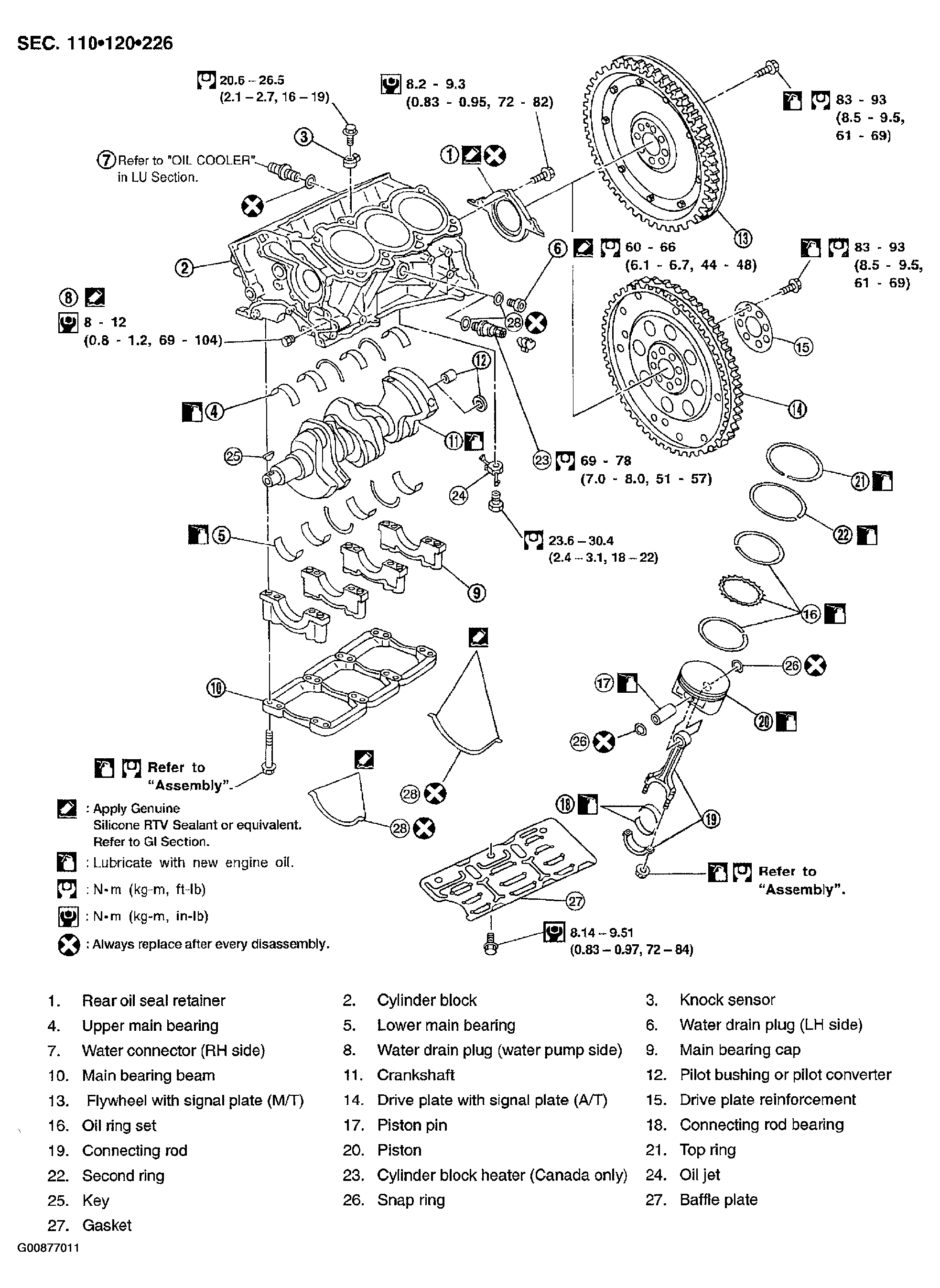

Fig 1: Cylinder Block Disassembly And Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Apply new engine oil to parts as marked in illustrations before installation.
Place removed parts such as bearings and bearing caps in their proper order and direction.
When installing the connecting rod nuts, and main bearing cap bolts, apply new engine oil to the threads and mating surfaces
Do not allow any magnetic materials to contact the signal plate teeth on the drive plate.

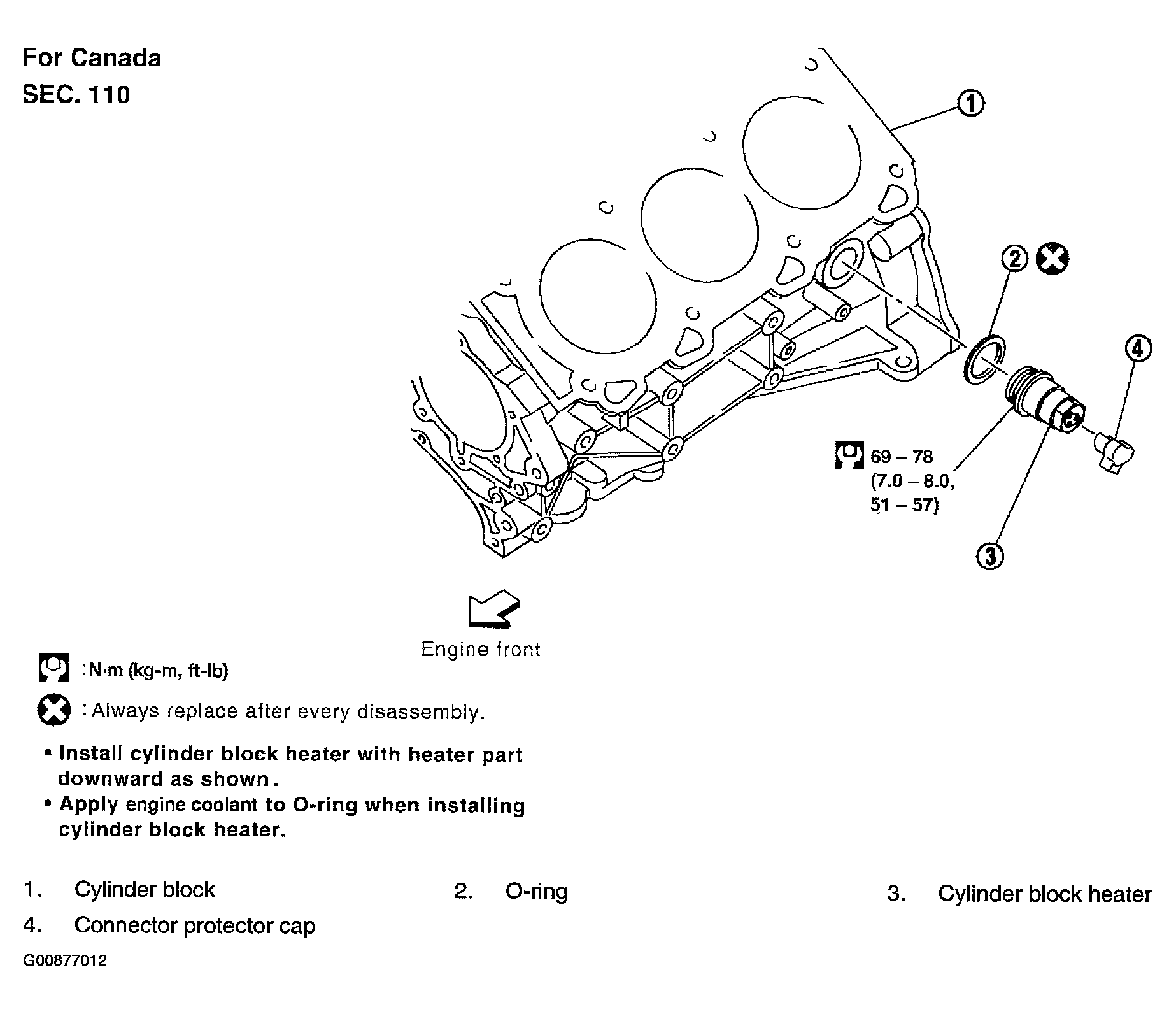

Fig 2: Cylinder Block Heater (For Canada)

Courtesy of NISSAN MOTOR CO., U.S.A.
