Timing Chain: Inspection

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check for cracks and any excessive wear at the roller links of the timing chain. Replace the timing chain as necessary.

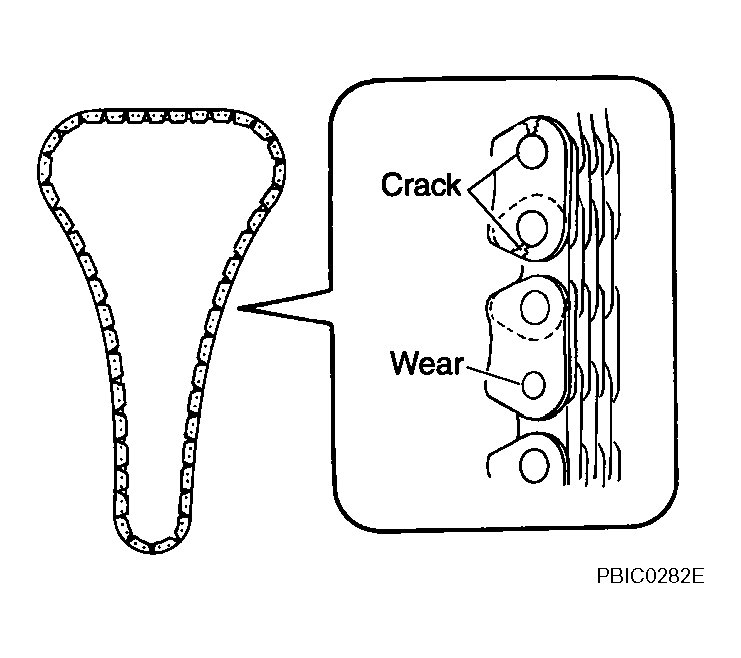

Fig 1: Inspecting Timing Chain
G04215466Courtesy of NISSAN MOTOR CO., U.S.A.
