Removal And Installation Of Control Device And Cable

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

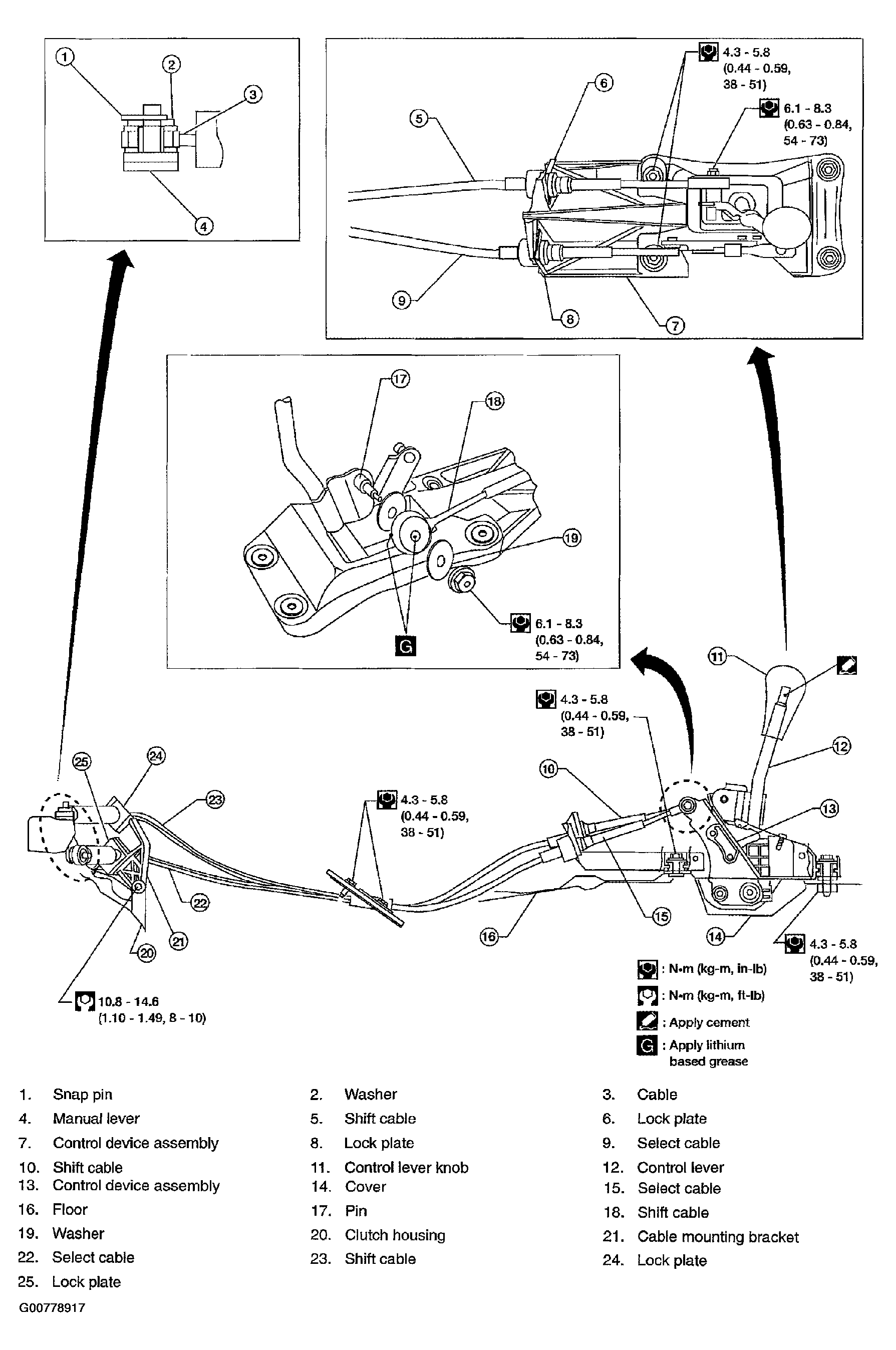

Fig 1: Exploded View Of Control Linkage

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Note that the select side lock plate for securing the control cable is different from the one on the shift side.
After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st, 2nd, or Reverse.
