M/T Oil: Replacement: Filling
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

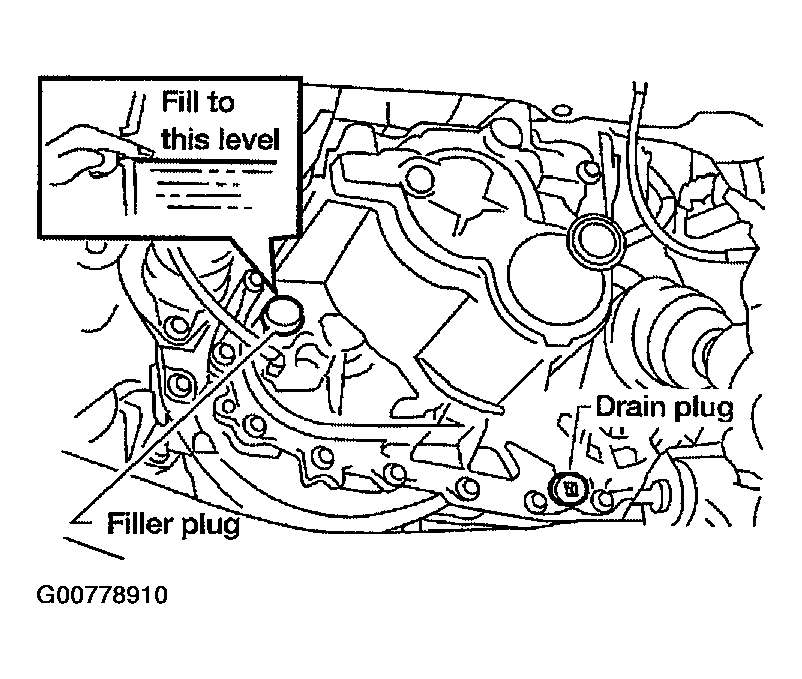

- Remove filler plug. Fill with new oil until oil level reaches the specified limit near filler plug mounting hole as shown.
Oil grade : Genuine Nissan Manual Transmission Fluid (MTF) HQ Multi 75W-85.
Capacity : Approximately 2.3 l (2 3/8 qt, 2 lmp qt)
- After refilling oil, check oil level. Assemble a new gasket on to filler plug, then install it in transaxle body.
Filler plug : 30 - 39 N-m (3.1 - 4.0 kg-m, 23 - 28 ft-lb)
CAUTION: Do not reuse gasket.
