Shift Fork

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check if the width of the shift fork hook (sliding area with coupling sleeve) is within specification, as shown. See Fig 1 and Figure .

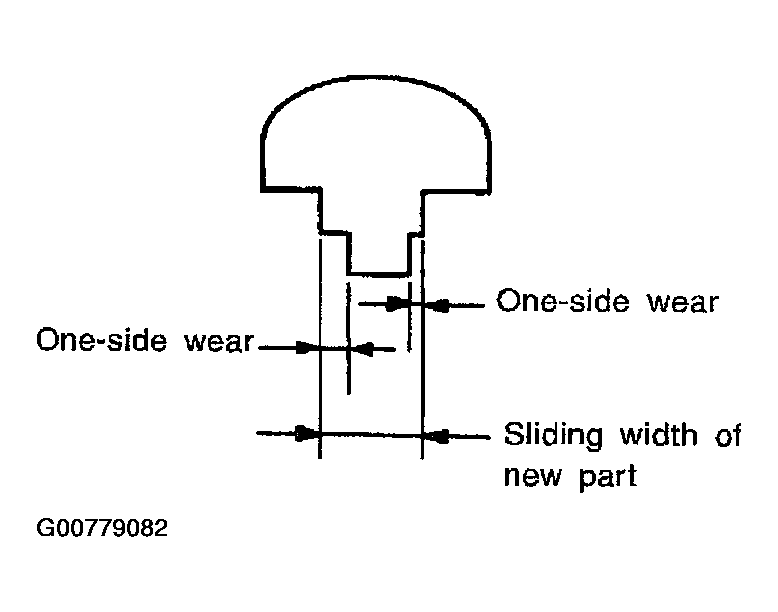

Fig 1: Check If The Width Of The Shift Fork Hook (Sliding Area With Coupling Sleeve) Is Within Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

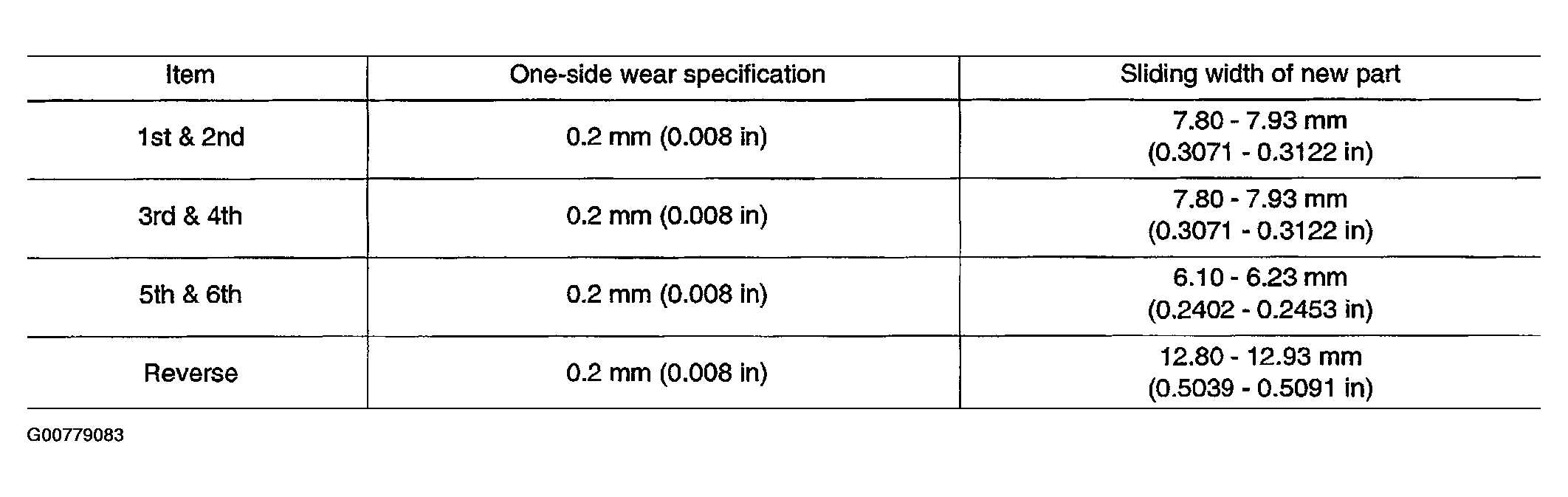

Fig 1: Shift Fork Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
