Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse order of removal.

CAUTION: When installing the transaxle, do not allow the transaxle input shaft to make contact with the clutch cover.

When installing the transaxle to the engine, use the specified tightening torque in the numerical sequence as shown.

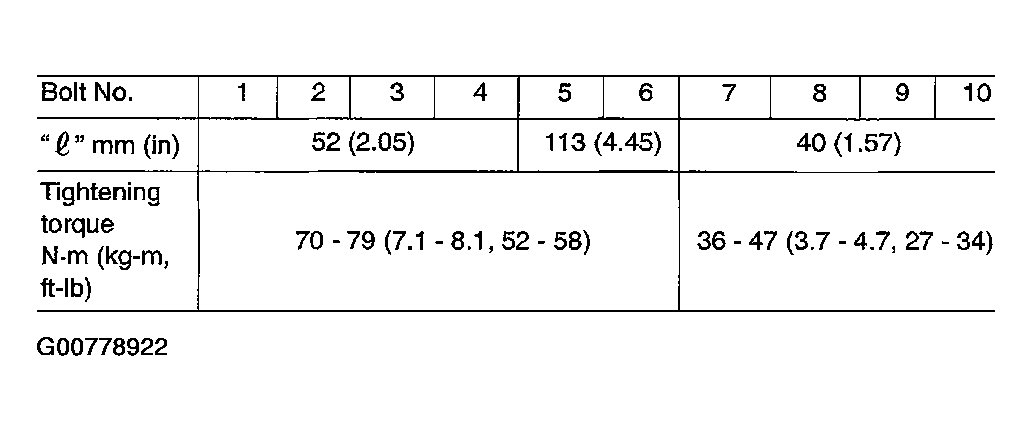

Fig 1: Use Specified Tightening Torque As Shown

Courtesy of NISSAN MOTOR CO., U.S.A.

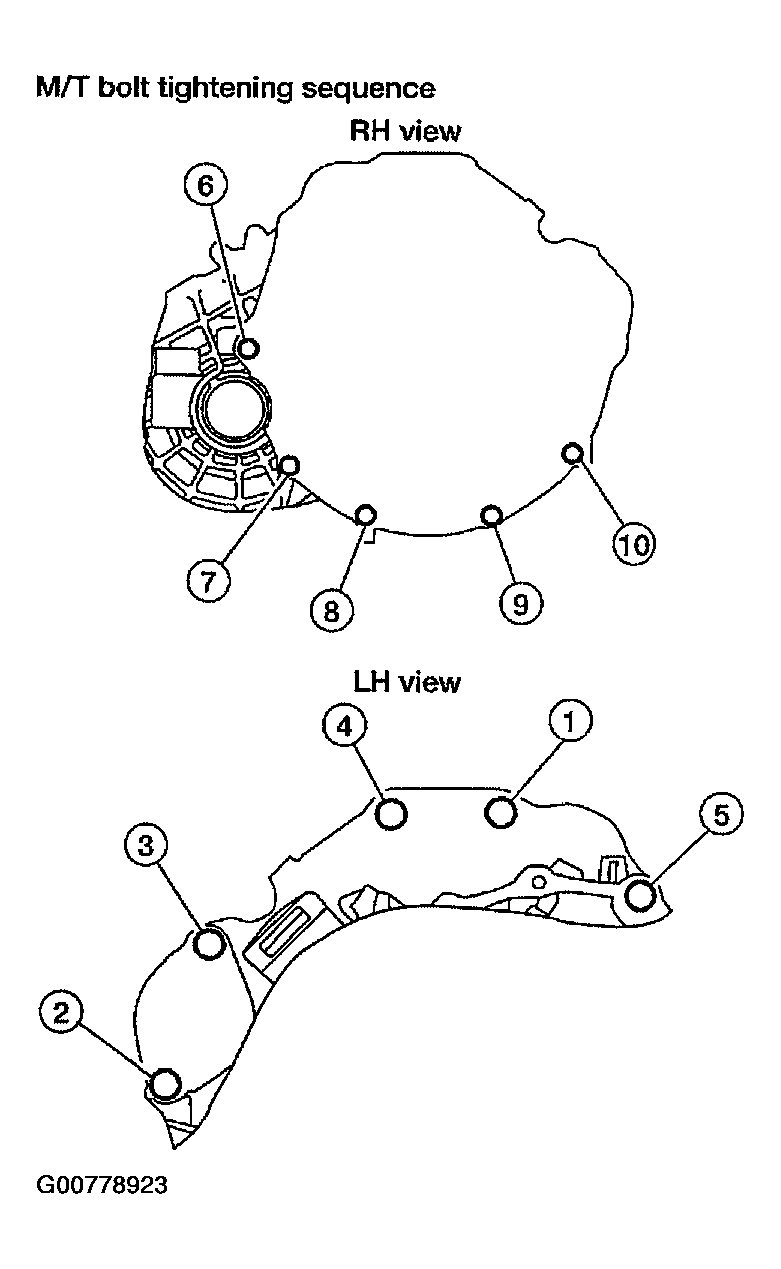

Fig 2: Use The Numerical Sequence As Shown

Courtesy of NISSAN MOTOR CO., U.S.A.

After installation, check the transaxle oil level, and check for any leaks and any loose mechanisms.
