DTC P0710 A/T Fluid Temperature Sensor Circuit: Description: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

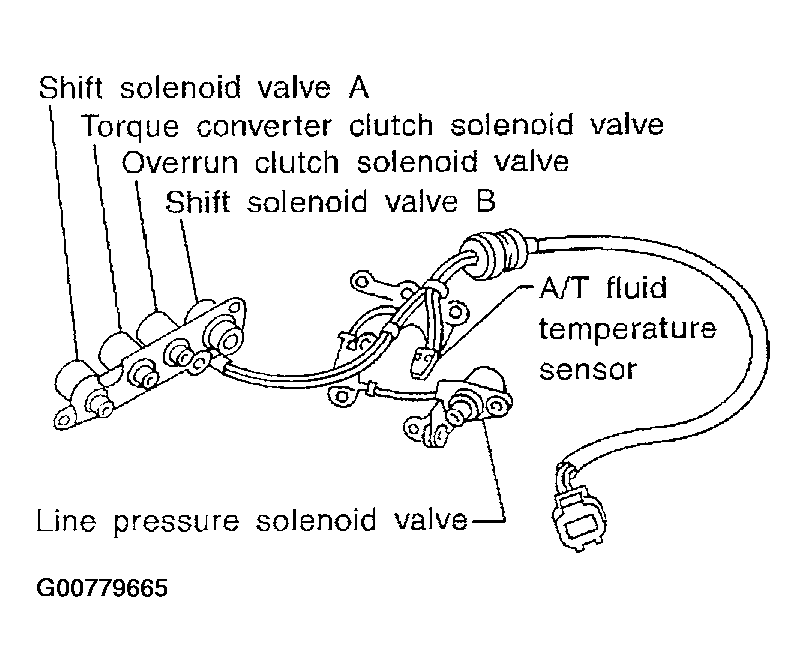

Fig 1: Identifying A/T Fluid Temperature Sensor
G00779665Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: A/T Fluid Temperature Sensor Sends A Voltage Signal To The TCM
G00779666Courtesy of NISSAN MOTOR CO., U.S.A.
