CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.

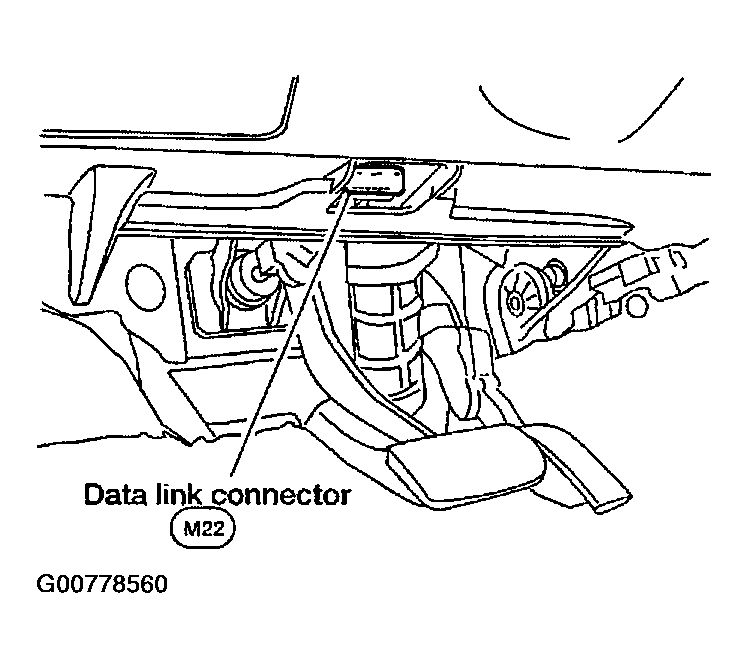

    Fig 1: Locating data link connector (DLC)
    G00778560Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch to ON position. (Do not start engine.)
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Display Screen
    G00778561Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T".

    If "A/T is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: CONSULT-II Display Screen
    G00778562Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DTC WORK SUPPORT".
    Fig 4: CONSULT-II Display Screen
    G00778563Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch select item menu (1ST, 2ND, etc.).

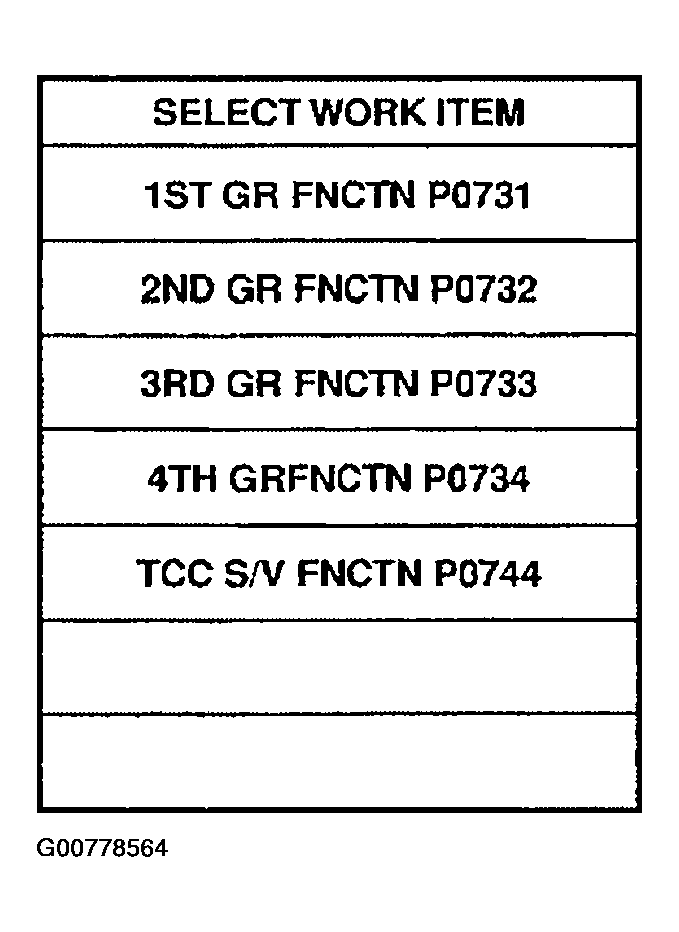

    Fig 5: CONSULT-II Display Screen
    G00778564Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "START".

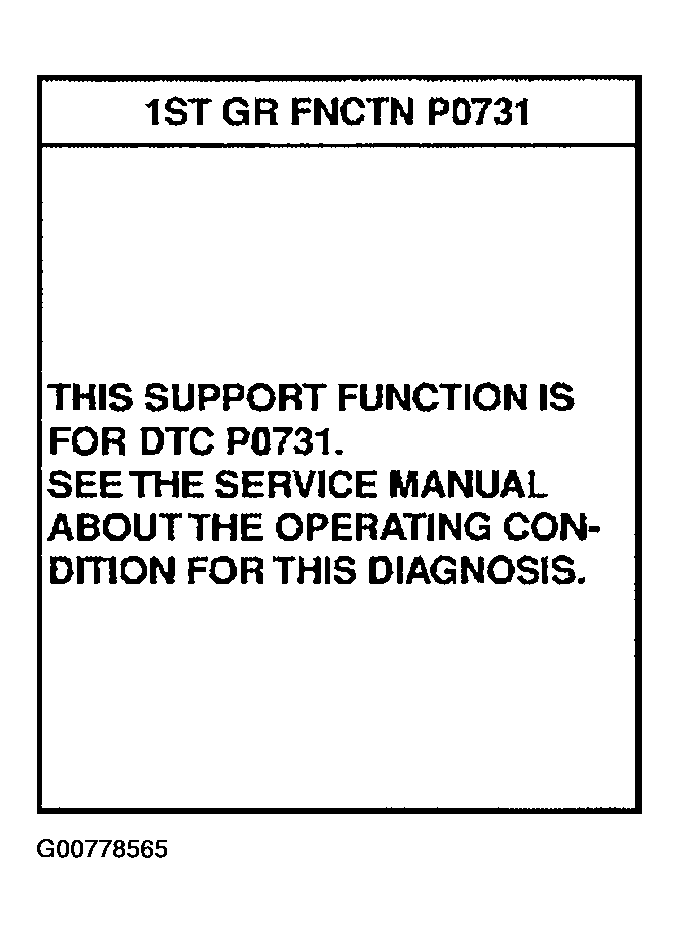

    Fig 6: CONSULT-II Display Screen
    G00778565Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

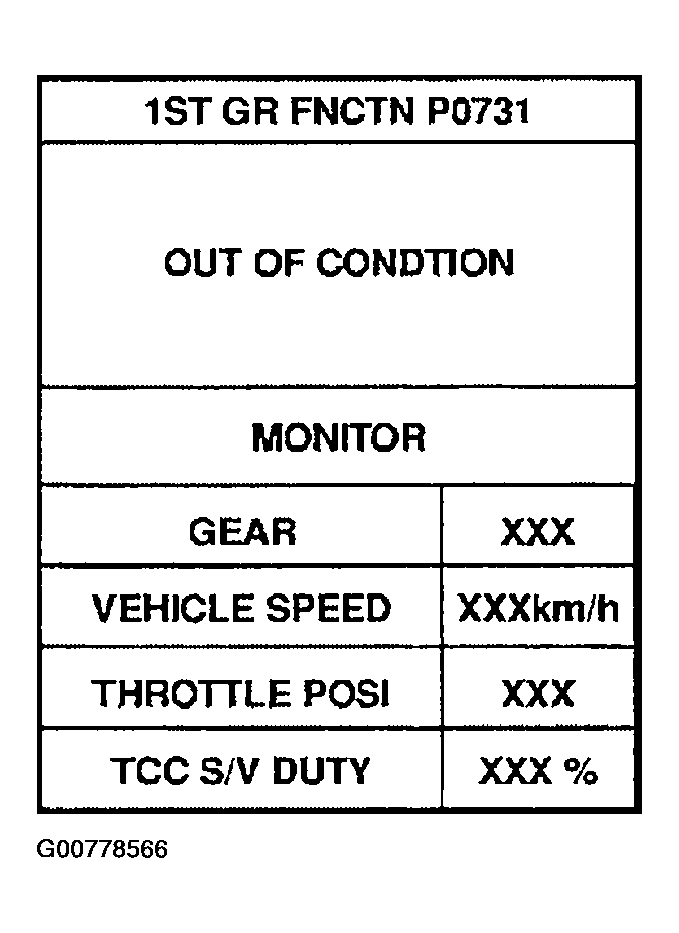

    Fig 7: CONSULT-II Display Screen
    G00778566Courtesy of NISSAN MOTOR CO., U.S.A.
    • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

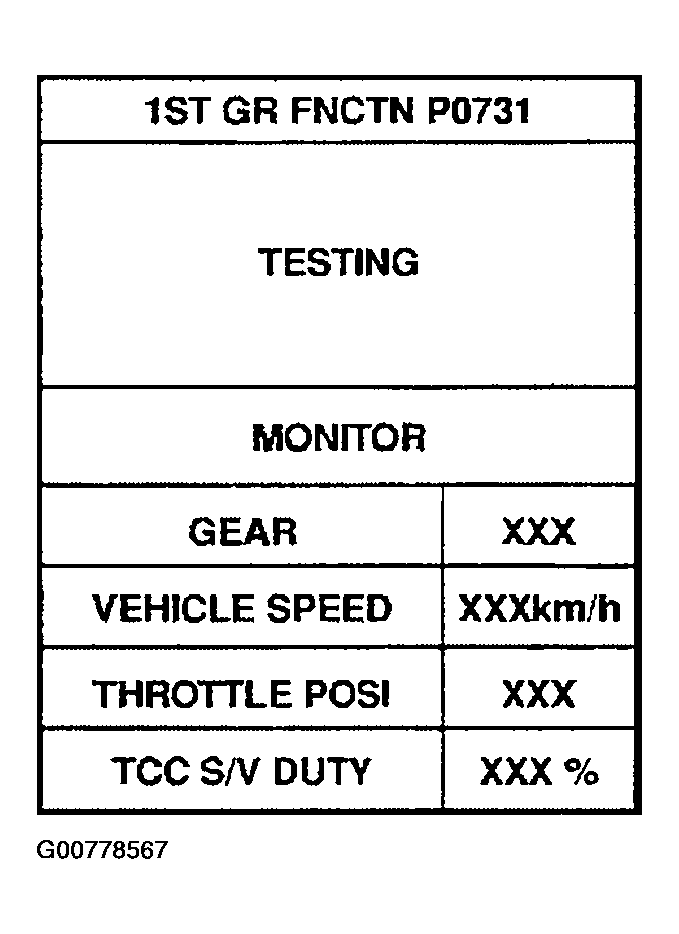

      Fig 8: CONSULT-II Display Screen
      G00778567Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
    Fig 9: CONSULT-II Display Screen
    G00778568Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 10: CONSULT-II Display Screen
    G00778569Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Perform test drive to check gear shift feeling in accordance with instructions displayed.

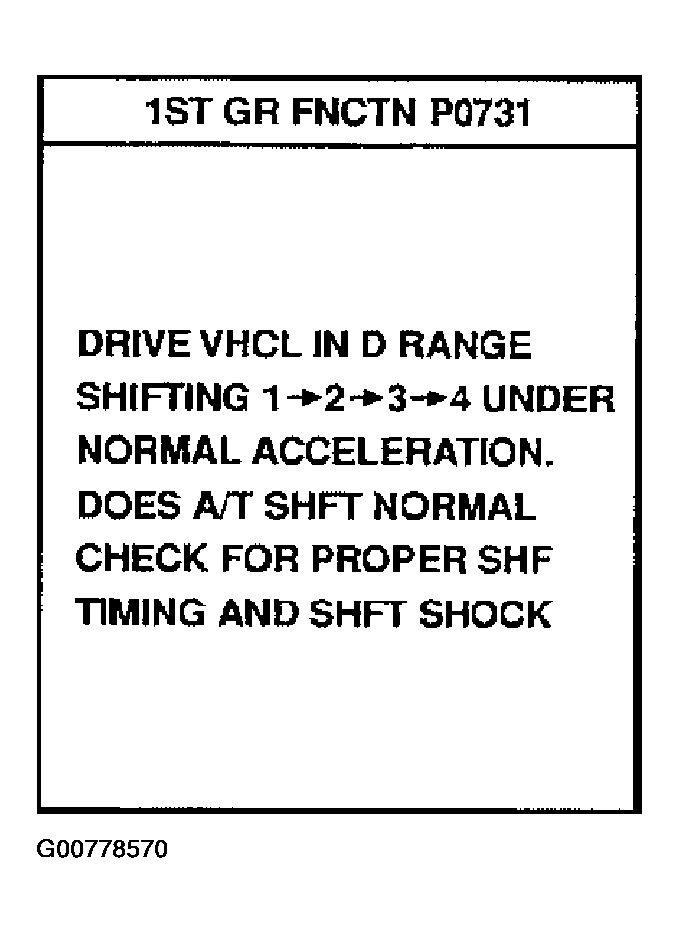

    Fig 11: CONSULT-II Display Screen
    G00778570Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Touch "YES" or "NO".

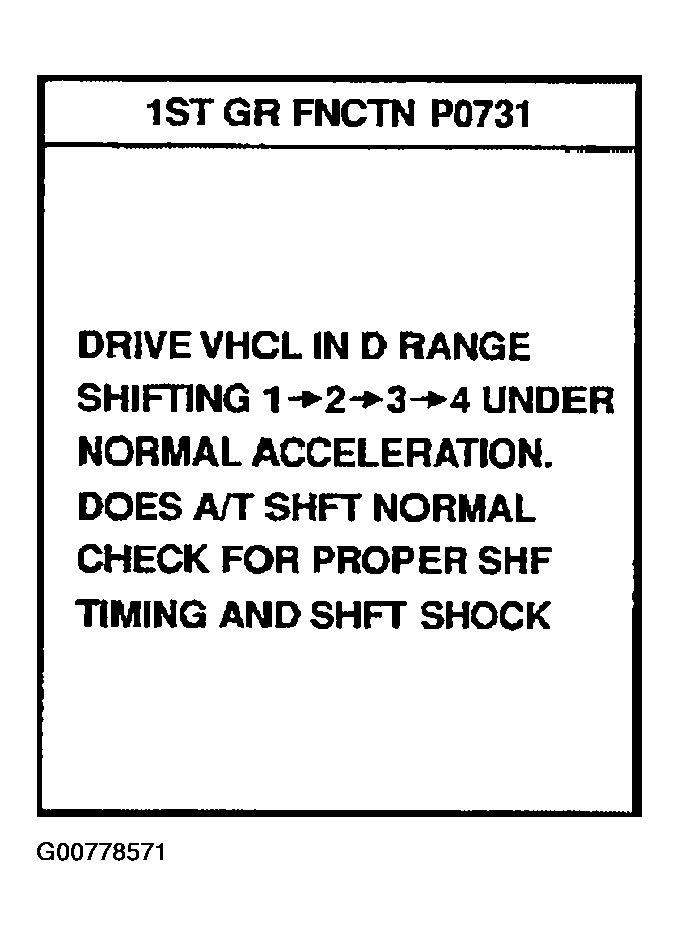

    Fig 12: CONSULT-II Display Screen
    G00778571Courtesy of NISSAN MOTOR CO., U.S.A.
  13. CONSULT-II procedure ended.

    If "NG" appears on the scene, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

    Fig 13: CONSULT-II Display Screen
    G00778572Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 14: CONSULT-II Display Screen
    G00778573Courtesy of NISSAN MOTOR CO., U.S.A.
