Multiple Switch

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

The continuity of multiple switch is described in two ways as shown below.

The switch chart is used in schematic diagrams.
The switch diagram is used in wiring diagrams.

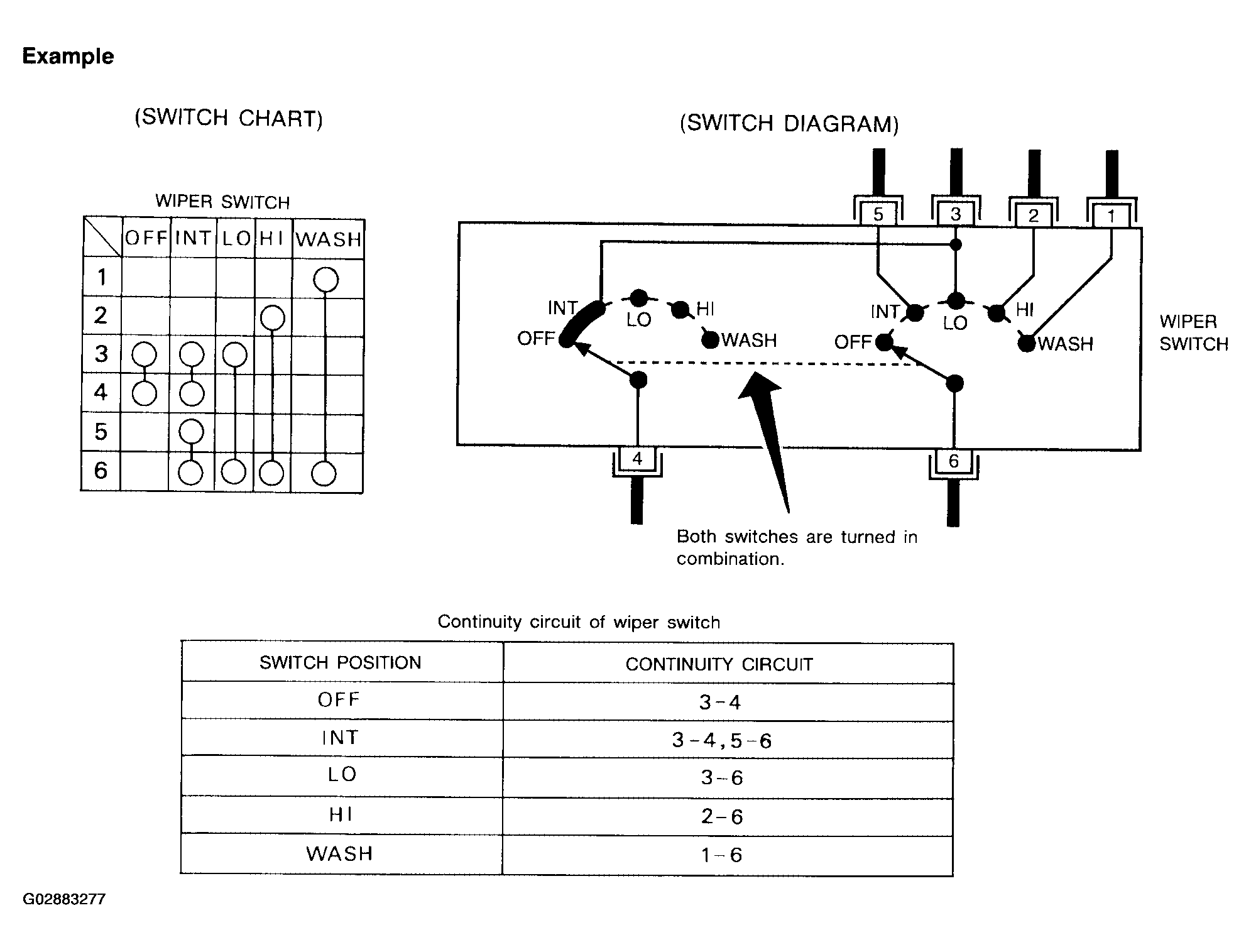

Fig 1: Switch Diagram - Multiple Switch (Example)
Courtesy of NISSAN MOTOR CO., U.S.A.
