Male Terminal: Notes

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Carefully probe the contact surface of each terminal using a "T" pin.

Do not bend terminal.

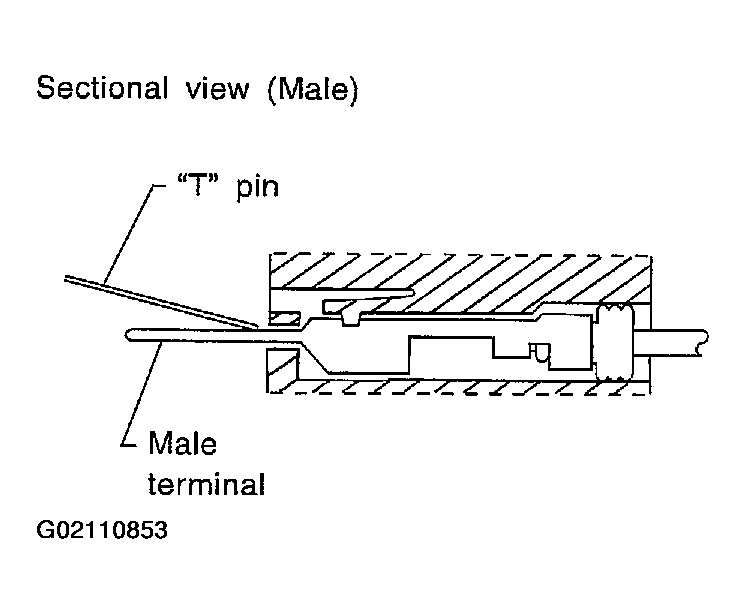

Fig 1: Probing Male Terminal From Terminal Side
G02110853Courtesy of NISSAN MOTOR CO., U.S.A.
