Revolution Sensor Replacement: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove intake air duct.
  2. Disconnect electrical connector.
  3. Remove revolution sensor from A/T.

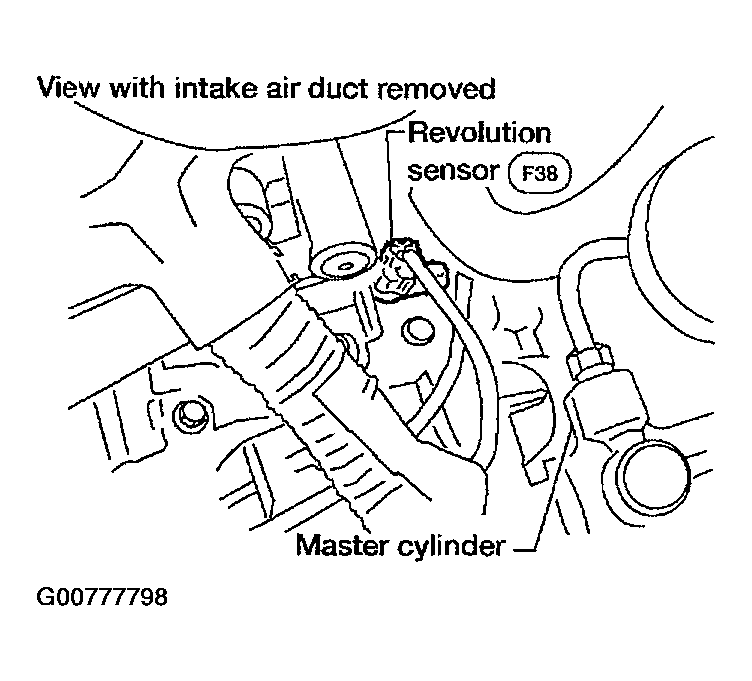

Fig 1: Locating Revolution Sensor
G00777798Courtesy of NISSAN MOTOR CO., U.S.A.
