Check Door Switch (With Navigation System)

First perform the "SELF-DIAG RESULTS"in "BCM"with CONSULT-II, then perform the each trouble diagnosis of malfunction system indicated "SELF-DIAG RESULTS"of "BCM", Refer to CONSULT-II FUNCTION (BCM) .

1. Check door switch input signal  .

   With CONSULT-II

   Check door switches ("DOOR SW-DR"and "DOOR SW-AS") in "DATA MONITOR"mode with CONSULT-II.

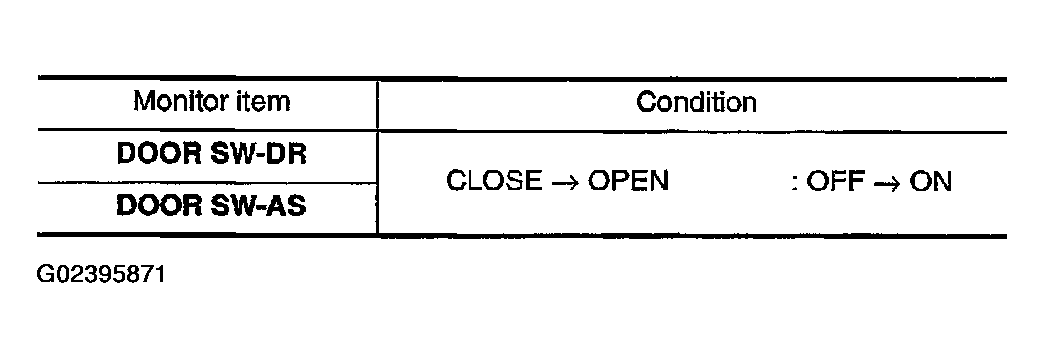

   Fig 1: Displaying Monitor Item & Condition

   Courtesy of NISSAN MOTOR CO., U.S.A.

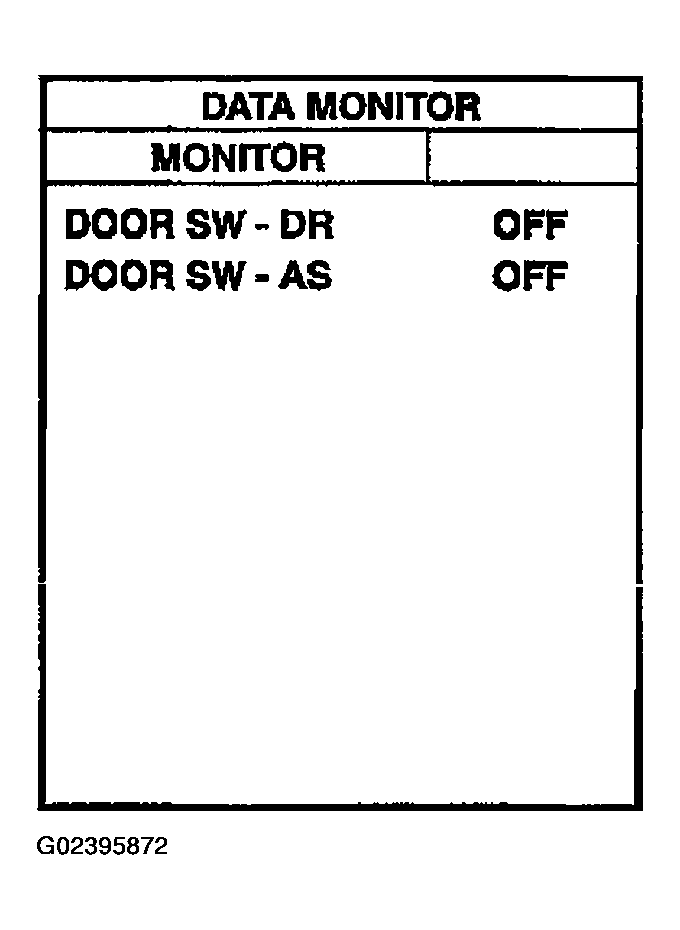

   Fig 2: Displaying DATA MONITOR Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Without CONSULT-II

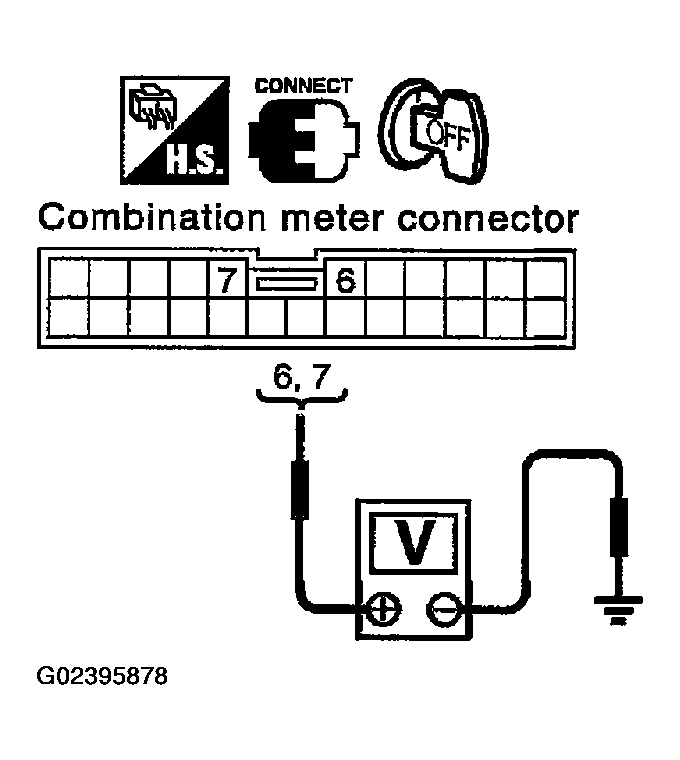

   Check voltage between combination meter connector M19 terminals 7, 6 and ground.

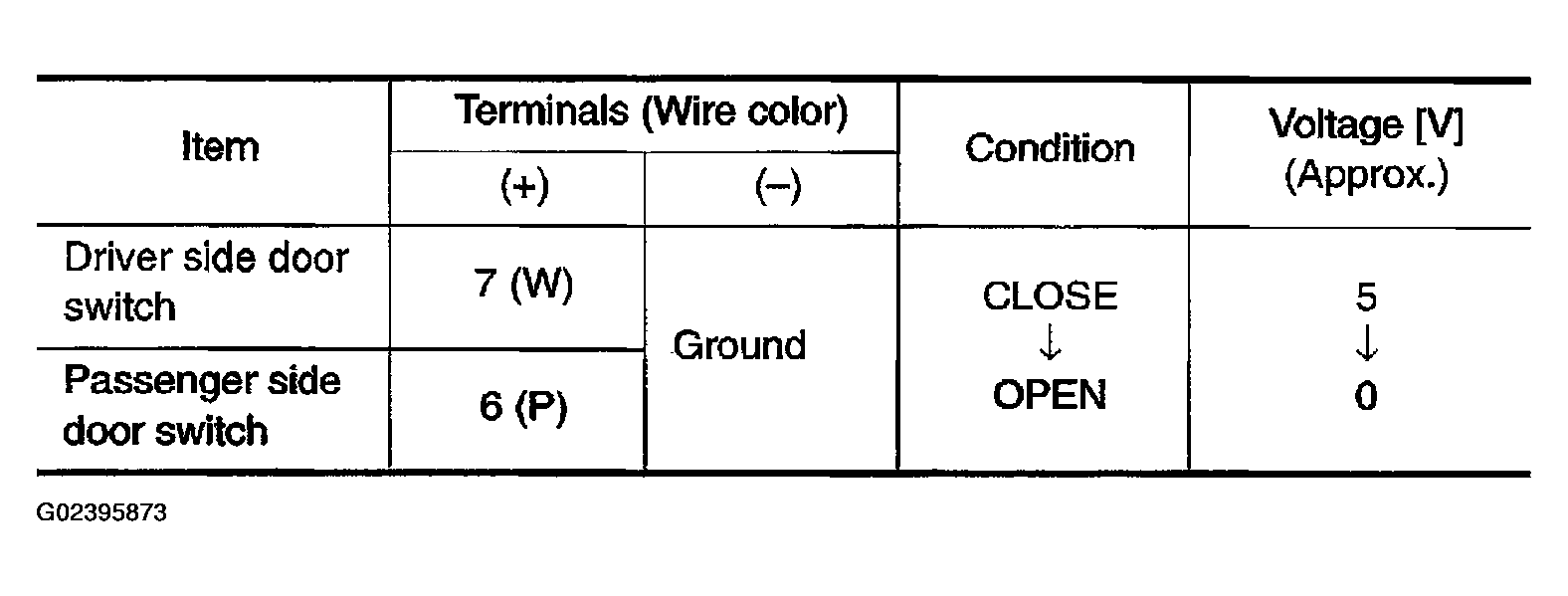

   Fig 3: Displaying Terminal Voltage Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK : Door switch circuit is OK.
   2. NG : GO TO  2 .
   Fig 4: Checking Voltage At Combination Meter Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check door switch circuit  .
   1. Turn ignition switch OFF.
   2. Disconnect door switch and combination meter connector.

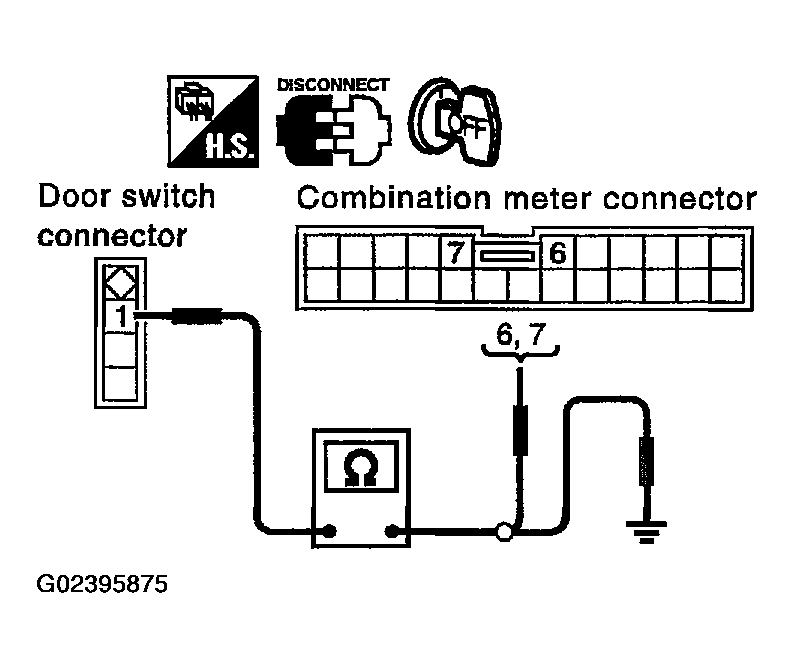

   3. Check continuity between door switch connector B17 (driver side), B410 (passenger side) terminals 1 and combination meter connector M19 terminals 7, 6.
      1. Driver side door
      2. 1 (G/B) - 7 (W) : Continuity should exist.
      3. Passenger side door
      4. 1 (P) - 6 (P) : Continuity should exist.
   4. Check continuity between door switch connector B17 (driver side), B410 (passenger side) terminals 1 and ground.
      1. 1 (G/B or P) - Ground : Continuity should not exist.

   OK or NG

   1. OK : GO TO  3 .
   2. NG : Repair or replace harness.
   Fig 5: Checking Continuity Between Door Switch & Combination Meter

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check door switch  .

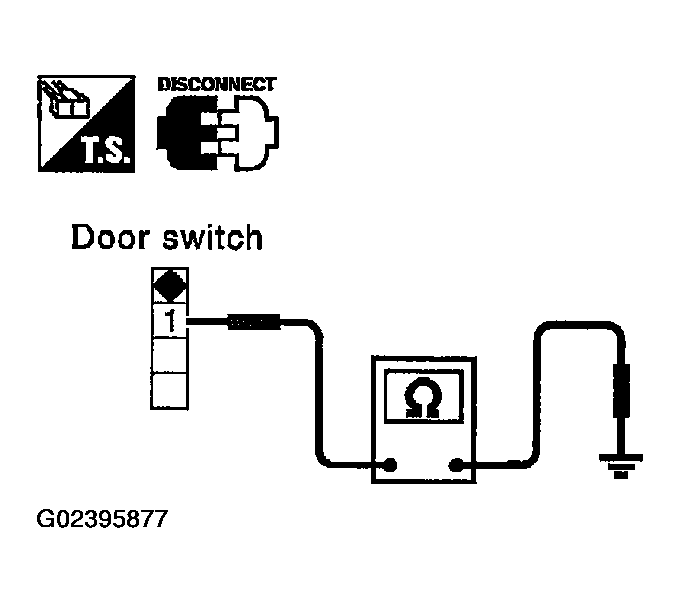

   Check continuity between door switch B17 (driver side) or B410 (passenger side) terminal 1 and ground part of door switch.

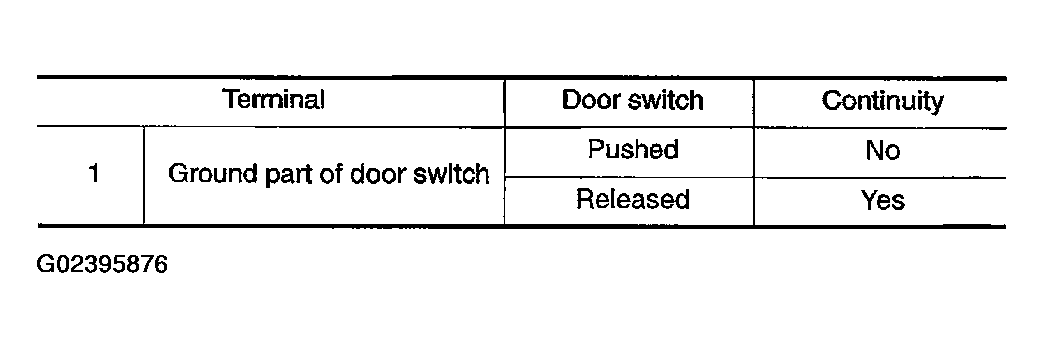

   Fig 6: Terminal Continuity Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK : GO TO  4 .
   2. NG : Replace door switch.
   Fig 7: Checking Continuity Between Door Switch & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check combination meter output signal  .
   1. Connect combination meter connector.

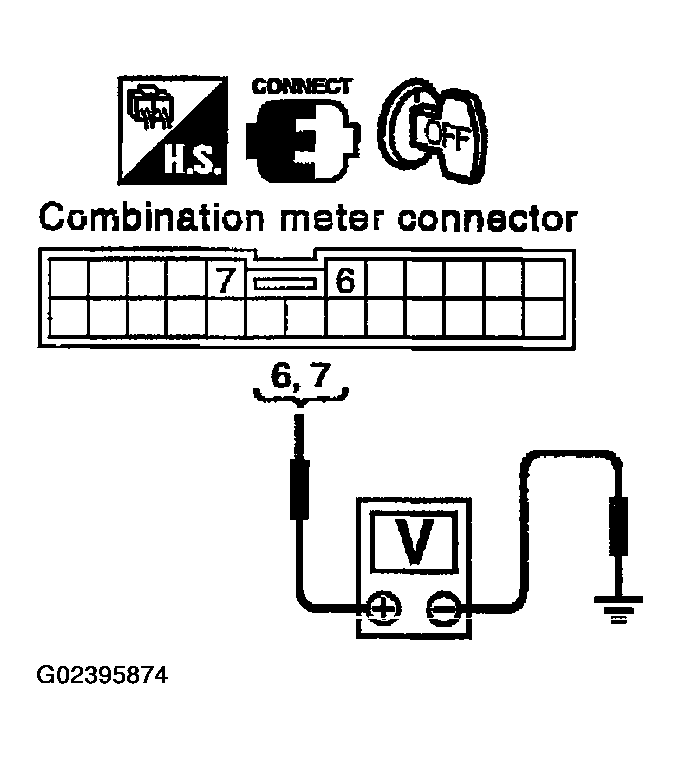

   2. Check voltage between combination meter connector M19 terminals 6, 7 and ground.
      Fig 8: Checking Voltage At Combination Meter

      Courtesy of NISSAN MOTOR CO., U.S.A.
      1. 6 (P) - Ground : Approx. 5
      2. 7 (W) - Ground : Approx. 5

   OK or NG

   1. OK : Check harness connection.
   2. NG : Replace combination meter.
