Check Door Switch (Without Navigation System)

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Check door switch input signal .
With CONSULT-II

Check door switches ("DOOR SW-DR"and "DOOR SW-AS") in "DATA MONITOR"mode with CONSULT-II.

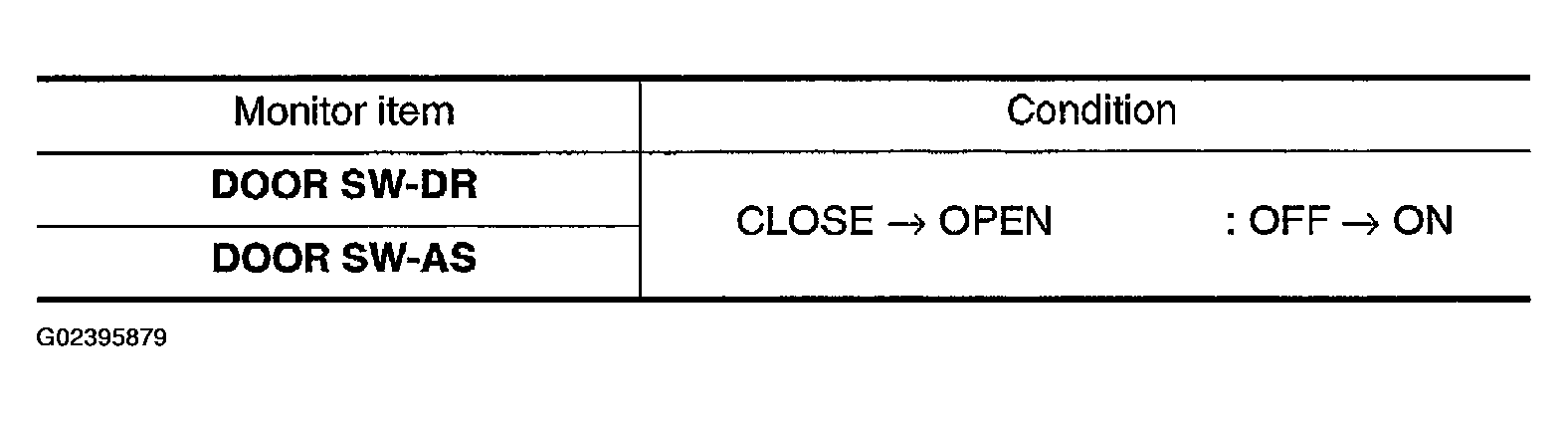

Fig 1: Displaying Monitor Item Condition
Courtesy of NISSAN MOTOR CO., U.S.A.

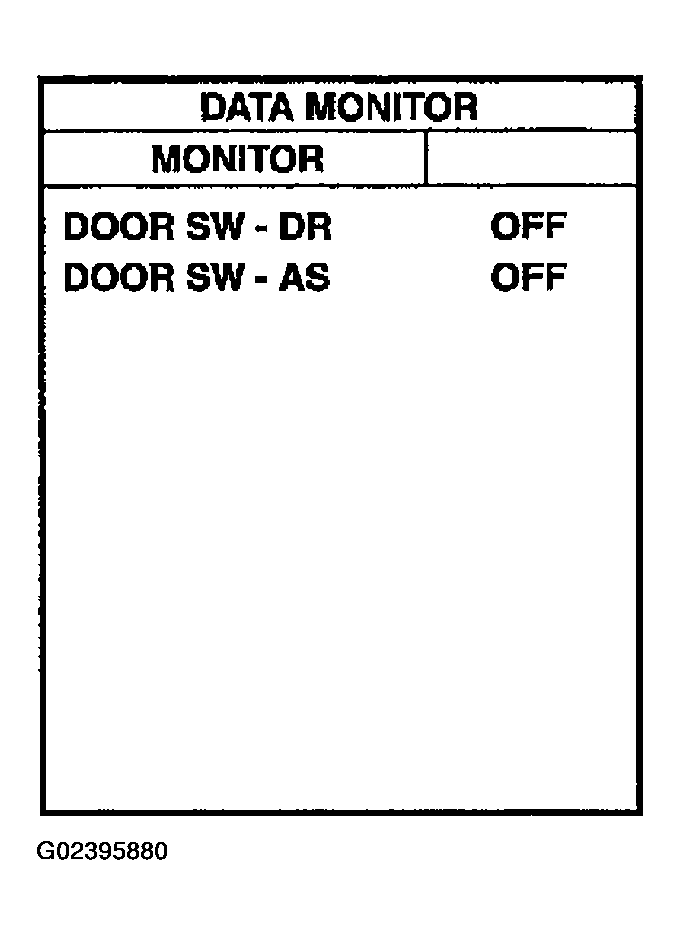

Fig 2: Displaying DATA MONITOR Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connectors B4 (driver side), M1 (passenger side) terminals 62, 12 and ground.

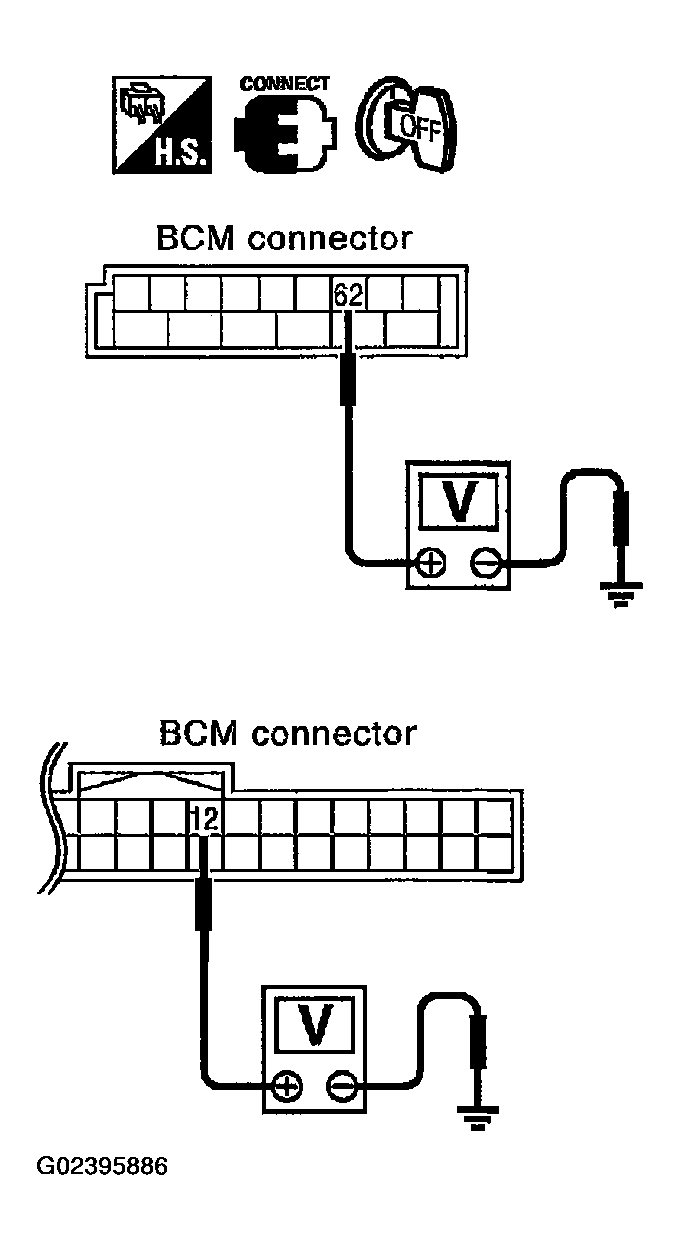

Fig 3: Checking Voltage At BCM Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.

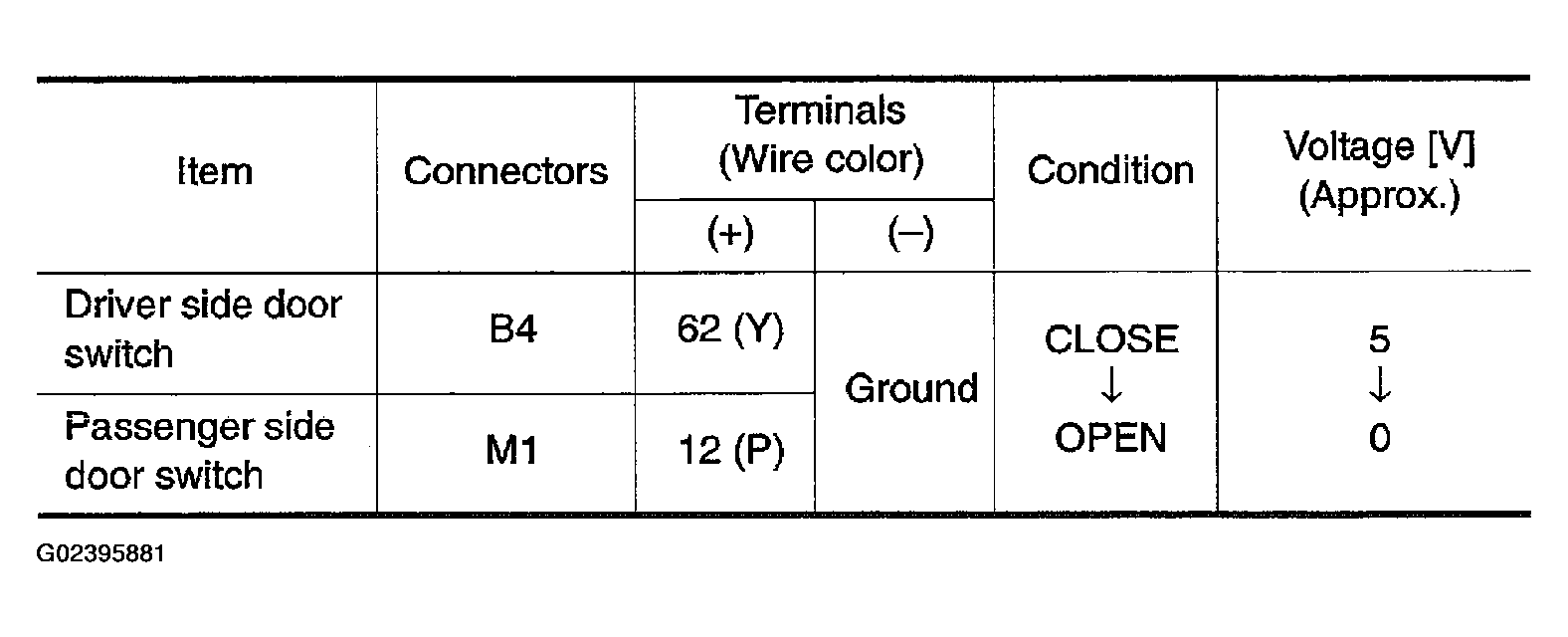

Fig 4: Displaying Terminal Voltage Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : Door switch circuit is OK.
2. NG : GO TO 2 .
Check door switch circuit .
1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between door switch connector B17 (driver side), B410 (passenger side) terminals 1 and BCM connector B4, M1 terminals 62, 12.
  1. Driver side door
  2. 1 (G/B) - 62 (Y) : Continuity should exist.
  3. Passenger side door
  4. 1 (P) - 12 (P) : Continuity should exist.
4. Check continuity between door switch connector B17 (driver side), B410 (passenger side) terminals 1 and ground.

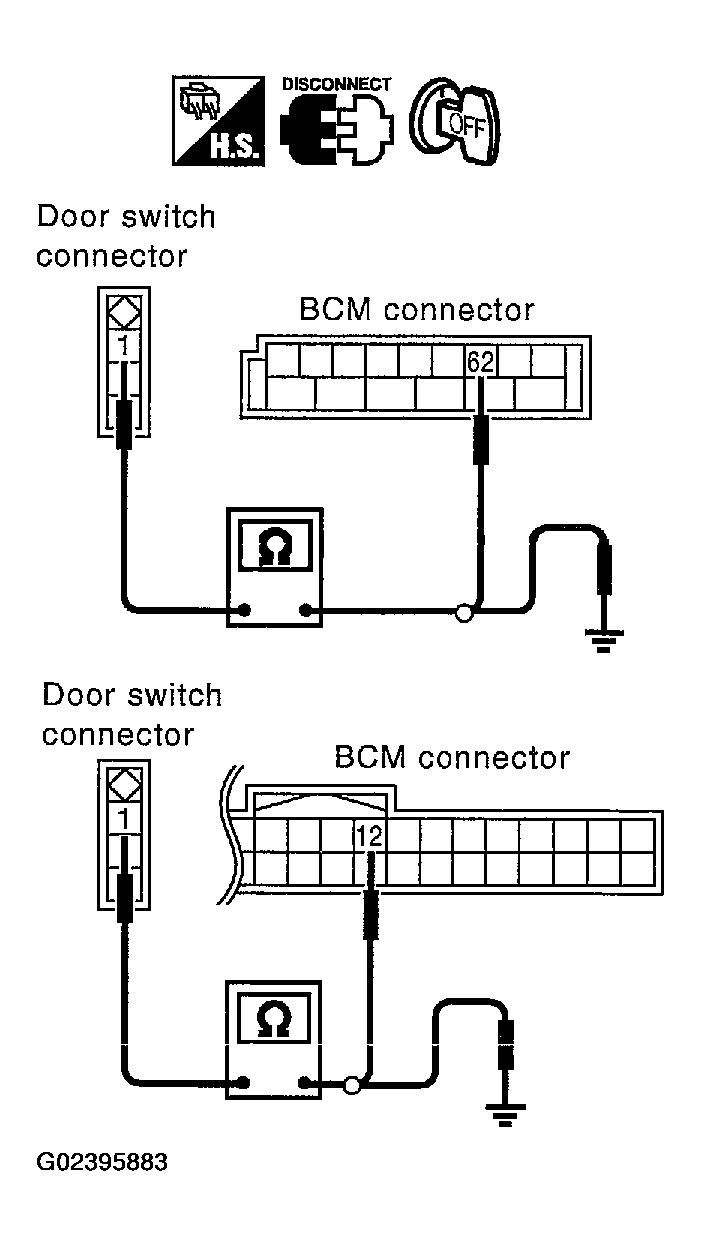

  Fig 5: Checking Continuity Between Door Switches And BCM
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. 1 (G/B or P) - Ground : Continuity should not exist.
OK or NG
1. OK : GO TO 3 .
2. NG : Repair or replace harness.
Check door switch .
Check continuity between door switch B17 (driver side) or B410 (passenger side) terminal 1 and ground part of door switch.

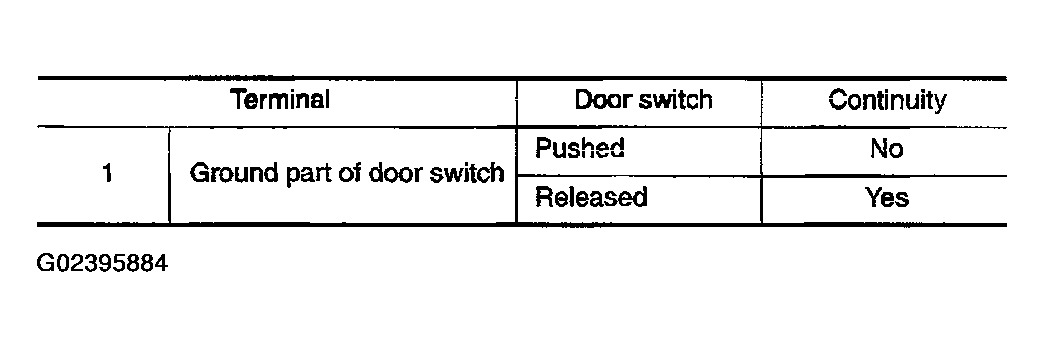

Fig 6: Displaying Terminal Continuity Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 4 .
2. NG : Replace door switch.
Fig 7: Checking Door Switch Continuity To Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
Check door switch input signal .
1. Connect BCM connector.
2. Check voltage between BCM connectors B4 (driver side), M1 (passenger side) terminals 62, 12 and ground.

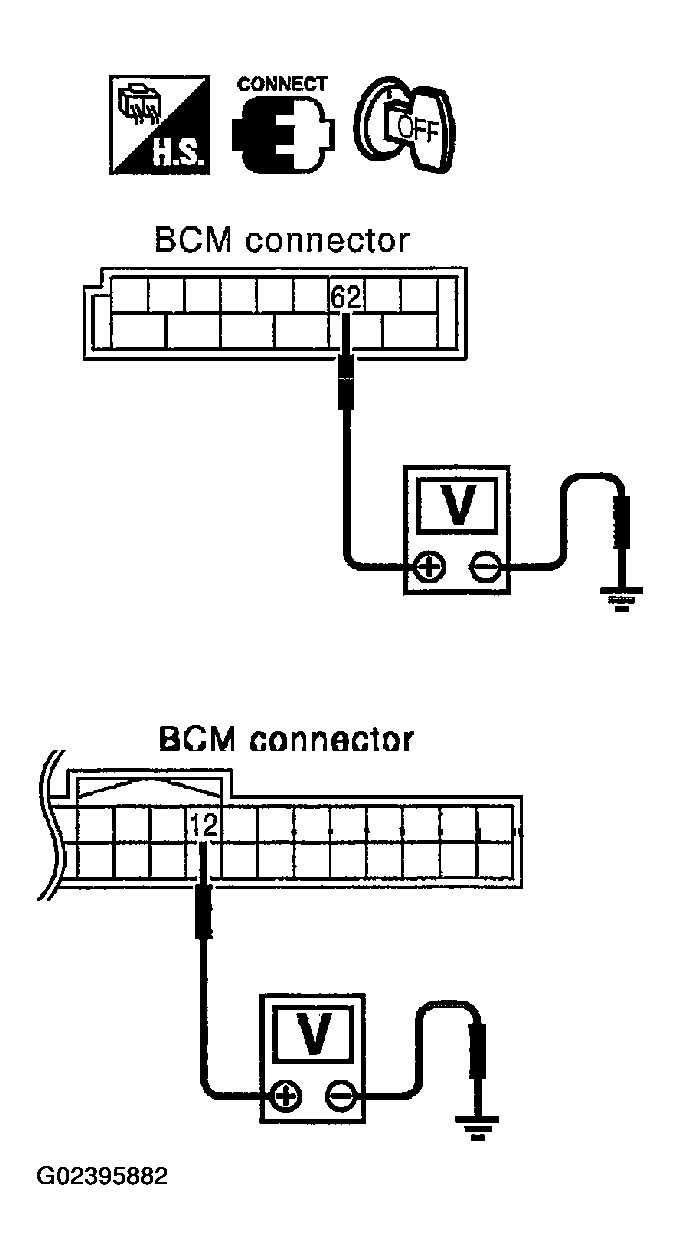

  Fig 8: Checking Voltage At BCM Connectors
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. 62 (Y) - Ground : Approx. 5V
  2. 12 (Y) - Ground : Approx. 5V
OK or NG
1. OK : Check harness connection.
2. NG : Replace BCM.
