Multi Remote Ent

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II"and "CONSULT-II CONVERTER"to the data link connector.

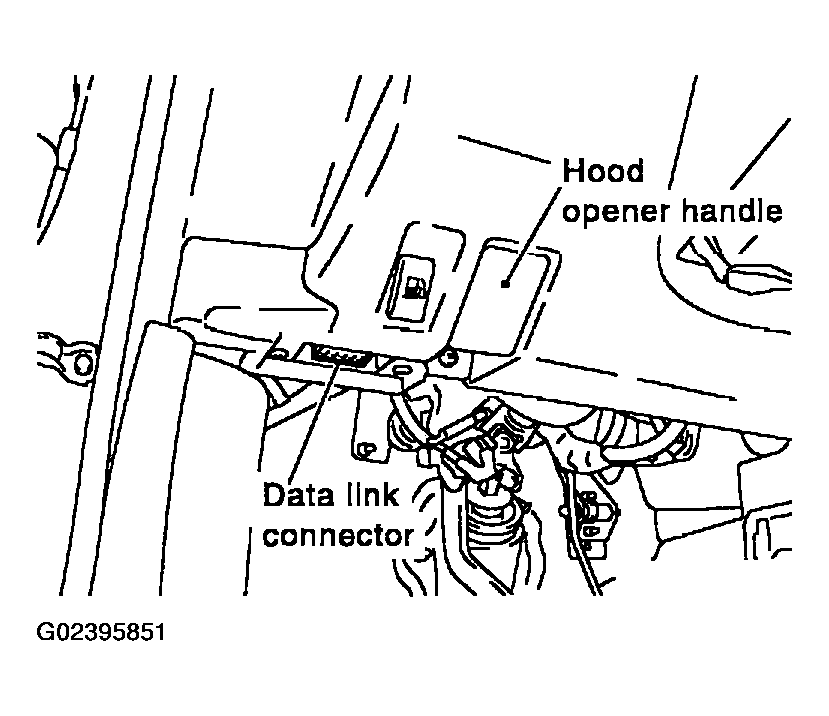

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

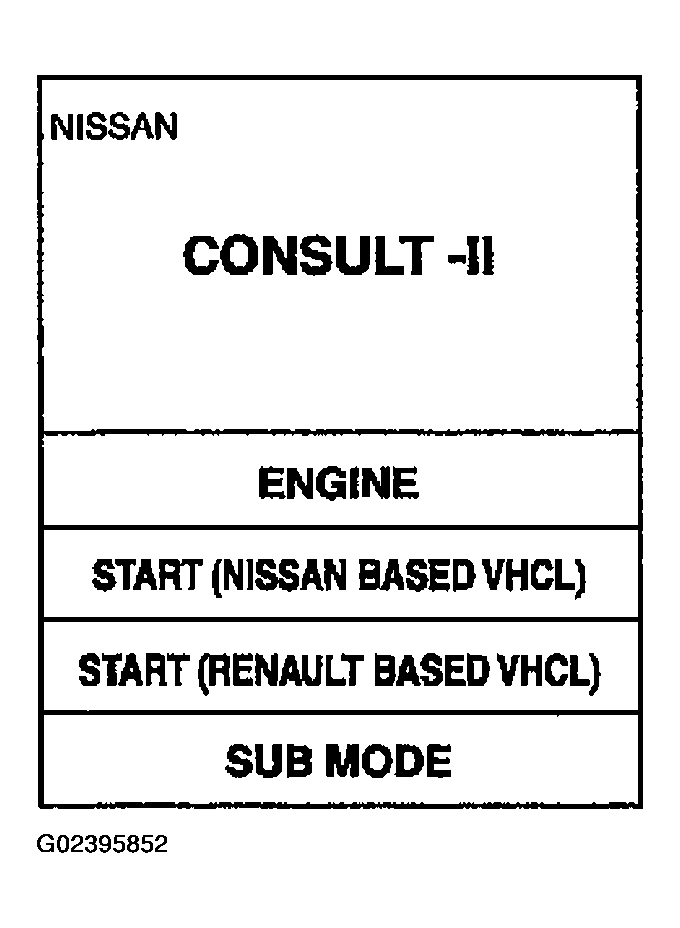

Fig 2: Displaying CONSULT-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM"is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

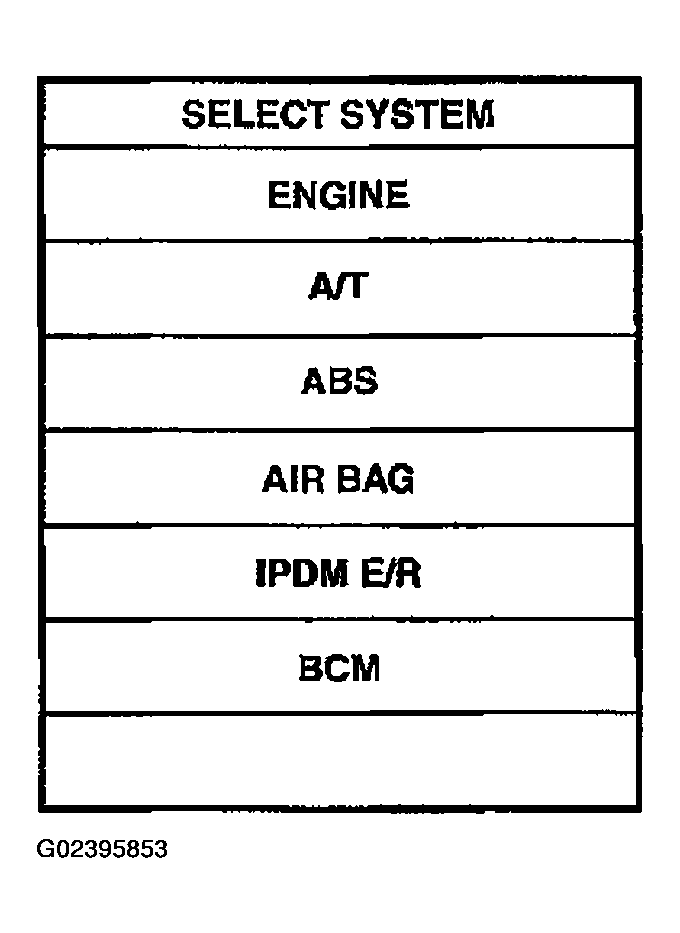

Fig 3: Displaying SELECT SYSTEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

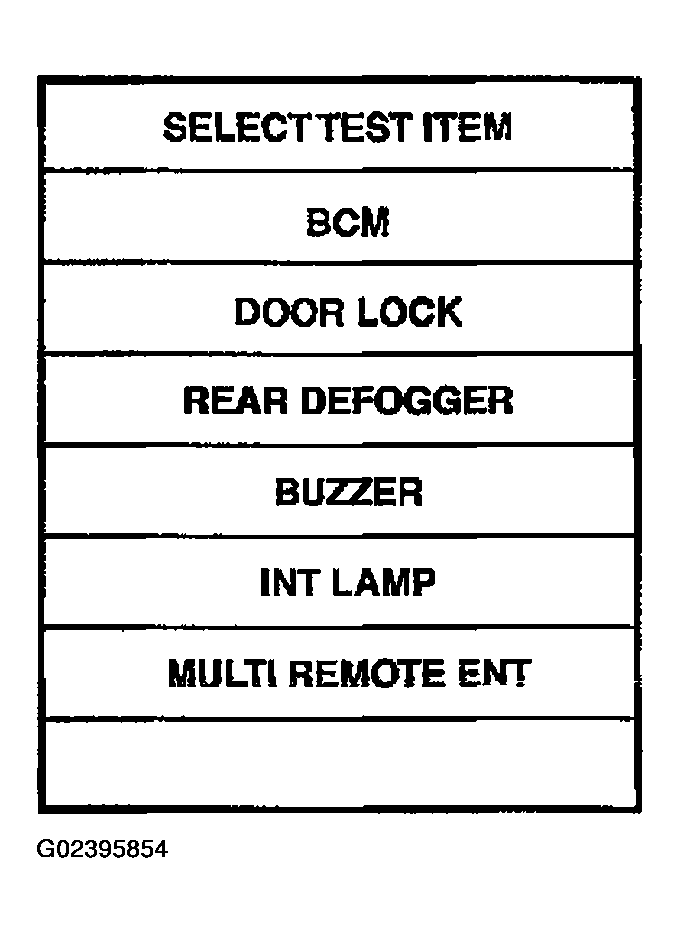

Fig 4: Displaying SELECT TEST ITEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"WORK SUPPORT", "DATA MONITOR"and "ACTIVE TEST"are available.

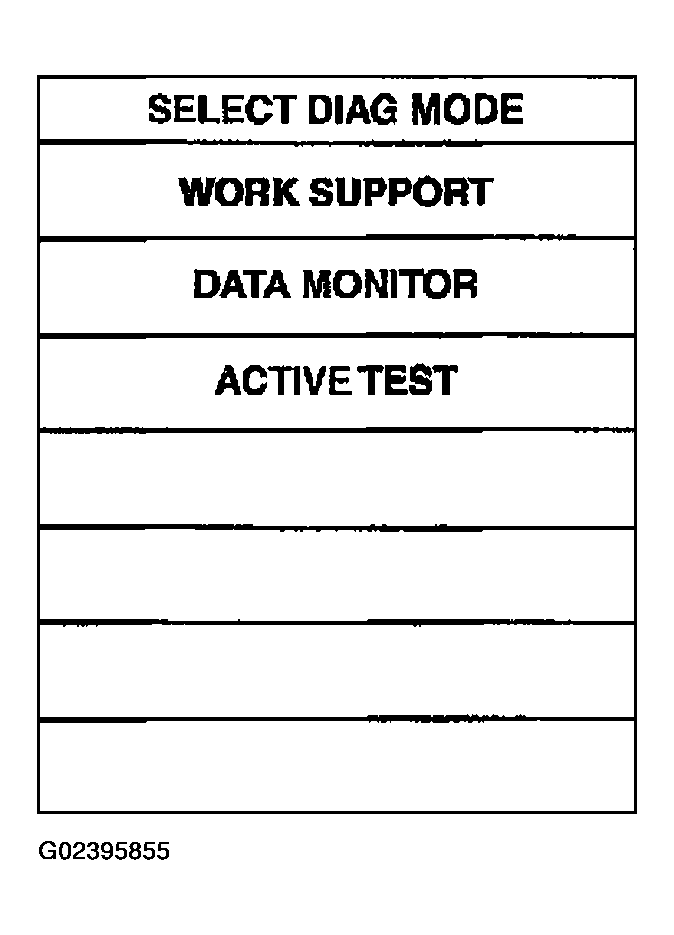

Fig 5: Displaying SELECT DIAG MODE Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
