Terminals And Reference Value For IPDM E/R
WARNING:
This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

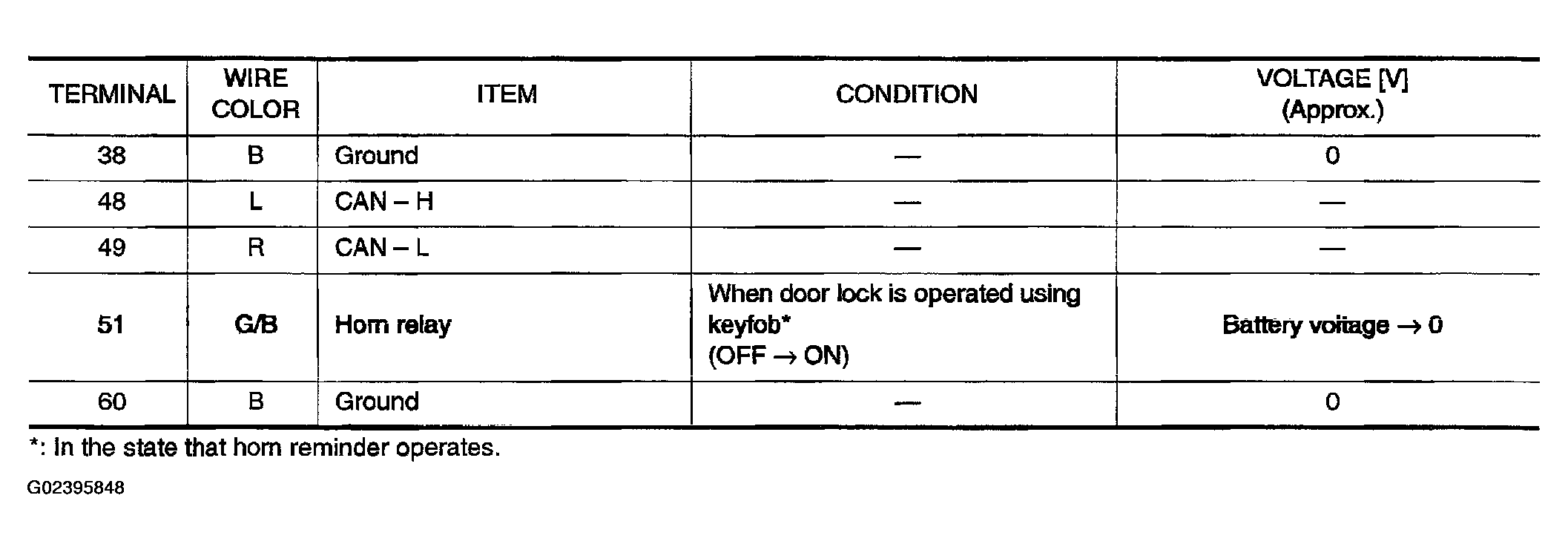

Fig 1: Displaying IPDM E/R Terminal Reference Values
Courtesy of NISSAN MOTOR CO., U.S.A.
